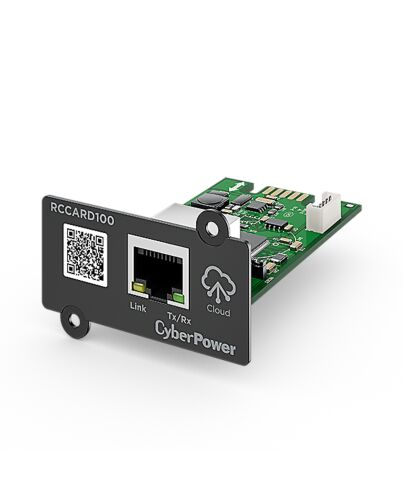

CyberPower RCCARD100 network card Internal Ethernet 100 Mbit/s
£50.38
CyberPower RCCARD100, Internal, Wired, Ethernet, 100 Mbit/s, Black, Green, Metallic
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
CyberPower RCCARD100 is an optional management add-on to specific CyberPower UPS series. By inserting the card into the expansion slot on the UPS, users can add the UPS to the PowerPanel® Cloud system, thus enabling remote monitoring and management of the UPS, through a secure web portal or mobile app.
The card is plug-and-play design and features hot-swappable capability, allowing quick and easy installation without interrupting the operation of the UPS. In addition, the card supports user-upgradeable firmware, so users are able to keep the functionality up-to-date with ease.
The card is plug-and-play design and features hot-swappable capability, allowing quick and easy installation without interrupting the operation of the UPS. In addition, the card supports user-upgradeable firmware, so users are able to keep the functionality up-to-date with ease.
Key Features
- UPS Management through Cloud
- Plug-and-play Installation
- RoHS Compliant
- QR Code for Quick Setup
- User-upgradeable Firmware
Specifications
Ports & interfaces
Connectivity technology*
Wired
Interface*
Ethernet
Ethernet LAN (RJ-45) ports
1
Network
Maximum data transfer rate*
100 Mbit/s
Networking standards*
IEEE 802.3, IEEE 802.3u
Ethernet LAN
Yes
Ethernet interface type
Fast Ethernet
Ethernet LAN data rates
10,100 Mbit/s
Cabling technology
10/100BaseT(X)
Design
Component for*
PC
Product colour
Black, Green, Metallic
Internal*
Yes
Plug and Play
Yes
LED indicators
TX / RX, Link
Country of origin
China
Certification
CE, FCC Class B, RoHS
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operational conditions
Storage temperature (T-T)
-10 - 50 °C
Operating relative humidity (H-H)
0 - 90%
Storage relative humidity (H-H)
0 - 95%
Sustainability
Sustainability compliance
Yes
Weight & dimensions
Width
54 mm
Depth
76.5 mm
Height
36.1 mm
Weight
31 g
Packaging data
Package width
170 mm
Package depth
60 mm
Package height
165 mm
Package weight
300 g
Technical details
Compliance certificates
RoHS
Logistics data
Harmonized System (HS) code
8473302000
Additional Information
| EAN/UPC | 4712856274363 |
|---|---|
| MPN | RCCARD100 |
