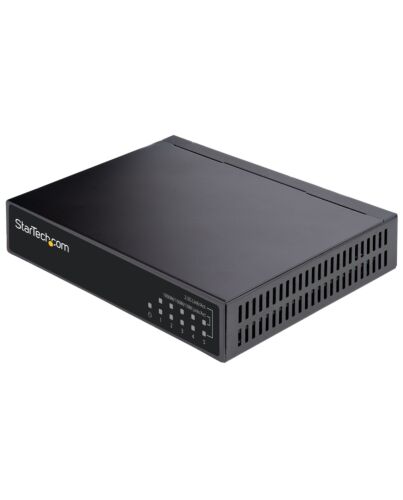

StarTech.com Unmanaged 2.5G Switch - 5 Port Gigabit Switch - 2.5GBASE-T Unmanaged Ethernet Switch - Ethernet Splitter - Din Rail or Wall Mount - Multi-Gigabit - Auto-MDIX - 9K Jumbo
£121.92
StarTech.com Unmanaged 2.5G Switch - 5 Port Gigabit Switch - 2.5GBASE-T Unmanaged Ethernet Switch - Ethernet Splitter - Din Rail or Wall Mount - Multi-Gigabit - Auto-MDIX - 9K Jumbo, Unmanaged, 2.5G Ethernet (100/1000/2500), Full duplex, Wall mountable
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
2.5G switch | Multi-Gigabit | 5 port | Unmanaged | Cat5e/Cat6/Cat6a cabling | Wall mount kit | K-slot
The unmanaged network switch offers five multi-speed Ethernet ports (10/100/1000/2500 Mbps) in a compact and durable all-metal casing while remaining silent and energy-efficient (IEEE 802.3az). The network switch is the ideal solution to dramatically speed up your network to support 2.5GBASE-T, and being an unmanaged switch, you can set it up in no time.
Enhance your network
This network switch allows you to use existing Cat5e/Cat6/Cat6a cabling to increase the bandwidth to 2.5 Gbps, ideal for large file transfers, streaming, network sharing/storage, or other bandwidth-intensive applications. Auto-negotiation detects the highest supported speeds on your devices for maximum performance and compatibility. You can also use it in combination with Wi-Fi 6 (802.11ax) wireless access points to expand your network range, bandwidth, and accessibility.
Secure and versatile
The 2.5G switch offers a security K-slot for more permanent and secure setups (cable not included). The unintrusive design and small dimensions (6.1x4.7x1.1 inch / 155x120x30 mm) make it easily adaptable to any deployment and has clear diagnostic LEDs that show the status of the devices at a glance. Additional features such as 9K jumbo frames, full-duplex, 16K MAC address table, QoS IEEE 802.1p, and wall mounting kit give you the flexibility to use it in a multitude of scenarios.
The DS52000 is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
The unmanaged network switch offers five multi-speed Ethernet ports (10/100/1000/2500 Mbps) in a compact and durable all-metal casing while remaining silent and energy-efficient (IEEE 802.3az). The network switch is the ideal solution to dramatically speed up your network to support 2.5GBASE-T, and being an unmanaged switch, you can set it up in no time.
Enhance your network
This network switch allows you to use existing Cat5e/Cat6/Cat6a cabling to increase the bandwidth to 2.5 Gbps, ideal for large file transfers, streaming, network sharing/storage, or other bandwidth-intensive applications. Auto-negotiation detects the highest supported speeds on your devices for maximum performance and compatibility. You can also use it in combination with Wi-Fi 6 (802.11ax) wireless access points to expand your network range, bandwidth, and accessibility.
Secure and versatile
The 2.5G switch offers a security K-slot for more permanent and secure setups (cable not included). The unintrusive design and small dimensions (6.1x4.7x1.1 inch / 155x120x30 mm) make it easily adaptable to any deployment and has clear diagnostic LEDs that show the status of the devices at a glance. Additional features such as 9K jumbo frames, full-duplex, 16K MAC address table, QoS IEEE 802.1p, and wall mounting kit give you the flexibility to use it in a multitude of scenarios.
The DS52000 is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
Key Features
- BOOST YOUR BANDWIDTH: The 5 port network switch supports four speeds 10/100/1000/2500 Mbps over Ethernet Cat5e/Cat6/Cat6a cable. Reduce wait times for content sharing, media streaming, 802.11ax access points, NAS, or other high bandwidth applications
- HASSLE-FREE: Quickly and easily add support for up to 2.5GBASE-T speeds for enhanced data transfer rates. The unmanaged switch requires no setup, automatically determines the best speed for the devices connected, and has clear front-facing diagnostic LEDs
- SPECIFICATIONS: 5 port multi-gigabit switch / 10/100/1000/2500 Mbps auto-negotiation / Unmanaged / 0C to 50C operating temp. / All-metal housing / 9K Jumbo frame support / Wall mounting kit / Diagnostic LEDs / Fanless / Power adapter included (12VDC/1A)
- FLEXIBLE DEPLOYMENT: The compact, all-metal case design uses minimal space on your desk or use the included kit to mount it to a wall. For enhanced security, the LAN switch has a k-slot as well. The non-disruptive fanless design makes it ideal for SoHo
- STARTECH.COM ADVANTAGE: IT professionals' choice for over 30 years, this unmanaged ethernet switch is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance
Specifications
Management features
Switch type*
Unmanaged
Quality of Service (QoS) support
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity*
5
Basic switching RJ-45 Ethernet ports type*
2.5G Ethernet (100/1000/2500)
2.5G Ethernet (copper) ports quantity
5
Power connector
DC-in jack
Network
Networking standards*
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
10G support*
No
Copper ethernet cabling technology
10BASE-T, 1000BASE-TX, 2500BASE-T
Cable types supported
Cat5e, Cat6, Cat6a
Full duplex
Yes
Auto MDI/MDI-X
Yes
Data transmission
Switching capacity*
2.5 Gbit/s
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
9000
Design
Rack mounting*
No
Product colour
Black
Housing material
Steel
LED indicators
Yes
Wall mountable
Yes
Performance
Maximum cable length
100 m
Power
Power source*
AC/DC
Power supply included*
Yes
AC input voltage
100 - 240 V
Input current
0.5 A
Power
Output voltage
12 V
Output current
1 A
Power plug type
Type M
Power over Ethernet (PoE)
Power over Ethernet (PoE)*
No
Operational conditions
Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
10 - 90%
Weight & dimensions
Width
120 mm
Depth
145 mm
Height
30 mm
Weight
600 g
Packaging content
Quick start guide
Yes
Packaging data
Wall mounting kit
Yes
AC adapter included
Yes
Package width
285 mm
Package depth
135 mm
Package height
70 mm
Package weight
700 g
Certificates
Compliance certificates
CE, RoHS
Logistics data
Master (outer) case width
305 mm
Master (outer) case length
370 mm
Master (outer) case height
290 mm
Harmonized System (HS) code
85176990
Products per master (outer) case
10 pc(s)
Additional Information
| EAN/UPC | 65030893183 |
|---|---|
| MPN | DS52000 |
