Data Input Devices

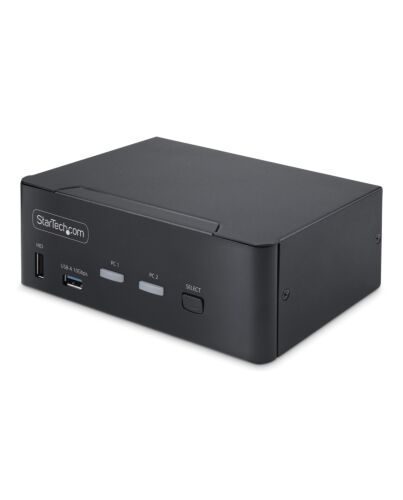

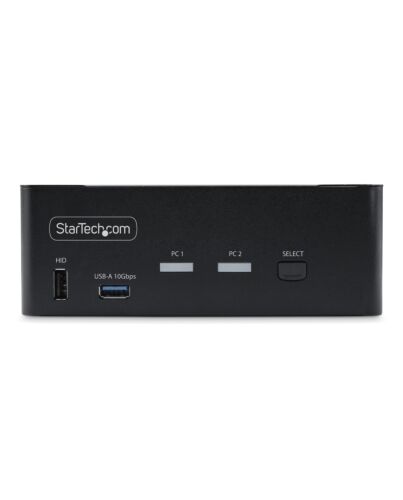

StarTech.com P2CDD143-KVM-SWITCH KVM switch Black
£445.81
StarTech.com P2CDD143-KVM-SWITCH, 7680 x 4320 pixels, 8K Ultra HD, 36 W, Black
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Share a mouse, keyboard, USB (10Gbps) Hub, and dual 8K 60Hz DisplayPort monitors between two DisplayPort-enabled computers
This dual-monitor KVM switch allows users to switch between two USB and DisplayPort-enabled desktops. It allows for sharing of dual-8K 60Hz DisplayPort monitors, a keyboard and mouse, and two USB 10Gbps devices.
Dual-8K 60Hz Displays & USB 10Gbps Hub Ports
This TAA-compliant KVM Switch supports dual 8K 60Hz DisplayPort monitors, making it ideal for working with high-resolution graphics or video. It also features two USB 3.2 Gen 2 (10Gbps) hub ports for fast data transfer, and four USB HID ports for the keyboard, mouse, and two additional USB peripherals.
Fast Switching with USB Emulation
USB emulation technology enables faster keyboard, video, and mouse switching compared to traditional KVMs. USB Emulation also ensures compatibility with combo keyboards/mice and keyboards featuring extra function keys.
Switching Options
This Universal KVM Switch offers hotkey or push-button switching options. Hotkeys allow for independent switching of audio, enabling audio playback from one computer while controlling the other. An audible buzzer confirms hotkey input, and LEDs provide a visual status of the selected host.
The StarTech.com Advantage
This dual-monitor KVM switch allows users to switch between two USB and DisplayPort-enabled desktops. It allows for sharing of dual-8K 60Hz DisplayPort monitors, a keyboard and mouse, and two USB 10Gbps devices.
Dual-8K 60Hz Displays & USB 10Gbps Hub Ports
This TAA-compliant KVM Switch supports dual 8K 60Hz DisplayPort monitors, making it ideal for working with high-resolution graphics or video. It also features two USB 3.2 Gen 2 (10Gbps) hub ports for fast data transfer, and four USB HID ports for the keyboard, mouse, and two additional USB peripherals.
Fast Switching with USB Emulation
USB emulation technology enables faster keyboard, video, and mouse switching compared to traditional KVMs. USB Emulation also ensures compatibility with combo keyboards/mice and keyboards featuring extra function keys.
Switching Options
This Universal KVM Switch offers hotkey or push-button switching options. Hotkeys allow for independent switching of audio, enabling audio playback from one computer while controlling the other. An audible buzzer confirms hotkey input, and LEDs provide a visual status of the selected host.
The StarTech.com Advantage
Specifications
Ports & interfaces
Number of computers controlled*
2
Keyboard port type*
USB
Mouse port type*
USB
Video port type*
DisplayPort
DisplayPorts quantity
4
DisplayPort version
1.4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
Console ports*
3.5mm headphone, DisplayPort, USB A
Console USB ports quantity
3
Console DisplayPorts ports quantity
2
USB hub
Yes
USB 2.0 ports quantity
1
Audio connections
Yes
Headphone outputs
3
DC-in jack
Yes
Performance
HD type*
8K Ultra HD
Maximum resolution*
7680 x 4320 pixels
Data transfer rate (max)
10 Gbit/s
Scan interval
3,8,15,30 s
High Dynamic Range (HDR) supported
Yes
Number of users
1 user(s)
Maximum refresh rate
144 Hz
Chipset
Genesys Logic - GL3590
Number of displays supported
2
Design
Rack mounting*
No
Product colour*
Black
Housing material
Metal
LED indicators
Yes
Push button
Yes
Hot keys
Yes
Mean time between failures (MTBF)
168000 h
Display
Built-in display*
No
On Screen Display (OSD)
No
Power
Input voltage
100 - 240 V
Input current
1 A
Output voltage
12 V
Output current
3 A
Power consumption (typical)
36 W
Power plug type
Type M
Compatible power plug types
AU, EU, UK, US
Sustainability
Compliance certificates
RoHS, Trade Agreements Act (TAA)
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
100 mm
Depth
160 mm
Height
60 mm
Weight
800 g
Packaging data
Package width
238 mm
Package depth
184 mm
Package height
89 mm
Package weight
1.4 kg
Packaging content
Cables included
USB Type-A to USB Type-C
Quick installation guide
Yes
Rubber feet
Yes
Other features
IP control
No
Additional Information
| EAN/UPC | 0065030907712 |
|---|---|
| MPN | P2CDD143-KVM-SWITCH |
| BRAND | STARTECH |
