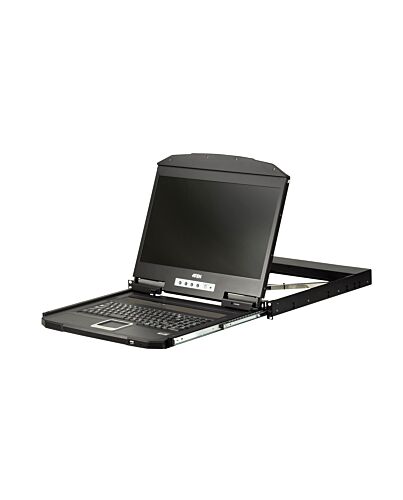

ATEN 1U Short Depth USB VGA Single Rail LCD
£1,018.26
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The CL3100 USB VGA LCD Console is a short depth single rail LCD KVM console featuring an 18.5" LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The short-depth design fits all 19" equipment cabinets, and is especially suitable for shallow racks. The CL3100 provides an ideal space-saving solution for special environments such as outside broadcast vans (OB vans) and compact control rooms.
1x CL3100 LCD KVM Console with Standard Rack Mount Kit
1x LIN5-23X5-X1BG USB VGA KVM Cable (VGA, USB, Audio; 1.8 m/6 ft)
1x LIN5-04A2-J15G Firmware Upgrade Cable
1x LIN2-418K-E12G Power Cord
1x User Instructions
1x CL3100 LCD KVM Console with Standard Rack Mount Kit
1x LIN5-23X5-X1BG USB VGA KVM Cable (VGA, USB, Audio; 1.8 m/6 ft)
1x LIN5-04A2-J15G Firmware Upgrade Cable
1x LIN2-418K-E12G Power Cord
1x User Instructions
Key Features
- Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- Integrated KVM Console with short depth single rail design and a 18.5” LED-backlit LCD monitor allows you to work in narrow spaces
- 18.5" LCD screen with resolution of 1366 x 768 @ 60Hz
- Supports an external console with USB / VGA connectors; supports input video resolutions up to 1920 x 1200 @ 60Hz
Specifications
Display
Display diagonal
47 cm (18.5")
Display resolution
1366 x 768 pixels
Display
TFT-LCD
Display brightness
250 cd/m²
Contrast ratio (typical)
1000:1
Viewing angle, horizontal
170°
Viewing angle, vertical
160°
On Screen Display (OSD)
Yes
Pixel pitch
0.3 x 0.3 mm
Aspect ratio
16:9
Display type
LCD
Response time
5 ms
Display number of colours
16.78 million colours
Technical details
Material
Metal, Plastic
Product colour
Black
Hot-Plug support
Yes
Operating relative humidity (H-H)
0 - 80%
Built-in KVM switch
Yes
Maximum resolution
1920 x 1200 pixels
Rack mounting
Yes
Key lock
Yes
Number of computers controlled
1
On/off switch
Yes
LED indicators
Yes
Compliance certificates
RoHS
Rack capacity
1U
Ports & interfaces
I/O ports
3.5 mm Audio Jack, SPHD
Keyboard port type
USB
Mouse port type
USB
Video port type
VGA
USB 2.0 Type-A ports quantity
3
Keyboard
Keyboard number of keys
105
Built-in touchpad
Yes
Keyboard language
US English
Keyboard
Keyboard layout
QWERTY
Hot keys
Yes
Certificates
Certification
UL 60950-1, CAN/CSA
Power
Power supply type
AC
Power consumption (typical)
14.1 W
AC adapter input voltage
100 - 240 V
AC adapter frequency
50/60 Hz
Input current
1 A
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Weight & dimensions
Width
477 mm
Height
42.8 mm
Depth
480.6 mm
Weight
10.2 kg
Packaging data
Package weight
12.1 kg
Package width
612 mm
Package depth
658 mm
Package height
135 mm
Packaging content
Cables included
AC, KVM
Manual
Yes
AC adapter included
Yes
Rack mount kit
Yes
Logistics data
Master (outer) case net weight
10.2 kg
Master (outer) case width
612 mm
Master (outer) case length
658 mm
Master (outer) case height
135 mm
Master (outer) case gross weight
12.1 kg
Products per master (outer) case
1 pc(s)
Additional Information
| EAN/UPC | 4719264646812 |
|---|---|
| MPN | CL3100NX |
