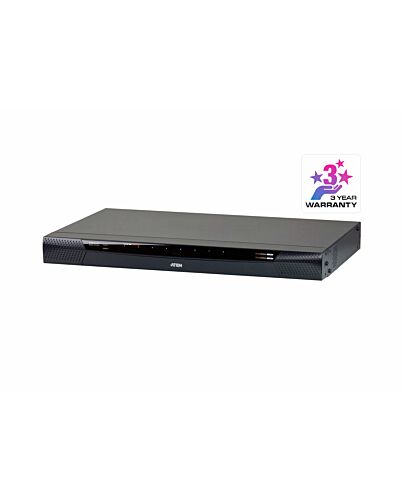

ATEN 8-Port 2-Bus CAT5e/6 KVM Over IP Switch, LUC (Laptop USB Console), with Audio & Virtual Media Support
£1,301.56
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Aten's new generation of KVM over IP switches – KN series allows local console access and remote over IP access for operators to monitor and access their entire data center over a network using a web-based browser. In addition, they offer out-of-band access with external modem support for BIOS-level troubleshooting when the network is down.
1x KN1108VA KVM over IP Switch
2x SA0142 Serial Adapters (RJ45-F to DB9-M; DTE to DCE)
2x LIN2-418K-E12G Power Cords
1x LIN6-04U1-M18G Laptop USB Console Cable
1x Rack Mount Kit
1x Foot Pad Set (4 pcs.)
1x User Instructions
1x KN1108VA KVM over IP Switch
2x SA0142 Serial Adapters (RJ45-F to DB9-M; DTE to DCE)
2x LIN2-418K-E12G Power Cords
1x LIN6-04U1-M18G Laptop USB Console Cable
1x Rack Mount Kit
1x Foot Pad Set (4 pcs.)
1x User Instructions
Key Features
- High video resolution – up to 1920 x 1200* @ 60Hz for local and remote sessions
- Panel Array Mode available to both local console operators and remote access users
- High grade security – supports FIPS 140-2 level 1 security standards
- Laptop USB Console (LUC) – A dedicated USB port directly connects to a laptop for easy console operation
Specifications
Ports & interfaces
Number of computers controlled*
8
Keyboard port type*
USB, PS/2
Mouse port type*
USB, PS/2
Video port type*
VGA
Console ports*
USB A, Mini-DIN
Console USB ports quantity
2
USB hub
Yes
USB 2.0 Type-A hub ports quantity
3
USB connector type
Mini-USB B, USB Type-A
PS/2 ports quantity
2
Serial port type
RJ-45
Serial ports quantity
2
Audio connections
Yes
Headphone outputs
1
Number of microphone inputs
1
Network
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
14
Cabling technology
10/100/1000Base-T(X)
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Security algorithms
802.1x RADIUS, FIPS 140-2, RSA, SSL/TLS
Performance
Maximum resolution*
1920 x 1200 pixels
Scan interval
1,255 s
Number of users
64 user(s)
Firmware upgradeable
Yes
Design
Rack mounting*
No
Rack capacity
1U
Product colour*
Black
Housing material
Metal
Wired remote switch
Yes
Cascadable
Yes
LED indicators
Yes
Push button
Yes
Hot keys
Yes
Display
Built-in display*
No
Power
Power source
AC
Input voltage
100 - 240 V
AC input frequency
50 / 60 Hz
Input current
1 A
System requirements
Windows operating systems supported
Yes
Linux operating systems supported
Yes
Mac operating systems supported
Yes
Sustainability
Compliance certificates
RoHS
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
438.4 mm
Depth
287.8 mm
Height
44 mm
Weight
4.37 kg
Packaging data
Package width
338 mm
Package depth
515 mm
Package height
155 mm
Package weight
5.58 kg
Packaging content
Cables included
AC
Manual
Yes
Rack mount kit
Yes
Logistics data
Master (outer) case net weight
4.37 kg
Harmonized System (HS) code
85176200
Master (outer) case width
338 mm
Master (outer) case length
515 mm
Master (outer) case height
155 mm
Master (outer) case gross weight
5.58 kg
Products per master (outer) case
1 pc(s)
Additional Information
| EAN/UPC | 4719264645303 |
|---|---|
| MPN | KN1108VA |
| BRAND | ATEN |
