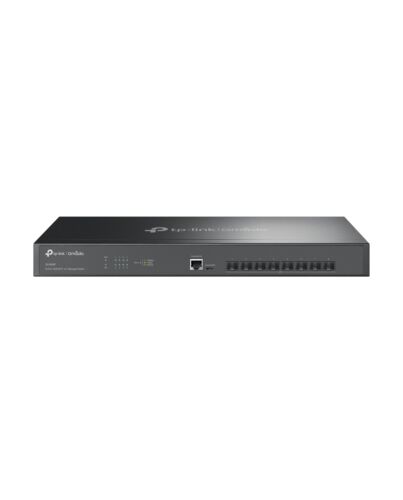

TP-Link Omada 8-Port 10GE SFP+ L2+ Managed Switch

£207.64
TP-Link Omada 8-Port 10GE SFP+ L2+ Managed Switch, Managed, L2/L3, Rack mounting
In stock
  • Immediately available
  • Discreet Packaging
  • Free Shipping

Product Details

Description

TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.

Key Features

  • 8× 10 Gbps SFP+ slots enable high-bandwidth connectivity
  • 160 Gbps Switching Capacity
  • Centralized cloud management via the web or the Omada app†
  • Standalone management via web, CLI, SNMP, and RMON
  • Static Routing helps route internal traffic for higher efficiency
  • VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
  • ERPS supports rapid protection and recovery in a ring topology
  • Fanless design for silent operation
  • Durable metal casing and rack-mountable design

Specifications

Management features

Switch type*
Managed
Switch layer
L2/L3
Quality of Service (QoS) support
Yes
Web-based management
Yes
Cloud-managed
Yes
Traffic classification
Yes
ARP inspection
Yes
Configuring Location Settings (CLI)
Yes
System event log
Yes
MIB support
RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213

Ports & interfaces

Basic switching RJ-45 Ethernet ports type*
No
SFP+ module slots quantity
8
Console port
RJ-45/micro-USB
Power connector
DC-in jack

Network

Networking standards*
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x
10G support*
Yes
Port mirroring
Yes
IP routing
Yes
Flow control support
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Rate limiting
Yes
Spanning tree protocol
Yes
Head-of-line (HOL) blocking
Yes
VLAN support
Yes
Virtual LAN features
Private VLAN, Protocol-based VLAN, Voice VLAN
Number of VLANs
4000

Data transmission

Switching capacity*
160 Gbit/s
Forwarding rate
119.04 Mpps
MAC address table*
32000 entries
Number of queues
8
Static route
Yes
Jumbo frames support
Yes
Jumbo frames
9000
Packet buffer memory
16 MB

Security

DHCP features
DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Access Control List (ACL)
Yes
IGMP snooping
Yes
Security algorithms
HTTPS, SSH, SSH-2, SSL/TLS
MAC address filtering
Yes
Static port security
Yes

Security

SSH/SSL support
Yes
Loop protection
Yes
BPDU filtering/protection
Yes
IP-MAC-Port binding
Yes
Authentication
Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication
Authentication type
AAA, TACACS+
Queue scheduling algorithms
SP, WRR+SP, Weighted Round Robin (WRR)

Multicast features

Multicast support
Yes
Multicast Listener Discovery (MLD) snooping

Protocols

Management protocols
SNMPv1/v2c/v3, SNTP
IPv4 & IPv6 features
IPv6 Telnet, IPv6 ping, IPv6 tracert

Design

Rack mounting*
Yes
Product colour
Black
LED indicators
Yes

Power

Power source*
AC
Power supply included*
Yes
AC input voltage
220 V
AC input frequency
50/60 Hz
Power consumption (max)
15.46 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)*
No

Operational conditions

Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
52.75 BTU/h

Weight & dimensions

Width
440 mm
Depth
180 mm
Height
44 mm

Packaging content

Cables included
AC
Quick start guide
Yes
Manual
Yes
Rack mount kit
Yes

Packaging data

Package type
Box

Certificates

Certification
CE, FCC, RoHS

Additional Information

More Information
EAN/UPC 6935364006457
MPN SX3008F
BRAND TP-LINK
