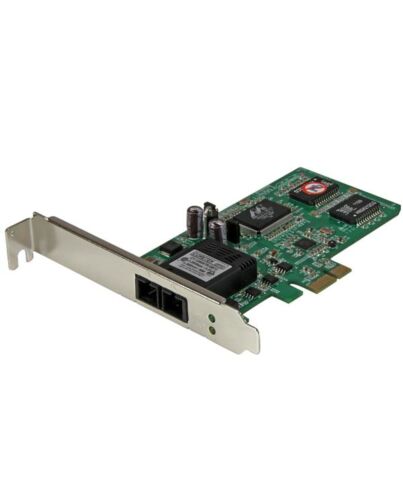

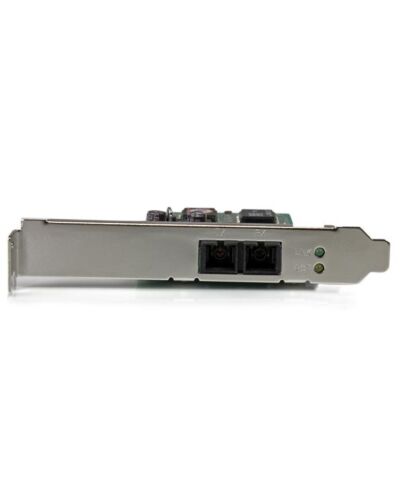

StarTech.com PCI Express (PCIe) Gigabit Ethernet Multie SC Fiber Network Card Adapter NIC - 550m
£132.47
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Connect a PCI Express-based desktop or rackmount PC directly to a Gigabit multie SC fiber optic network
The PEX1000MMSC2 PCIe Gigabit Fiber Network Card lets you connect a desktop PC directly to a fiber optic network, by adding a multie SC fiber port to your computer or server through an available PCI Express slot.
Perfect for integrating into new or existing fiber infrastructure over great distances, this card delivers full Gigabit bandwidth to your computer up to 550 meters away f your network source, using multie 50/125 micron duplex SC fiber cable. Plus, for a wider spectrum of compatibility, this versatile card offers fiber integration with a computer up to 220 meters away when deployed to network frameworks consisting of multie 62.5/125 micron cabling.
With fiber connectivity, your network is not susceptible to electronic interference, which can be problematic with standard RJ45 copper networks, making this fiber card ideal for secure network setups.
Plus, the card is equipped with a standard profile bracket and includes a low-profile/half-height bracket, making it easy to install in small form-factor computers or 1U server and rackmount applications.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Fiber network infrastructure is reliable and secure, with no electagnetic interference and less data corruption, through a direct fiber-to-desktop connection
- Fits into full or low-profile/small form factor (SFF) systems, with a dual profile design
The PEX1000MMSC2 PCIe Gigabit Fiber Network Card lets you connect a desktop PC directly to a fiber optic network, by adding a multie SC fiber port to your computer or server through an available PCI Express slot.
Perfect for integrating into new or existing fiber infrastructure over great distances, this card delivers full Gigabit bandwidth to your computer up to 550 meters away f your network source, using multie 50/125 micron duplex SC fiber cable. Plus, for a wider spectrum of compatibility, this versatile card offers fiber integration with a computer up to 220 meters away when deployed to network frameworks consisting of multie 62.5/125 micron cabling.
With fiber connectivity, your network is not susceptible to electronic interference, which can be problematic with standard RJ45 copper networks, making this fiber card ideal for secure network setups.
Plus, the card is equipped with a standard profile bracket and includes a low-profile/half-height bracket, making it easy to install in small form-factor computers or 1U server and rackmount applications.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Fiber network infrastructure is reliable and secure, with no electagnetic interference and less data corruption, through a direct fiber-to-desktop connection
- Fits into full or low-profile/small form factor (SFF) systems, with a dual profile design
Specifications
Ports & interfaces
Connectivity technology*
Wired
Host interface*
PCI Express
Interface*
Ethernet / Fiber
Fiber optic connector
SC
Network
Maximum data transfer rate*
2000 Mbit/s
Networking standards*
IEEE 802.1p, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3z
Fiber ethernet cabling technology
1000BASE‑SX
Wake-on-LAN ready
Yes
Full duplex
Yes
Jumbo frames support
Yes
Maximum operating distance
550 m
LAN controller
tek RTL8168E
Design
Component for*
PC
Internal*
Yes
Chipset
RTL8168E
LED indicators
Activity, Link
System requirements
Windows operating systems supported
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supported
Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported
Yes
Server operating systems supported
Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Operational conditions
Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
118 mm
Depth
120 mm
Height
18 mm
Weight
66 g
Packaging data
Package width
171 mm
Package depth
218 mm
Package height
49 mm
Package weight
208 g
Packaging content
Manual
Yes
Technical details
Compliance certificates
RoHS
Logistics data
Harmonized System (HS) code
85176990
Other features
Buffer size
48 KB
Power supply
3.2 W
Additional Information
| EAN/UPC | 0065030857703 |
|---|---|
| MPN | PEX1000MMSC2 |
| BRAND | STARTECH |
