Product Details
Description

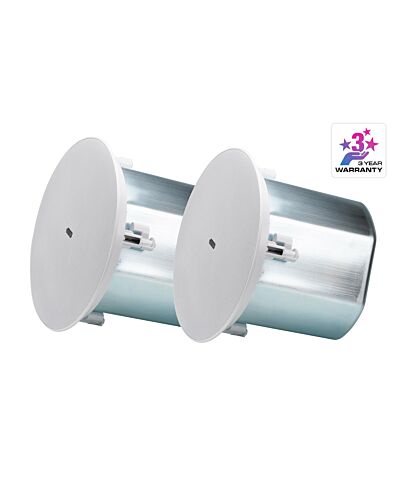

The AS108 comes in a pair of 8" coaxial 2-way ceiling loudspeakers that deliver decent sonic performance. Each speaker ships with a 8" woofer, 20 mm dome tweeter, and 80W RMS, 160W peak (8Ω) power handling capability. Excellent and consistent sound quality is ensured by taking advantages of its 65 - 20 kHz bandwidth and wide coverage, allowing less speakers used to cover the listening area to lower the cost of the system installed.
The loudspeaker contains a matching transformer, running comfortably on 70 / 100 V lines or at 8 Ω to suit various application demands. Phase issues are minimized as a result of the adoption of the coaxial neodymium magnetic driver, making sound waves with various frequency bands easier to be added together instead of canceling each other out. Made of UL94-V0-compliant flame retardant materials, the housing, together with the Zinc-plated steel backcan, improve safety for applications where flame and fire protection is of the highest importance. When it comes to installation, each speaker features a cutout template for quick and easy post construction installation and can be secured with its dog-leg mounting system. The paintable magnetic grille assures effortless installation and cleaning while giving unobtrusive appearance in any room design.
AS108 is ideal for residence and enterprise-grade audio applications, such as auditoriums, houses of worship, sports venues, and any small or mid-sized public address systems that require a clear and intelligible sound solution without compromise on life safety.
The loudspeaker contains a matching transformer, running comfortably on 70 / 100 V lines or at 8 Ω to suit various application demands. Phase issues are minimized as a result of the adoption of the coaxial neodymium magnetic driver, making sound waves with various frequency bands easier to be added together instead of canceling each other out. Made of UL94-V0-compliant flame retardant materials, the housing, together with the Zinc-plated steel backcan, improve safety for applications where flame and fire protection is of the highest importance. When it comes to installation, each speaker features a cutout template for quick and easy post construction installation and can be secured with its dog-leg mounting system. The paintable magnetic grille assures effortless installation and cleaning while giving unobtrusive appearance in any room design.
AS108 is ideal for residence and enterprise-grade audio applications, such as auditoriums, houses of worship, sports venues, and any small or mid-sized public address systems that require a clear and intelligible sound solution without compromise on life safety.
Key Features
- Coaxial design with premium components:
- 8" high output driver with rubber surround and heavy-duty voice coil
- 20 mm dome tweeter
- 65 - 20 kHz bandwidth with wide coverage for consistent, full-range coverage of the space while reducing the amount of the speakers needed
- Switchable for use as either an 8 Ω low-impedance speaker or as part of a 70V / 100V distributed loudspeaker system
- UL94-V0 compliance for life safety applications
- Paintable magnetic grille for blending into any room decor
- Ease of installation guaranteed with the magnetic grille, dog leg mounting system and cutout template
Specifications
Loudspeakers
Speaker placement*
Ceiling-mountable
Tweeter
Yes
Tweeter diameter
2 cm
Audio
RMS rated power*
80 W
Frequency range
65 - 20000 Hz
Sensitivity
90 dB
Total Harmonic Distortion (THD)
5%
Performance
Recommended usage*
Universal
Product colour*
White
Housing material
Plastic
Certification
CE, WEEE, RoHs
Ports & interfaces
Connectivity technology*
Wired
Power
Transformer taps
10,20,40,80 W
Weight & dimensions
Width
309 mm
Depth
309 mm
Height
248 mm
Weight
5.8 kg
Packaging data
Package width
397 mm
Package depth
785 mm
Package height
259 mm
Package weight
18 kg
Packaging content
Quantity per pack
2 pc(s)
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Logistics data
Harmonized System (HS) code
85182100
Master (outer) case width
397 mm
Master (outer) case length
785 mm
Master (outer) case height
259 mm
Master (outer) case gross weight
18 kg
Master (outer) case net weight
11.4 kg
Other features
Country of origin
China
Additional Information
EAN/UPC | 4710469348860 |
---|---|
MPN | AS108 |
