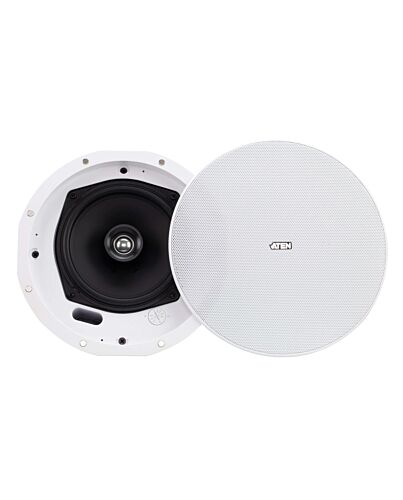

ATEN 6.5" Coaxial Ceiling Loudspeaker
£298.94
ATEN 6.5" Coaxial Ceiling Loudspeaker, 2-way, Wired, 60 W, 80 - 20000 Hz, 8 Ω, White
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The AS106 comes in a pair of 6.5” coaxial 2-way ceiling loudspeakers that deliver decent sonic performance. Each speaker ships with a 6.5” woofer, 20 mm dome tweeter, and 60 W RMS, 120 W peak (8Ω) power handling capability. Excellent and consistent sound quality is ensured by taking advantages of its 100 - 20 kHz bandwidth and wide coverage, allowing less speakers used to cover the listening area to lower the cost of the system installed.
The loudspeaker contains a matching transformer, running comfortably on 70 / 100 V lines or at 8Ω to suit various application demands. Phase issues are minimized as a result of the adoption of the coaxial neodymium magnetic driver, making sound waves with various frequency bands easier to be added together instead of canceling each other out. Made of UL94-V0-compliant flame retardant materials, the housing, together with the Zinc-coated steel backcan, improve safety for applications where flame and fire protection is of the highest importance. When it comes to installation, each speaker features a cutout template for quick and easy post construction installation and can be secured with its dog-leg mounting system. The paintable magnetic grille assures effortless installation and cleaning while giving unobtrusive appearance in any room design.
AS106 is ideal for residence and enterprise-grade audio applications, such as auditoriums, houses of worship, sports venues, and any small or mid-sized commercial spaces that require a clear and intelligible sound solution without compromise on life safety.
The loudspeaker contains a matching transformer, running comfortably on 70 / 100 V lines or at 8Ω to suit various application demands. Phase issues are minimized as a result of the adoption of the coaxial neodymium magnetic driver, making sound waves with various frequency bands easier to be added together instead of canceling each other out. Made of UL94-V0-compliant flame retardant materials, the housing, together with the Zinc-coated steel backcan, improve safety for applications where flame and fire protection is of the highest importance. When it comes to installation, each speaker features a cutout template for quick and easy post construction installation and can be secured with its dog-leg mounting system. The paintable magnetic grille assures effortless installation and cleaning while giving unobtrusive appearance in any room design.
AS106 is ideal for residence and enterprise-grade audio applications, such as auditoriums, houses of worship, sports venues, and any small or mid-sized commercial spaces that require a clear and intelligible sound solution without compromise on life safety.
Key Features
- 80 – 20 kHz bandwidth with wide coverage for consistent, full-range coverage of the space while reducing the amount of the speakers needed
- Switchable for use as either an 8 Ω low-impedance speaker or as part of a 70V / 100V distributed loudspeaker system
- UL94-V0 compliance for life safety applications
- Paintable magnetic grille for blending into any room decor
- Ease of installation guaranteed with the magnetic grille, dog leg mounting system and cutout template
Specifications
Loudspeakers
Speaker type*
2-way
Speaker placement*
Ceiling-mountable
Number of drivers*
2
Tweeter
Yes
Number of tweeter drivers
1
Tweeter diameter
2 cm
Woofer
Yes
Number of woofer drivers
1
Woofer diameter
16.5 cm
Audio
RMS rated power*
60 W
Peak Music Power Output (PMPO)
120 W
Frequency range
80 - 20000 Hz
Impedance
8 Ω
Sensitivity
90 dB
Total Harmonic Distortion (THD)
5%
Performance
Recommended usage*
Universal
Product colour*
White
Housing material
Plastic, Rubber, Steel
Amplifier
Amplifier*
No
Ports & interfaces
Connectivity technology*
Wired
Bluetooth*
No
Power
Power source type
DC
Transformer taps
7.5,15,30,60 W
Weight & dimensions
Width
257.2 mm
Depth
257.2 mm
Height
197.5 mm
Weight
3.7 kg
Packaging data
Package weight
13.7 kg
Packaging content
Manual
Yes
Mounting brackets included
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Sustainability
Sustainability compliance
Yes
Technical details
Compliance certificates
CE, RoHS, WEEE
Logistics data
Master (outer) case width
390 mm
Master (outer) case length
750 mm
Master (outer) case height
267 mm
Master (outer) case gross weight
13.7 kg
Master (outer) case net weight
9.8 kg
Products per master (outer) case
2 pc(s)
Master (outer) case volume
78154.5 cm³
Other features
Country of origin
China
Package volume
78154.5 cm³
Additional Information
EAN/UPC | 4710469341700 |
---|---|
MPN | AS106 |
