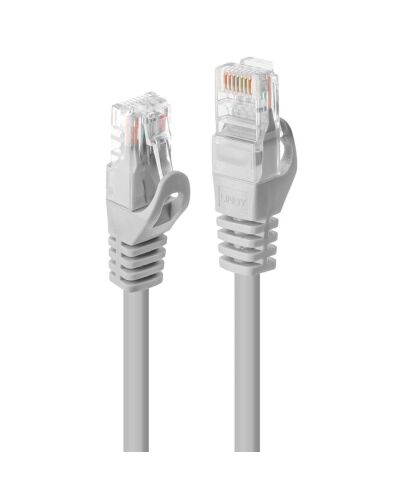

Lindy 5m Cat.5e U/UTP Network Cable, Grey
£3.14
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Cat.5e U/UTP PVC network cable with support for bandwidth up to 100MHz and features a snagless design with gold plated contacts for ethernet standards up to 1GBase-T.
Cat.5e cable, designed for operating frequencies up to 100MHz. The unshielded version (U/UTP) is designed in its electrophysical parameters (NExT, FExT etc.) in such a way that it can be used for Gigabit Ethernet despite the lack of shielding. These cables are manufactured and tested according to the /IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m, 40m, 50m, 60m, 70m, 80m, 90m, 100m.
Cat.5e cable, designed for operating frequencies up to 100MHz. The unshielded version (U/UTP) is designed in its electrophysical parameters (NExT, FExT etc.) in such a way that it can be used for Gigabit Ethernet despite the lack of shielding. These cables are manufactured and tested according to the /IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m, 30m, 40m, 50m, 60m, 70m, 80m, 90m, 100m.
Key Features
- Twisted Pair Patch Cable with RJ45 connectors
- Cat.5e U/UTP, PVC
- Integrated snagless connector for latch protection
- Gold plated pins for better conductivity and elimination of signal loss
Specifications
Features
Product colour*
Grey
Cable length*
5 m
Cable standard*
Cat5e
Cable shielding*
U/UTP (UTP)
Connector 1*
RJ-45
Connector 2*
RJ-45
Connector 1 gender*
Male
Connector 2 gender*
Male
Connector contacts plating
Gold
Jacket material
Polyvinyl chloride (PVC)
Conductor material
Copper
Cabling technology
10/100/1000Base-T(X)
AWG wire size
26
Frequency
100 MHz
Bend radius (min)
5.7 cm
Operational conditions
Operating temperature (T-T)
-10 - 60 °C
Storage temperature (T-T)
-20 - 75 °C
Certificates
Certification
RoHS, REACH, UL, California Proposition 65
Weight & dimensions
Outer diameter
4.8 mm
Connector 1 dimensions (WxDxH)
11.6 x 22.8 x 8.3 mm
Connector 2 dimensions (WxDxH)
11.6 x 22.8 x 8.3 mm
Packaging data
Package type
Polybag
Logistics data
Harmonized System (HS) code
84733080
Additional Information
| EAN/UPC | 4002888483650 |
|---|---|
| MPN | 48365 |
| BRAND | Lindy |
