Computers

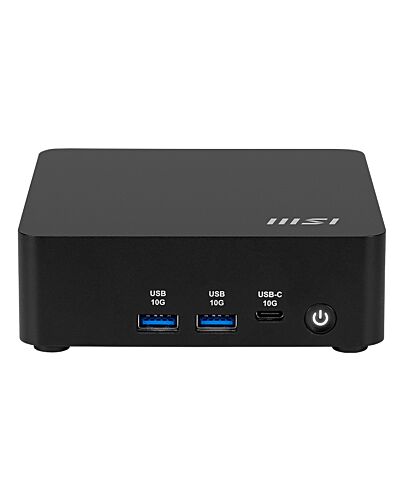

MSI Cubi NUC AI 1UMG Intel Core Ultra 7 155H, Desktop PC, NUC, SFF, Mini Computer, HTPC, (16GB RAM, 1TB Storage, Windows 11 PRO), Intel Graphics/DDR5/Dual ThunderBolt 4/Dual HDMI/Dual LAN/WiFi 6E/BT 5.3/VESA
£887.20
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The Cubi NUC AI 1UM is a mini pc equipped with Intel® AI Boost NPU and Intel® CoreTM Ultra processor, and it won the Red Dot Design Award in 2024. With quadruple monitor support, dual 2.5G LAN network capabilities, sustainable material and packing design, the Cubi NUC AI is compact, versatile, yet capable mini desktop PC for home or the office with AI features.
Up to Intel® CoreTM Ultra 7 processor 155H with Intel® AI Boost NPU -Equipped with a built-in Intel® AI Boost NPU, the Cubi NUC AI Series provides users with an AI-ready PC experience
RAM capacity: The Cubi NUC AI Series can support DDR5 5200MHz memory (2 x SO-DIMM, up to 64GB). 1 x M.2 2280 SSD (PCIE, factory pre-installed) 1x M.2 2242 SSD (PCIE, free slot)
The rear I/O panels include two Thunderbolt 4, two HDMI 2.1 outputs, which support quadruple monitor setups for improved workflow efficiency or previewing e-commerce content
Network connectivity includes Intel wireless, Bluetooth, and dual 2.5G ethernet LAN
dTPM 2.0 (discrete Trusted Platform Module) hardware technology provides security for storing sensitive data & passwords
Kensington Lock slot included
The MSI Power Link allows the power button of MSI-selected monitors to turn on the Cubi NUC AI Series
The chassis is VESA-mountable (standard 100x100 & 75x75), which can transform a standard compact desktop layout into an ultra-minimalist, distraction-free environment
The front 1 x USB 10Gbps Type C and 2 x Type A ensure that plugging in and transferring data between devices is quick and hassle-free
The two rear Thunderbolt 4 ports support the display and power delivery output of 15W
Made with PCR (Post-consumer Recycled) plastic materials
Reduce waste by using a recycled molded pulp tray packing design
Manufatured with 99% of renewable energy in factory
MSI AI Engine offers multiple optimizations that can help lighten the workload
Power Meter enables one-click power saving, carbon emission calculation & electricity cost estimation
Up to Intel® CoreTM Ultra 7 processor 155H with Intel® AI Boost NPU -Equipped with a built-in Intel® AI Boost NPU, the Cubi NUC AI Series provides users with an AI-ready PC experience
RAM capacity: The Cubi NUC AI Series can support DDR5 5200MHz memory (2 x SO-DIMM, up to 64GB). 1 x M.2 2280 SSD (PCIE, factory pre-installed) 1x M.2 2242 SSD (PCIE, free slot)
The rear I/O panels include two Thunderbolt 4, two HDMI 2.1 outputs, which support quadruple monitor setups for improved workflow efficiency or previewing e-commerce content
Network connectivity includes Intel wireless, Bluetooth, and dual 2.5G ethernet LAN
dTPM 2.0 (discrete Trusted Platform Module) hardware technology provides security for storing sensitive data & passwords
Kensington Lock slot included
The MSI Power Link allows the power button of MSI-selected monitors to turn on the Cubi NUC AI Series
The chassis is VESA-mountable (standard 100x100 & 75x75), which can transform a standard compact desktop layout into an ultra-minimalist, distraction-free environment
The front 1 x USB 10Gbps Type C and 2 x Type A ensure that plugging in and transferring data between devices is quick and hassle-free
The two rear Thunderbolt 4 ports support the display and power delivery output of 15W
Made with PCR (Post-consumer Recycled) plastic materials
Reduce waste by using a recycled molded pulp tray packing design
Manufatured with 99% of renewable energy in factory
MSI AI Engine offers multiple optimizations that can help lighten the workload
Power Meter enables one-click power saving, carbon emission calculation & electricity cost estimation
Key Features
- Up to Intel® CoreTM Ultra 7 processor 155H with Intel® AI Boost NPU
- Supports DDR5 5200MHz memory
- Supports 1x M.2 2280 SSD (PCIE, factory pre-installed), 1x M.2 2242 SSD (PCIE)
- Quadruple monitor support (Thunderbolt 4, HDMI 2.1)
- 1 x USB 10GbpsType-C port front, 2 x USB 10GbpsType-A ports front
- MSI Power Link support
- MSI Power Meter software
- Dual 2.5G LAN, Wi-fi 6E AX211 & BT 5.3
Specifications
Processor
Processor manufacturer*
Intel
Processor family*
Intel Core Ultra 7
Processor model*
155H
Processor cores
16
Processor threads
22
Processor boost frequency
4.8 GHz
Processor frequency*
1.4 GHz
Performance cores
6
Efficient cores
8
Low Power Efficient-cores
2
Performance-core Max Turbo Frequency
4.8 GHz
Efficient-core Max Turbo Frequency
3.8 GHz
Performance-core base frequency
1.4 GHz
Efficient-core base frequency
1 GHz
Low Power Efficient-core Base Frequency
800 MHz
Processor cache
24 MB
Processor cache type
Smart Cache
Number of processors installed
1
Processor base power
28 W
Maximum turbo power
115 W
Neural processor unit (NPU)
Neural processor unit (NPU)
No
Sparsity support
No
Windows Studio effects support
No
Memory
Internal memory*
16 GB
Maximum internal memory*
64 GB
Internal memory type
DDR5-SDRAM
Memory layout (slots x size)
2 x 8 GB
Memory slots
2x SO-DIMM
Memory clock speed
5600 MHz
ECC
No
Non-ECC
Yes
Memory channels
Dual-channel
Memory data transfer rate
5600 MT/s
Storage
Total storage capacity*
1 TB
Storage media*
SSD
Optical drive type*
No
Number of storage drives installed
1
Number of storage drives supported
2
Total HDDs capacity
0 GB
HDD capacity
0 GB
Total SSDs capacity
1 TB
Number of SSDs installed
1
SSD capacity
1 TB
SSD interface
PCI Express 4.0
NVMe
Yes
SSD form factor
M.2
M.2 SSD size
2280 (22 x 80 mm)
Card reader integrated
No
Intel® Optane™ Memory module installed
No
Intel® Optane™ Memory module capacity
0 GB
Embedded storage capacity
0 MB
Graphics
Discrete graphics card*
No
Discrete GPU manufacturer
Intel
On-board graphics card*
Yes
Discrete graphics card model*
Not available
On-board GPU manufacturer
Intel
On-board graphics card family
Intel Arc Graphics
On-board graphics card model*
Intel Arc Graphics
On-board graphics card cores
128
On-board graphics card 6K support
Yes
On-board graphics card 8K support
Yes
Number of external displays supported
4
Graphics card Open GL support
Yes
NVIDIA G-SYNC
No
NVIDIA GameWorks VR
No
CUDA
No
AMD FreeSync
No
Ray tracing acceleration
Yes
Graphics card HDMI ports quantity
2
Graphics card DisplayPorts quantity
2
Graphics card USB Type-C ports quantity
1
Network
Ethernet LAN*
Yes
Ethernet LAN data rates
1000 Mbit/s
Cabling technology
10/100/1000Base-T(X)
LAN controller
Realtek RTL8111H
Wi-Fi*
Yes
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Wi-Fi standards
Wi-Fi 6E (802.11ax)
WLAN controller manufacturer
Intel
WLAN controller model
Intel Wi-Fi 6E AX211
Antenna type
2x2
Bluetooth
Yes
Bluetooth version
5.3
Bluetooth Low Energy (BLE)
Yes
Wake-on-LAN ready
Yes
Miracast
Yes
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity*
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity*
1
PowerShare
No
USB Type-C DisplayPort Alternate Mode
Yes
Intel® Thunderbolt 4
Yes
Thunderbolt 4 ports quantity
2
Intel® Thunderbolt 5
No
DVI port
No
HDMI ports quantity*
2
HDMI version
2.1
DisplayPorts quantity
2
DisplayPort version
1.4
Ethernet LAN (RJ-45) ports
1
Ports & interfaces
Microphone in
No
Line-out
No
Line-in
No
Combo headphone/mic port
No
S/PDIF out port
No
DC-in jack
No
Number of rear USB ports
4
Number of front USB ports
2
Number of front audio ports
1
Number of rear audio ports
2
Fiber NIC port (Flex I/O)
No
Design
Chassis type*
Mini PC
Colour name
black
Volume
1.35 L
Placement supported
Horizontal/Vertical
VESA mounting
Yes
Water cooling system
No
Cable lock slot
No
Product colour*
Black
Copilot key
Yes
Housing material
Metal, Plastic
Viewing window
No
RGB memory lighting
No
Introduction year
2025
Introduction month
June
Country of origin
China
Certified refurbished
No
Performance
Market positioning
Business
Powered by
Intel
Virtual Reality (VR) ready
Yes
Motherboard form factor
NUC
Audio chip
Realtek ALC256
Audio system
High Definition Audio
Audio output channels
2.0 channels
Built-in speaker(s)
No
Password protection
Yes
Password protection type
BIOS, User
Fingerprint reader
No
BIOS type
UEFI
Trusted Platform Module (TPM)
Yes
Product type*
Mini PC
Trusted Platform Module (TPM) version
2.0
Software
Operating system architecture
64-bit
Operating system language
English
Windows 11 free upgrade
Yes
Copilot+ PC
No
Operating system installed*
Windows 11 Pro
Apple Intelligence
No
Compatible operating systems
Windows 11 / Windows 10（Pro)
Drivers included
Yes
Pre-installed software
Yes
Processor special features
Video decode engine
Yes
Video encode engine
Yes
Power
Power supply*
120 W
Power supply input voltage
100 - 240 V
Power supply input frequency
50 - 60 Hz
Power consumption (typical)
35 W
Power consumption (standby)
5 W
Power consumption (max)
115 W
USB Type-C output power
15 W
Operational conditions
Operating temperature (T-T)
0 - 35 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 85%
Storage relative humidity (H-H)
0 - 90%
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance
Yes
PSTI certified
No
Compliance certificates
CE, Federal Communications Commission (FCC)
Weight & dimensions
Width*
119.6 mm
Depth*
115.2 mm
Height*
37.5 mm
Package width
205 mm
Package depth
220 mm
Package height
94 mm
Packaging content
Mouse included
No
Keyboard included
No
Keyboard backlit
No
Numeric keypad
No
Cables included
Power
Power cable length
1.2 m
VESA mount included
Yes
Screws included
Yes
Manual
Yes
Display
Display included*
No
Technical details
Statement of conformance & platform certificate included
No
Not classified as hazardous under GHS
Yes
Other features
Video compression formats
AV1, AVC, HEVC
Video formats supported
MKV, MP4, VP9
TV tuner integrated
No
Built-in microphone
No
Special features
Thunderbolt 4, VESA Mount Kit
Locale
English
Warranty period
3 year(s)
Additional Information
| EAN/UPC | 4711377358019 |
|---|---|
| MPN | CubiNUC AI 1UMG i7 155H FS 16GB 1TB W11P |
| BRAND | MSI |
