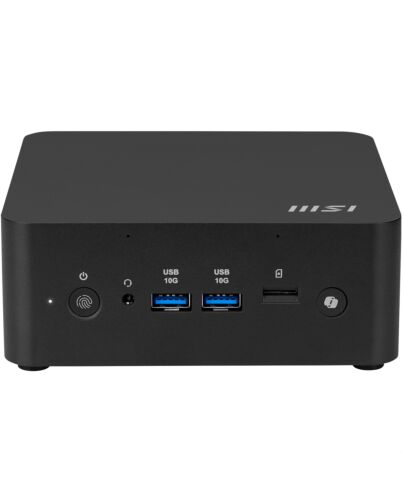

MSI Cubi NUC AI+ 2MG Intel Core Ultra 7 258V, Desktop PC, NUC, SFF, Mini Computer, HTPC, (32GB RAM, 1TB Storage, Windows 11 PRO NextGen Premium), Intel Arc Graphics/Embedded DDR5/Dual ThunderBolt 4/HDMI/Dual LAN/WiFi 6E/BT 5.3/VESA
£994.49
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
"Cubi NUC AI+ 2MG: The Sustainable Coiplot+ PC
The MSI Cubi NUC AI+ 2MG i7 258V FS 32GB 1TB W11PP is a small yet powerful Copilot+ PC with an incredibly compact 0.826L design suitable for commercial office work or use as a home-theatre/entertainment PC (supports UHD/4K 60Hz display output & triple-monitor setups).
The Cubi NUC AI+ 2MG i7 258V FS 32GB 1TB W11PP configuration is a complete system equipped with an Intel's Intel® CoreTM Ultra 7 processor 258V, 32 GB of LPDDR5X-8533 MT/s memory, 1TB of M.2 SSD storage, Intel Wi-Fi AX211 & Bluetooth 5.3 connectivity, as well as Windows 11 Pro NextGen Premium software pre-installed.
Made with PCR (Post-consumer Recycled) plastic materials and recycled molded pulp tray packing design.
Front I/O connectivity includes 2x USB 10Gbps Type A, 1x Mic-in / Headphone-out combo, 1x Micro-SD Card Reader. The rear I/O features dual 2.5Gbps ethernet LAN ports, 2x Thunderbolt 4, 1x HDMI 2.1. The side I/O features 1x Kensington Lock and 1x External Power Switch Pin Header."
The MSI Cubi NUC AI+ 2MG i7 258V FS 32GB 1TB W11PP is a small yet powerful Copilot+ PC with an incredibly compact 0.826L design suitable for commercial office work or use as a home-theatre/entertainment PC (supports UHD/4K 60Hz display output & triple-monitor setups).
The Cubi NUC AI+ 2MG i7 258V FS 32GB 1TB W11PP configuration is a complete system equipped with an Intel's Intel® CoreTM Ultra 7 processor 258V, 32 GB of LPDDR5X-8533 MT/s memory, 1TB of M.2 SSD storage, Intel Wi-Fi AX211 & Bluetooth 5.3 connectivity, as well as Windows 11 Pro NextGen Premium software pre-installed.
Made with PCR (Post-consumer Recycled) plastic materials and recycled molded pulp tray packing design.
Front I/O connectivity includes 2x USB 10Gbps Type A, 1x Mic-in / Headphone-out combo, 1x Micro-SD Card Reader. The rear I/O features dual 2.5Gbps ethernet LAN ports, 2x Thunderbolt 4, 1x HDMI 2.1. The side I/O features 1x Kensington Lock and 1x External Power Switch Pin Header."
Key Features
- Intel Intel® CoreTM Ultra 7 processor 258V CPU, 32GB LPDDR5X , 1TB M.2 SSD, USB 10Gbps Type A Ports, Thunderbolt 4 & HDMI 2.1, Wi-Fi 6E, Bluetooth 5.3 - Black, Windows 11 PRO NextGen Premium
- INTEL MINI PC - The CubiNUC AI+ 2MG is a palm-sized mini PC featuring an Intel Intel® CoreTM Ultra 7 processor 258V CPU, 32GB LPDDR5X, 1TB M.2 SSD Storage - Compact Case, Windows 11 Pro NextGen Premium software pre-installed
- 32GB RAM, Arc™ Graphics (Integrated) - The system includes 32GB of pre-installed LPDDR5X-8533 MT/s memory; Thunderbolt 4 and HDMI 2.1 support 3 monitor setups with 4K display - ideal for watching movies
- 1TB of pre-installed M.2 SSD storage ensures faster loading speeds (supports 1x M.2 2280 SSD; A 75 x 75 & 100 x 100mm VESA mountable design
- The front I/O panel features 2x USB 10Gbps Type A. The compact 0.826L SFF case incorporates an MSI Frozr AI PRO thermal design & low-noise fan. Included a Power Button with Fingerprint Security Design
- WI-FI 6E AX211 & BLUETOOTH 5.3 - Network connectivity includes an Intel WI-FI 6E AX211 , and dual 2.5G ethernet LAN ports; dTPM 2.0 (discrete Trusted Platform Module) hardware technology provides security for storing sensitive data & passwords
Specifications
Processor
Processor manufacturer*
Intel
Processor family*
Intel Core Ultra 7
Processor model*
258V
Processor cores
8
Processor threads
4
Processor boost frequency
4.8 GHz
Processor frequency*
2.2 GHz
Performance cores
4
Low Power Efficient-cores
4
Performance-core Max Turbo Frequency
4.8 GHz
Low Power Efficient-core Max Turbo Frequency
3.7 GHz
Performance-core base frequency
2.2 GHz
Low Power Efficient-core Base Frequency
2.2 MHz
Processor cache
12 MB
Processor cache type
Smart Cache
Number of processors installed
1
Processor base power
17 W
Maximum turbo power
37 W
Neural processor unit (NPU)
Neural processor unit (NPU)
Intel AI Boost
Sparsity support
Yes
Windows Studio effects support
Yes
AI datatype support on NPU
FP16, Int8
AI software frameworks supported by NPU
ONNX RT, OpenVINO
Total processor performance up to
34 TOPs
NPU performance up to
10 TOPs
GPU performance up to
15 TOPs
Memory
Internal memory*
32 GB
Maximum internal memory*
96 GB
Internal memory type
LPDDR5x-SDRAM
Memory layout (slots x size)
1 x 32 GB
Memory slots
1x SO-DIMM
Memory clock speed
7467 MHz
ECC
No
Non-ECC
Yes
Memory channels
Dual-channel
Buffered memory type
Clocked unregistered (unbuffered)
Memory data transfer rate
7467 MT/s
Storage
Total storage capacity*
1 TB
Storage media*
SSD
Optical drive type*
No
Number of storage drives installed
1
Number of storage drives supported
1
Total HDDs capacity
0 GB
Total SSDs capacity
1 TB
Number of SSDs installed
1
SSD capacity
1 TB
SSD memory type
TLC
SSD interface
PCI Express
NVMe
Yes
SSD form factor
M.2
M.2 SSD size
2280 (22 x 80 mm)
Card reader integrated
No
Intel® Optane™ Memory module installed
No
Graphics
Discrete graphics card*
No
On-board graphics card*
Yes
On-board GPU manufacturer
Intel
On-board graphics card family
Intel Arc Graphics
On-board graphics card model*
Intel Arc Graphics
On-board graphics card cores
8
On-board graphics card 6K support
Yes
On-board graphics card 8K support
Yes
Number of external displays supported
4
Graphics card Open GL support
Yes
NVIDIA G-SYNC
No
NVIDIA GameWorks VR
No
CUDA
No
AMD FreeSync
Yes
Ray tracing acceleration
Yes
Network
Ethernet LAN*
Yes
Ethernet LAN data rates
2500 Mbit/s
Cabling technology
10/100/1000Base-T(X)
LAN controller
Intel I226-V
Wi-Fi*
Yes
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Wi-Fi standards
Wi-Fi 6E (802.11ax)
WLAN controller manufacturer
Intel
WLAN controller model
Intel Wi-Fi 6E AX211
Antenna type
2x2
Bluetooth
Yes
Bluetooth version
5.3
Bluetooth Low Energy (BLE)
Yes
Wake-on-LAN ready
Yes
Miracast
Yes
Ports & interfaces
USB 2.0 ports quantity*
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity*
2
PowerShare
Yes
Number of USB ports with PowerShare support
1
USB Type-C DisplayPort Alternate Mode
Yes
Intel® Thunderbolt 4
Yes
Thunderbolt 4 ports quantity
2
Intel® Thunderbolt 5
No
DVI port
No
HDMI ports quantity*
1
HDMI version
2.1
Ethernet LAN (RJ-45) ports
1
Microphone in
Yes
Headphone outputs
1
Ports & interfaces
Line-out
No
Line-in
No
Combo headphone/mic port
Yes
S/PDIF out port
No
DC-in jack
No
Number of rear USB ports
2
Number of front USB ports
2
Number of front audio ports
1
Fiber NIC port (Flex I/O)
No
Expansion slots
PCI Express x1 slots
1
PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 slots
1
PCI Express x16 (Gen 3.x) slots
1
Design
Chassis type*
Mini PC
Colour name
black
Placement supported
Horizontal/Vertical
VESA mounting
Yes
Water cooling system
No
Number of 3.5" bays
1
Number of 2.5" bays
1
Cable lock slot
No
Cable lock slot type
Kensington
Product colour*
Black
Copilot key
No
Housing material
Metal, Plastic
Viewing window
No
RGB memory lighting
No
Introduction year
2025
Introduction month
June
Country of origin
China
Refurbished
No
Certified refurbished
No
Performance
Market positioning
Business
Powered by
MSI
Virtual Reality (VR) ready
No
Motherboard form factor
NUC
Audio chip
Realtek ALC256
Audio system
High Definition Audio
Audio output channels
2.0 channels
Built-in speaker(s)
Yes
Number of speakers
2
Password protection
Yes
Password protection type
BIOS
Fingerprint reader
No
BIOS type
UEFI
Trusted Platform Module (TPM)
Yes
Product type*
Mini PC
Trusted Platform Module (TPM) version
2.0
Software
Operating system architecture
64-bit
Operating system language
English
Windows 11 free upgrade
No
Copilot+ PC
No
Operating system installed*
Windows 11 Pro
Apple Intelligence
No
Drivers included
Yes
Processor special features
Video decode engine
Yes
Video encode engine
Yes
Power
Power supply*
120 W
Power supply input voltage
100 - 240 V
Power supply input frequency
50 - 60 Hz
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
10 - 90%
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance
Yes
Compliance certificates
CB, Federal Communications Commission (FCC)
Weight & dimensions
Width*
135.6 mm
Depth*
132.5 mm
Height*
50.1 mm
Weight*
630 g
Package width
205 mm
Package depth
220 mm
Package height
94 mm
Package weight
1.38 kg
Packaging content
Mouse included
No
Keyboard included
No
Keyboard backlit
No
Numeric keypad
No
Cables included
AC
VESA mount included
Yes
Screws included
Yes
Manual
Yes
Display
Display included*
No
Technical details
Statement of conformance & platform certificate included
Yes
Not classified as hazardous under GHS
Yes
Other features
TV tuner integrated
No
Built-in microphone
No
Locale
English
Warranty period
3 year(s)
Additional Information
| EAN/UPC | 4711377358064 |
|---|---|
| MPN | CubiNUC AI+ 2MG i7 258V FS 32GB1TB W11PP |
