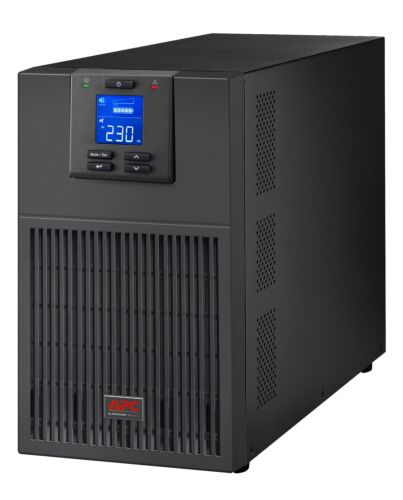

APC SRV1KI uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA 800 W 3 AC outlet(s)
£447.25
APC SRV1KI, Double-conversion (Online), 1 kVA, 800 W, Sine, 110 V, 285 V
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Specifications
Features
UPS topology*
Double-conversion (Online)
Output power capacity*
1 kVA
Output power*
800 W
Waveform*
Sine
Input operation voltage (min)*
110 V
Input operation voltage (max)*
285 V
Input frequency*
40 - 70 Hz
Output operation voltage (min)
220 V
Output operation voltage (max)
240 V
Efficiency
88%
Crest factor
3:1
Emergency Power Off (EPO)
No
Socket circuit breaker
Yes
Ports & interfaces
AC outlet types
C13 coupler
Power plug
C14 coupler
AC outlets quantity
3 AC outlet(s)
USB port
Yes
USB 2.0 ports quantity
1
Serial interface
Yes
Serial interface type
RS-232
RS-232 ports
1
Battery
Battery capacity
9 Ah
Battery capacity
24 VAh
Battery voltage
12 V
Number of batteries supported
1
Typical backup time at full load
4 min
Typical backup time at half load
10 min
Design
Form factor*
Mini Tower
Product colour*
Black
Display type
LCD
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 50 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Packaging content
Cables included
Input power cable, Output power cable, RS-232, USB cable
Manual
Yes
Weight & dimensions
Width
145 mm
Depth
288 mm
Height
223 mm
Weight
9.3 kg
Packaging data
Warranty card
Yes
Software CD
Yes
Package width
235 mm
Package depth
365 mm
Package height
330 mm
Package weight
10.6 kg
Package volume
10600 cm³
Package type
Box
Logistics data
Harmonized System (HS) code
85078000
Additional Information
| EAN/UPC | 731304339205 |
|---|---|
| MPN | SRV1KI |
| BRAND | APC |
