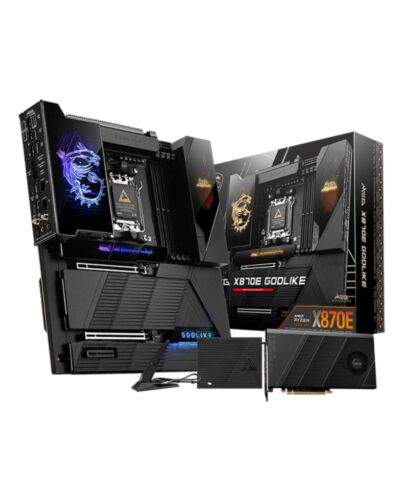

MSI MEG X870E GODLIKE motherboard AMD X870E Socket AM5 Extended ATX
£1,199.59
MSI MEG X870E GODLIKE, AMD, Socket AM5, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, Socket AM5, DDR5-SDRAM, 256 GB
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Built for unparalleled performance on the AMD X870E chipset and Ryzen 9000 processors, the MEG X870E GODLIKE equips true Wi-Fi 7, 10G Super LAN, high-speed USB4, Supplemental PCIe Power, and the revolutionary Dynamic Dashboard III. Dominate tournaments and immerse in extreme gaming with the MEG X870E GODLIKE.
Key Features
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 9000+MT/s (OC)
- Dynamic Dashboard III: A 3.99-inch LCD for -time hardware monitoring, troubleshooting, BIOS updates, and personalized display options, enhancing the overall user experience
- M.2 XPANDER-Z SLIDER GEN5: The one-slot-thick M.2 expansion card features dual high-speed Gen5 M.2 slots, and the EZ Slide design makes SSD upgrades effortless
- Ultra Performance: 24+2+1 Duet Rail Power System, 110A SPS, OC Engine, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 10-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Wavy fin design, Direct Touch Cross Heat-pipe, MOSFET Baseplate, 9W/mK thermal pads, Double-Sided M.2 Shield Frozr and Frozr AI software ensure the utmost performance with low temperature
- EZ DIY: EZ Link, EZ PCIe Release, EZ Magnetic M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
- Ultra Connect: 10G LAN + 5G LAN, Full-speed Wi-Fi 7 Solution and USB4 - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Lightning Fast Game Experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Front USB 20G with 60W USB Power Delivery
- Audio Boost 5 HD: Ultimate audio solution with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience
Specifications
Processor
Processor manufacturer*
AMD
Processor socket*
Socket AM5
Compatible processor series*
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets
Socket AM5
Memory
Supported memory types*
DDR5-SDRAM
Number of memory slots*
4
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
Non-ECC
Supported memory clock speeds
4800,5600 MHz
Supported memory clock speed (max)
9000 MHz
Maximum internal memory*
256 GB
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces*
M.2, SATA III
Number of HDDs supported
4
Number of storage drives supported
9
RAID support
Yes
RAID levels
0, 1, 10
Graphics
On-board graphics card
No
Internal I/O
USB 2.0 connectors*
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors*
4
USB 3.2 Gen 2 (3.1 Gen 2) connectors*
2
Number of SATA III connectors*
4
Total number of SATA connectors
4
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity*
8
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity*
5
USB4 Gen 2x2 ports quantity
2
Ethernet LAN (RJ-45) ports*
1
HDMI version
2.1
Microphone in
Yes
S/PDIF out port
Yes
Network
Ethernet LAN
Yes
Ethernet interface type
5 Gigabit Ethernet
Wi-Fi*
Yes
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Bluetooth
Yes
Bluetooth version
5.4
Features
Motherboard chipset*
AMD X870E
Audio output channels*
7.1 channels
Product colour
Black
PC health monitoring
CPU, Fan, Temperature, Voltage
Component for*
PC
Motherboard form factor*
Extended ATX
Motherboard chipset family*
AMD
Windows operating systems supported
Windows 11 x64
Expansion slots
PCI Express x16 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
Number of M.2 (M) slots
5
1st M.2 largest key size
2280
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
2280
2nd M.2 highest PCI Express generation
5.0
3rd M.2 largest key size
22110
3rd M.2 highest PCI Express generation
4.0
4th M.2 largest key size
2280
4th M.2 highest PCI Express generation
4.0
5th M.2 largest key size
2280
5th M.2 highest PCI Express generation
4.0
BIOS
BIOS type*
UEFI AMI
BIOS memory size
256 Mbit
ACPI version
6.5
System Management BIOS (SMBIOS) version
3.7
Weight & dimensions
Width
304.8 mm
Depth
277 mm
Additional Information
| EAN/UPC | 4711377276221 |
|---|---|
| MPN | MEG X870E GODLIKE |
| BRAND | MSI |
