Components

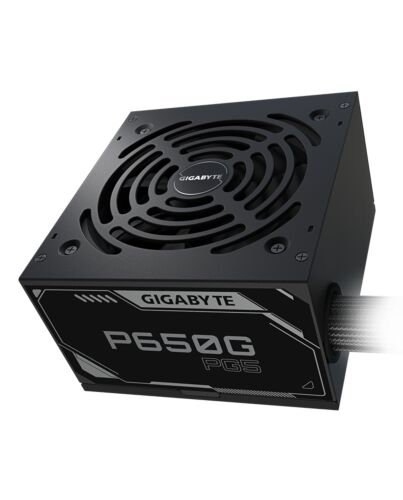

GIGABYTE P650G power supply unit 650 W 20+4 pin ATX ATX Black
£46.32
GIGABYTE P650G, 650 W, 100 - 240 V, 50/60 Hz, 10 - 6 A, 10 A, 6 A
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
ATX 3.1 and PCIe Gen 5.1 Ready
Designed to meet the demands of next-gen systems, this ATX 3.1 compliant PSU handles up to 3× GPU and 2× system power excursions with 70% efficiency at low loads. The high-performance native 16-pin cable delivers up to 300W for PCIe Gen 5 graphics cards, such as the GeForce RTX™ 50 Series and beyond.
80 PLUS GOLD CERTIFIED
Achieving 90% efficiency at a 50% load, this 80 PLUS Gold certified PSU reduces power loss, minimizes heat generation, and lowers fan noise, ensuring both performance and energy savings.
HIGH QUALITY JAPANESE CAPACITORS
The primary capacitors are sourced from top-tier Japanese manufacturers, delivering a premium and stable power supply that effectively extends the product's lifespan.
120MM SILENT HYDRAULIC BEARING (HYB) FAN
The 120mm fan detects the current power utilization and temperature, automatically adjusting its rotational speed to minimize noise.The Hydraulic Bearing fan offers a longer and more stable lifespan in comparison to traditional sleeve fan.
SINGLE +12V RAIL
The single +12V rail delivers optimal power output, stability, and hardware compatibility. This design not only simplifies power cable installation but also stands as the most effective choice for overclocking purposes.
COMPREHENSIVE PROTECTION
Equipped with multiple protection features, this PSU ensures the stable operation of your system, backed by safety certifications from various countries for added peace of mind.
COMPACT DESIGN
Thanks to advanced thermal solutions and premium materials, the PSU features a compact size that fits easily into most chassis, maximizing both power and space efficiency.
SOFT-TEXTURED EMBOSSED CABLES
The soft-textured, embossed cables reduce friction, preventing wear and tear while keeping your build tidy. The unique patterns add an aesthetic touch and enhance durability, ensuring a clean and long-lasting cable experience.
Designed to meet the demands of next-gen systems, this ATX 3.1 compliant PSU handles up to 3× GPU and 2× system power excursions with 70% efficiency at low loads. The high-performance native 16-pin cable delivers up to 300W for PCIe Gen 5 graphics cards, such as the GeForce RTX™ 50 Series and beyond.
80 PLUS GOLD CERTIFIED
Achieving 90% efficiency at a 50% load, this 80 PLUS Gold certified PSU reduces power loss, minimizes heat generation, and lowers fan noise, ensuring both performance and energy savings.
HIGH QUALITY JAPANESE CAPACITORS
The primary capacitors are sourced from top-tier Japanese manufacturers, delivering a premium and stable power supply that effectively extends the product's lifespan.
120MM SILENT HYDRAULIC BEARING (HYB) FAN
The 120mm fan detects the current power utilization and temperature, automatically adjusting its rotational speed to minimize noise.The Hydraulic Bearing fan offers a longer and more stable lifespan in comparison to traditional sleeve fan.
SINGLE +12V RAIL
The single +12V rail delivers optimal power output, stability, and hardware compatibility. This design not only simplifies power cable installation but also stands as the most effective choice for overclocking purposes.
COMPREHENSIVE PROTECTION
Equipped with multiple protection features, this PSU ensures the stable operation of your system, backed by safety certifications from various countries for added peace of mind.
COMPACT DESIGN
Thanks to advanced thermal solutions and premium materials, the PSU features a compact size that fits easily into most chassis, maximizing both power and space efficiency.
SOFT-TEXTURED EMBOSSED CABLES
The soft-textured, embossed cables reduce friction, preventing wear and tear while keeping your build tidy. The unique patterns add an aesthetic touch and enhance durability, ensuring a clean and long-lasting cable experience.
Key Features
- ATX 3.1 and PCIe Gen 5.1 ready
- 80 PLUS Gold certified
- Main Japanese capacitors
- 120mm Silent Hydraulic Bearing (HYB) Fan
- Powerful single +12V rail
- OVP/OPP/SCP/UVP/OCP/OTP protection
- Compact design
Specifications
Power
Total power*
650 W
AC input voltage*
100 - 240 V
AC input frequency
50/60 Hz
Input current
10 - 6 A
Maximum input current (@110V)
10 A
Maximum input current (@220V)
6 A
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
90 W
Combined power (+12V)
650 W
Combined power (+5V)
90 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
18 A
Max output current (+12V)
54.2 A
Max output current (+5V)
18 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
15 A
Efficiency
70%
Power protection features
Over power, Overcharge, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector*
20+4 pin ATX
Motherboard power cable length
50 cm
Number of SATA power connectors
6
SATA power cable length
150,500 mm
Peripheral (Molex) power connectors (4-pin)*
3
Peripheral (Molex) power cable length
150,500 mm
PCI Express power connectors (6+2 pin)
4
PCI Express power cable length
65 cm
Ports & interfaces
CPU P4 connector (4-pin)
1
CPU power connector (4+4 pin)
Yes
CPU power cable length
60 cm
ATX power connector (20+4 pin)
Yes
Floppy disk drive connector
Yes
Cabling type
Non-Modular
Performance
80 PLUS certification*
80 PLUS Bronze
Purpose*
PC
Power supply unit (PSU) form factor*
ATX
ATX version
3.1
Bearing technology
HDB
Mean time between failures (MTBF)
100000 h
Design
Product colour
Black
Cooling type
Active
Fan diameter
12 cm
Number of fans
1 fan(s)
Fan location
Top
On/off switch
Yes
Weight & dimensions
Width
140 mm
Depth
150 mm
Height
86 mm
Packaging data
Package type
Box
Additional Information
EAN/UPC | 4719331553791 |
---|---|
MPN | GP-P650G |
