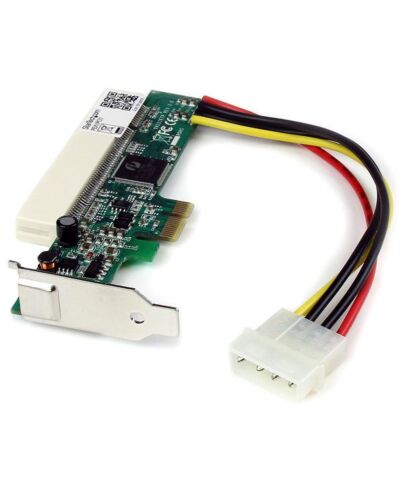

StarTech.com PCI Express to PCI Adapter Card
£38.29
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Install half-height/low profile PCI interface cards in a standard PCI Express expansion slot
This PCIe to PCI Adapter Card lets you use low profile PCI expansion cards in a server or desktop motherboard PCI Express slot. Compliant with PCI Express Specification 1.0a and PCI Specification 2.2, the adapter card connects through a PCIe 1x slot to provide a low profile PCI slot in its place. A spare full size bracket for PCI Express card is also included for use in larger desktop or server PCI Express slots.
A versatile solution, the adapter card converts PCIe to PCI or PCI-X; a built-on LP4 power connector links the card to the computer power supply, allowing you to install universal voltage PCI cards (3.3V/5V).
The adapter card offers an economical solution that lets you extend the usability of older or extra PCI Bus cards in newer PCIe capable systems.
To ensure suitable installation, the PCIe/PCI adapter features an innovative bracket design that adapts and secures the low profile PCI or PCI-X card into the converted slot.
The StarTech.com Advantage
This PCIe to PCI Adapter Card lets you use low profile PCI expansion cards in a server or desktop motherboard PCI Express slot. Compliant with PCI Express Specification 1.0a and PCI Specification 2.2, the adapter card connects through a PCIe 1x slot to provide a low profile PCI slot in its place. A spare full size bracket for PCI Express card is also included for use in larger desktop or server PCI Express slots.
A versatile solution, the adapter card converts PCIe to PCI or PCI-X; a built-on LP4 power connector links the card to the computer power supply, allowing you to install universal voltage PCI cards (3.3V/5V).
The adapter card offers an economical solution that lets you extend the usability of older or extra PCI Bus cards in newer PCIe capable systems.
To ensure suitable installation, the PCIe/PCI adapter features an innovative bracket design that adapts and secures the low profile PCI or PCI-X card into the converted slot.
The StarTech.com Advantage
Specifications
Ports & interfaces
Host interface*
PCIe
Output interface*
PCI 32-bit
Design
Product colour
Red
Certification
CE, FC, ROHS
Features
Chipset
PERICOM PI7C9X110BNBE
Operational conditions
Operating temperature (T-T)
0 - 85 °C
Weight & dimensions
Width
70 mm
Depth
135 mm
Height
20 mm
Weight
52 g
Packaging data
Package width
175 mm
Packaging data
Package depth
144 mm
Package height
32 mm
Package weight
121 g
Logistics data
Harmonized System (HS) code
84733020
Other features
Ports quantity
1
I/O ports
1x PCI 32-bit
Platform
PC
Connectivity technology
Wired
Form factor
LP/ST
Mac compatibility
No
Compatible operating systems
Windows 2000/XP/Vista
Power requirements
3.3V
Additional Information
| EAN/UPC | 0065030834629 |
|---|---|
| MPN | PEX1PCI1 |
