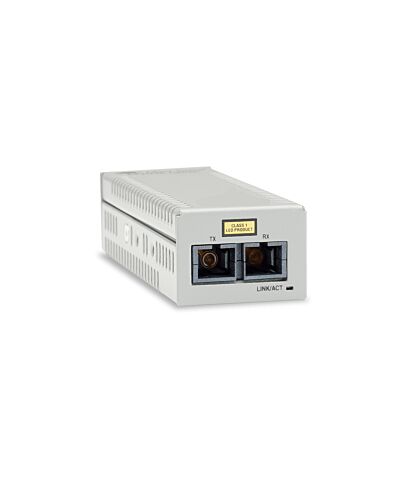

Allied Telesis AT-DMC100/SC-30 network media converter 100 Mbit/s 1310 nm Multi-e Grey
£108.24
Allied Telesis AT-DMC100/SC-30, 100 Mbit/s, 100Base-TX, 100Base-FX, IEEE 802.1Q, Fast Ethernet, 100 Mbit/s
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Fast Ethernet to Fiber Desktop Media Converter with USB power
This desktop media converter features 100TX to 100FX conversion with multi-e SC fiber connector supporting a distance up to 2km. At just 1.25 inches wide × 3.6 inches deep × 0.85 inches high, this media converter can easily fit into the palm of a hand.
This desktop media converter features 100TX to 100FX conversion with multi-e SC fiber connector supporting a distance up to 2km. At just 1.25 inches wide × 3.6 inches deep × 0.85 inches high, this media converter can easily fit into the palm of a hand.
Specifications
Network
Maximum data transfer rate*
100 Mbit/s
Converter input interface
100Base-TX
Converter output interface
100Base-FX
Networking standards
IEEE 802.1Q
Ethernet interface type
Fast Ethernet
Data transfer rate
100 Mbit/s
Packet forwarding rate (10 Mbps)
14880 pps
Packet forwarding rate (100 Mbps)
148800 pps
Packet forwarding rate (1 Gbps)
1488000 pps
VLAN support
Yes
Auto MDI/MDI-X
Yes
Duplex system
Full, Half
Performance
Maximum transfer distance*
2000 m
Wavelength*
1310 nm
Fiber e structure
Multi-e
Fiber cable diameters supported (core/cladding)
50/125,62.5/125 µm
Tx power (min)
-22.5 dBmW
Tx power (max)
-14 dBmW
Rx power (min)
-32 dBmW
Rx power (max)
-34 dBmW
Features
Internal*
No
LED indicators
Yes
Product colour
Grey
Ports & interfaces
Connectivity technology
Wired
Fiber optic connector*
SC
Power
Power consumption (typical)
1.5 W
Weight & dimensions
Width
31.8 mm
Depth
91.4 mm
Height
21.6 mm
Weight
113 g
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 65 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
Operating altitude
0 - 3048 m
Additional Information
| EAN/UPC | 767035206622 |
|---|---|
| MPN | AT-DMC100/SC-30 |
| BRAND | ALLIED TELESIS |
