Networking

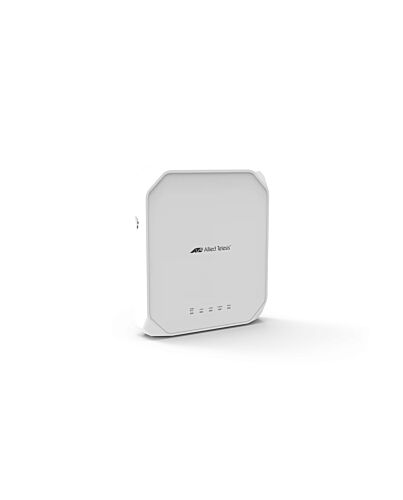

Allied Telesis AT-TQ6702 GEN2-00 2401.9 Mbit/s White Power over Ethernet (PoE)
£1,270.15
Allied Telesis AT-TQ6702 GEN2-00, 2.4 GHz, 5 GHz, 2401.9 Mbit/s, 802.1x RADIUS, SSID, WEP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3, WPA3-Enterprise, 10,100,1000,2500,5000 Mbit/s
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Key Features
- 802.11ax (Wi-Fi 6) delivers four times the performance of the previous Wi-Fi standard, enabling immersive-experience applications and future capacity for connected IoT devices
- Improved capacity and throughput from increased multi-client connectivity intelligence – powered by OFDMA and bi-directional Multi-User MIMO technology
- Automatically optimized wireless coverage and connectivity for a superior user experience with Autonomous Wave Control™ (AWC)
- Enable maximum performance and seamless roaming in Hybrid mode with simultaneous multi-channel and single-channel (Channel Blanket) operation*
- Plug-and-play network growth using wireless uplinks with AWC Smart Connect*
- Provide high-speed backbone connectivity with 2 x Multi-Gigabit uplink ports (1/2.5/5G) to remove bottlenecks and maximize data throughput
- Centralized management and monitoring of your Wi-Fi network with AWC in Vista Manager, or use the web-based GUI for easy standalone AP management
- Manage and track user devices as they move around the building floor and between floors with the wireless Multi-Dimensional Exchange (MDX) which enables device tracking in real-time and full history for security or auditing purposes
- Flexible deployment with Virtual APs with Multiple SSIDs
- Easy user access management with Captive Portal
Specifications
Features
2.4 GHz*
Yes
5 GHz*
Yes
6 GHz*
No
Maximum data transfer rate*
2401.9 Mbit/s
Ethernet LAN data rates
10,100,1000,2500,5000 Mbit/s
Frequency band
2.4 GHz
Networking standards
IEEE 802.11ax, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Cabling technology
10/100/1000Base-T(X)
MIMO
Yes
MIMO type
Multi User MIMO
Wi-Fi Multimedia (WMM)/(WME)
Yes
Fast roaming
Yes
VLAN support
Yes
Flow control support
Yes
Wireless isolation
Yes
Band steering
Yes
Airtime Fairness (ATF)
Yes
Quality of Service (QoS) support
Yes
Security
Security algorithms*
802.1x RADIUS, SSID, WEP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3, WPA3-Enterprise
MAC address filtering
Yes
Service Set Identifier (SSID) features
Hidden SSID
Auto Wireless Distribution System (WDS)
Yes
Remote Authentication Dial-In User Service (RADIUS)
Yes
Protocols
DHCP client
Yes
Management protocols
SNMPv1, v2c, v3
Management features
Web-based management
Yes
Syslog
Yes
Firmware upgradeable
Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports*
2
Power
Power over Ethernet (PoE)*
Yes
AC input voltage
100 - 240 V
Power consumption (typical)
19 W
Power consumption (max)
24 W
Design
Placement*
Wall
Product colour*
White
Cable lock slot
Yes
Cable lock slot type
Kensington
LED indicators
Yes
Antenna
Antenna type*
Internal
Antenna direction type
Omni-directional
Antenna gain level (max)
5.93 dBi
Weight & dimensions
Width
200 mm
Depth
45 mm
Height
240 mm
Weight
1.2 kg
Packaging content
Quantity per pack
1 pc(s)
Operational conditions
Operating relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-25 - 70 °C
Storage relative humidity (H-H)
5 - 95%
Operating altitude
0 - 3048 m
Sustainability
Sustainability compliance
Yes
Logistics data
Export Control Classification Number (ECCN)
5A992C
Harmonized System (HS) code
8517.62.0050
Additional Information
| EAN/UPC | 767035224589 |
|---|---|
| MPN | AT-TQ6702 GEN2-00 |
| BRAND | ALLIED TELESIS |
