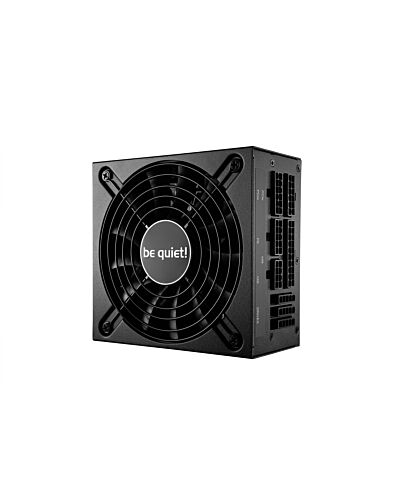

be quiet! SFX L Power power supply unit 600 W 20+4 pin ATX Black

£94.81
be quiet! SFX L Power, 600 W, 100 - 240 V, 650 W, 50 - 60 Hz, 10 A, Active
In stock
  • Immediately available
  • Discreet Packaging
  • Free Shipping

Product Details

Description

Compact and Silent Energy

be quiet! SFX L Power 600W is especially recommended for mini ITX PCs and compact gaming systems. It performs well beyond the ordinary, with a great combination of quietness, features, reliability and efficiency.

POWERFUL, RELIABLE AND STABLE
A strong partner for Mini ITX and compact gaming PCs
The SFX L Power supplies CPUs and GPUs with steady and dependable power thanks to a stable 12V-rail, high quality Japanese capacitors and innovative technologies such as LLC, Synchronous Rectifier and DC-to-DC conversion. 4 PCIe connectors to support multi-GPU setups.

QUIET OPERATION FOR COMPACT SYSTEMS
Optimized for low-noise operation
This PSU is perfect for compact gaming PC or HTPC users who are looking for an SFX PSU that is fitted with a 120mm fan. This model includes a temperature-controlled fan. The SFX L Power was built to be very silent thanks to the fan technology used and it produces little wasted heat.

80 PLUS® GOLD CERTIFICATION
Very high operating efficiency
SFX L Power 600W is certified 80 PLUS Gold with an efficiency rating of up to 92% – a truly outstanding level for this class of PSU. The most compelling benefit: lower power consumption and consequently lower costs with cooler and quieter operation.

MODULAR AND FLAT CABLES
Highly compatible and convenient
Entirely modular cables are enhanced by premium black flat cables. This simplifies the installation and keeps the system tidy.

SUPER VERSATILE INSTALLATION
Adapts to your individual requirements
This power supply is particularly versatile in deployment thanks to the SFX-to-ATX adapter bracket provided. Not only does it fit into cases with an SFX form factor, but can also be installed in a few simple steps into larger ATX cases.

Key Features

  • 80PLUS® Gold certification with up to 92% power conversion efficiency
  • Multi-GPU support with four PCIe connectors
  • Full cable management for build flexibility and convenient usage
  • Silent, temperature-controlled 120mm high-quality fan
  • LLC, Synchronous Rectifier (SR) and DC-to-DC power conversion circuit design supports stability and efficiency
  • High-quality Japanese capacitors for maximum reliability and operating life
  • Powerful 12V-rail design for high stability and performance
  • SFX-to-ATX adapter bracket allows flexible use with larger case sizes
  • Black flat cables of up to 80cm for improved cooling
  • Full suite of top safety features
  • Product conception, design and quality control in Germany

Reasons To Buy

MODULAR AND FLAT CABLES

Entirely modular cables are enhanced by premium black flat cables. This simplifies the installation and keeps the system tidy.

SUPER VERSATILE INSTALLATION

This power supply is particularly versatile in deployment thanks to the SFX-to-ATX adapter bracket provided. Not only does it fit into cases with an SFX form factor, but can also be installed in a few simple steps into larger ATX cases.

Specifications

Power

Total power*
600 W
Peak power
650 W
AC input voltage*
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
10 A
Power factor
0.99
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
110 W
Combined power (+12V)
600 W
Combined power (+5V)
110 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
22 A
Max output current (+12V)
50 A
Max output current (+5V)
22 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
3 A
Hold time
16.8 ms
Efficiency
92%
Power protection features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector*
20+4 pin ATX
Motherboard power cable length
30 cm
Number of SATA power connectors
6
Number of PATA power connectors
3
PCI Express power connectors (6+2 pin)
4
PCI Express power cable length
40 cm
CPU power connector (4+4 pin)
Yes
CPU power cable length
40 cm
Cabling type
Fully-Modular

Performance

80 PLUS certification*
80 PLUS Gold
Supported motherboard form factors
Mini-ITX
Purpose*
PC
Power supply unit (PSU) form factor*
SFX
ATX version
2.4
Silent mode
Yes

Performance

Bearing technology
Sleeve

Design

Product colour
Black
Fan diameter
12 cm
Number of fans
1 fan(s)
On/off switch
Yes

Certificates

Compliance certificates
RoHS
Certification
CE, CB, TÜV, FCC, cTUVus, RCM

Weight & dimensions

Width
125 mm
Depth
130 mm
Height
64 mm
Weight
1.16 kg

Packaging data

Manual
Yes
Package width
205 mm
Package depth
220 mm
Package height
80 mm
Package weight
2.04 kg
Package type
Box

Technical details

Sustainability certificates
ENERGY STAR

Logistics data

Master (outer) case width
430 mm
Master (outer) case length
430 mm
Master (outer) case height
240 mm
Master (outer) case gross weight
21.5 kg
Harmonized System (HS) code
84733020
Products per master (outer) case
10 pc(s)

Other features

Screws included
Yes
Cable ties included
Yes
Noise level (silent mode, <30%)
9.9 dB
Noise level (quiet mode, 50%)
14.5 dB
Noise level (full-load mode, 100%)
28.7 dB

Additional Information

More Information
EAN/UPC 4260052187135
MPN BN239
