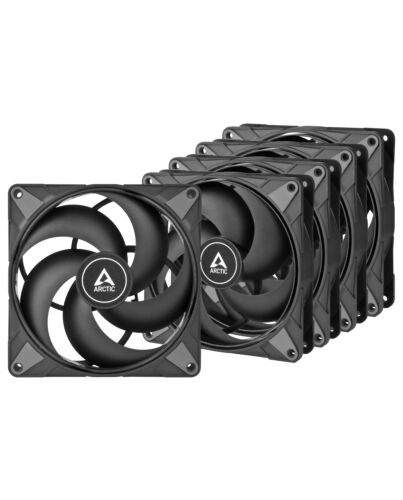

ARCTIC P14 Max - 140 mm High Speed PWM Fan | 5 Pieces

Name: ARCTIC P14 Max - 140 mm High Speed PWM Fan | 5 Pieces
Brand: ARCTIC
SKU: MAZ-0000030829
Price: 30.35 GBP
Availability: OutOfStock

Be the first to review this product

£30.35

ARCTIC P14 Max - 140 mm High Speed PWM Fan | 5 Pieces, Fan, 14 cm, 400 RPM, 2800 RPM, 161.4 m³/h, Black

Out of stock

Immediately available
Discreet Packaging
Free Shipping

Product Details

Description

ARCTIC’s versatile assortment of Fans is both quiet and powerful. We have the right options for any application or need, in sizes f 80 to 140 mm. Plus, our Fans are equipped with state-of-the-art engine technology, innovative fan blades and high-quality bearings, making them particularly durable and efficient.

Reasons To Buy

Extremely Wide Speed Range

Building up on the success of the P14 PWM, the P14 Max extends the controllable speed to an impressively wide range f 400 rpm up to 2800 rpm. This enables a quiet operation when low airflow is needed and also an unprecedented level of performance on heatsinks and radiators. The P14 Max provides a significant performance boost to existing air and water cooling solutions.

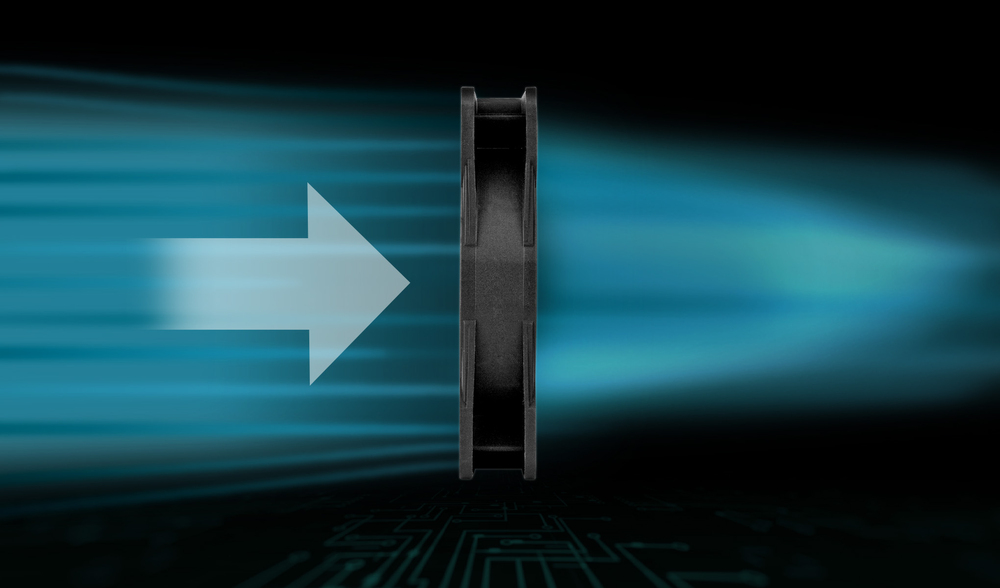

Maximum Performance — Without Compises

The P14 Max delivers focused airflow and high static pressure, making it suitable for all scenarios. The fan is optimised for use on radiators, heat sinks, pinholes and mesh. Therefore, the P14 Max is the ideal fan for enthusiasts and professionals who are looking for maximum performance with a long service life.

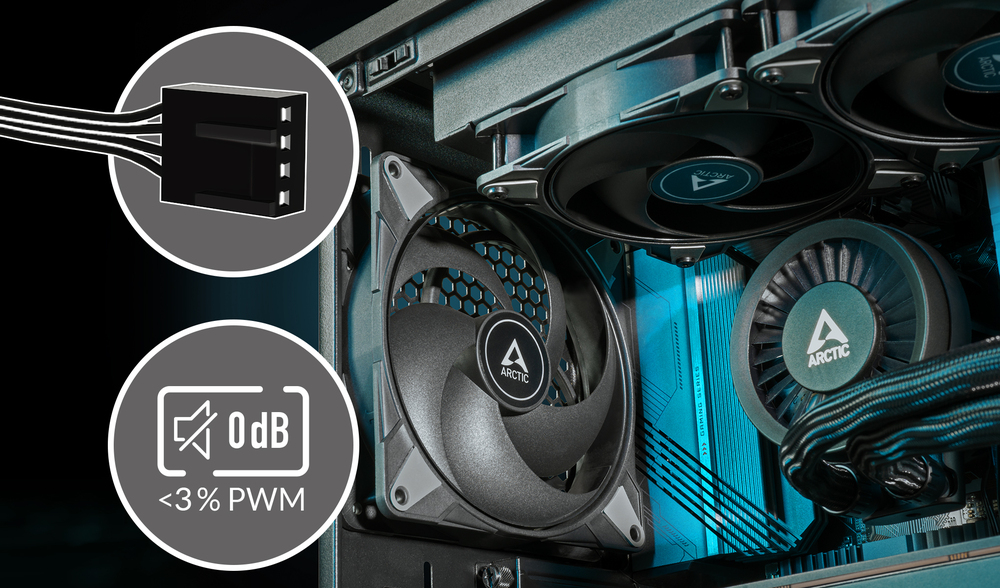

0 dB e — Zero rpm

The fan speed can be throttled down to standstill via PWM. This allows silent operation in IDLE and at the same time guarantees maximum performance when required. Thus, the P14 Max allows an incomparably dynamic adjustment of the speed, so that the airflow can be perfectly regulated for every case.

Improved Stability

The P14 Max features a closed fan wheel design. The advantage of this fan wheel combination is a pressure stability without compise. In scenarios with high pressure resistances and higher speeds, the force effect is distributed uniformly over the entire fan wheel and enables low-vibration rotation while maintaining high static pressure.

Maximum Smoothness, Minimum Vibration

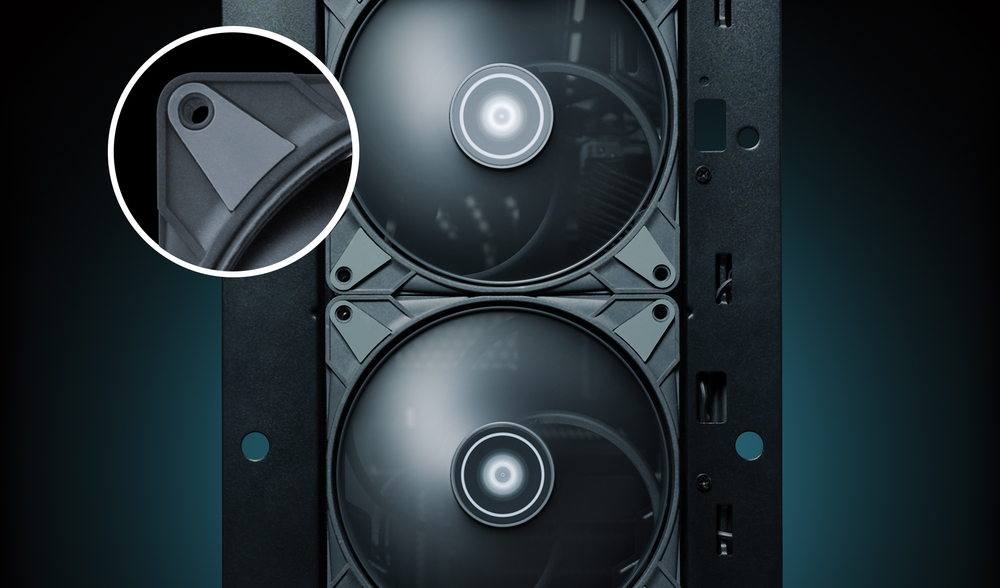

Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration f commutation of a regular DC-motor without filter. The rubber pads mounted at the corners additionally dampen the residual vibrations caused by the higher revolutions.

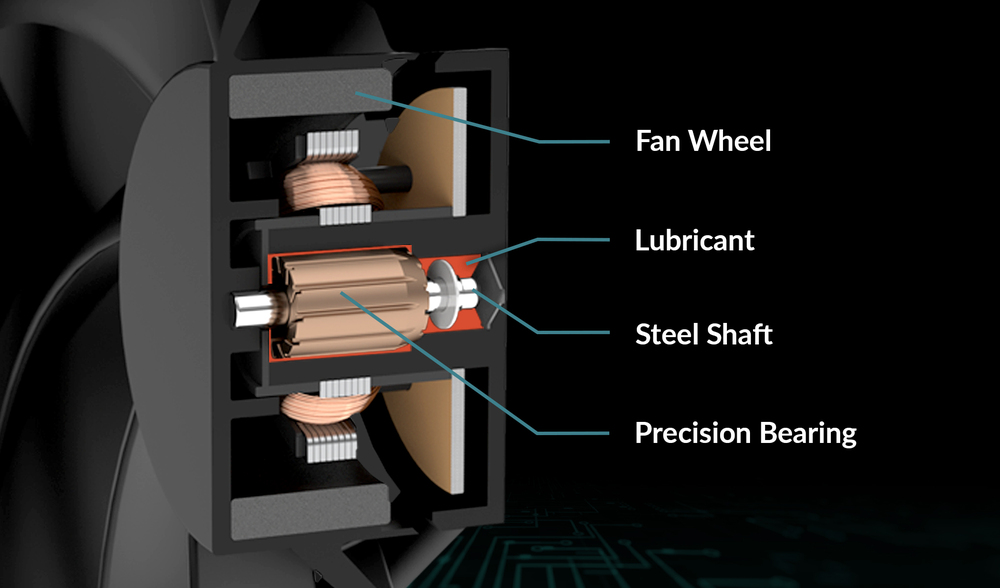

Virtually Silent due Fluid Dynamic Bearing

As a special feature, the P14 Max is equipped with ARCTIC's proven Hydrodynamic Bearing. This enables the virtually silent operation at low speeds that customers have been asking for. At maximum speed, brute performance is still guaranteed. Although these bearings tend to wear out, ARCTIC does not compise on durability and still offers the 6-year warranty.

Quality You Can Rely On

To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how we can permanently improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality, but also in terms of durability. This is a certainty that we are happy to pass on to our customers, which is why we give a 6-year manufacturer's guarantee.

Specifications

Performance

Suitable location*

Computer case

Type*

Fan

Fan diameter

14 cm

Supported processor sockets

Not supported

Compatible processor series

Not supported

Rotational speed (min)

400 RPM

Rotational speed (max)

2800 RPM

Maximum airflow

95 cfm

Airflow

161.4 m³/h

Maximum air pressure

4.18 mmH2O

Pulse-width ulation (PWM) support

Yes

Bearing type

Fluid Dynamic Bearing (FDB)

Operating temperature (T-T)

0 - 40 °C

Design

Product colour*

Black

Number of fans

5 fan(s)

Number of fan blades

Fan connector

4-pin

Power

Voltage

12 V

Starting voltage

3.9 V

Rated current

0.35 A

Weight & dimensions

Width

140 mm

Depth

140 mm

Height

27 mm

Weight

254 g

Cable length

0.4 m

Package width

160 mm

Package depth

160 mm

Package height

160 mm

Package weight

1.43 kg

Packaging content

Package type

Box

Screws included

Yes

Number of screws

Additional Information

More Information
EAN/UPC	4895213704335
MPN	ACFAN00290A
BRAND	ARCTIC
