Industrial

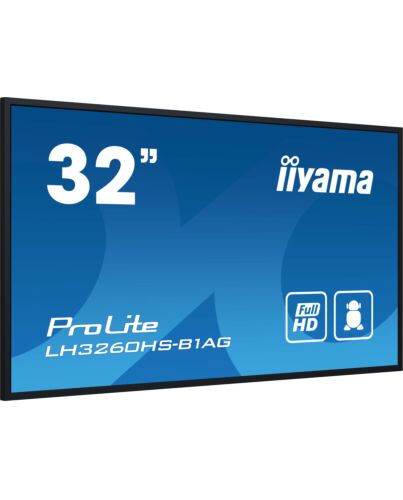

iiyama LH3260HS-B1AG Signage Display Digital A-board 80 cm (31.5") LED Wi-Fi 500 cd/m² Full HD Black
£348.48
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Elevate your visual communication with the LH3260HS-B1AG and the new possibilities for your business. This 500cd/m² high brightness display is a powerful business tool that takes your marketing and communication efforts to the next level. With its Android 11 OS, iiSignage² content management software, Signal FailOver and EShare features, this display offers a straightforward user experience, making content creation, management, and sharing a breeze. This ELED VA display consumes significantly less power compared to DLED IPS while maintaining the same level of brightness. Its versatile orientation, sleek design, and 24/7 reliability ensure it seamlessly integrates into any business environment. Whether it's used in retail, corporate, hospitality, or educational settings, the LH3260HS-B1AG will undoubtedly captivate your audience and leave a lasting impression.
Key Features
- ANDROID OS
- IISIGNAGE
- SIGNAL FAILOVER
- MEDIA PLAYER
Reasons To Buy

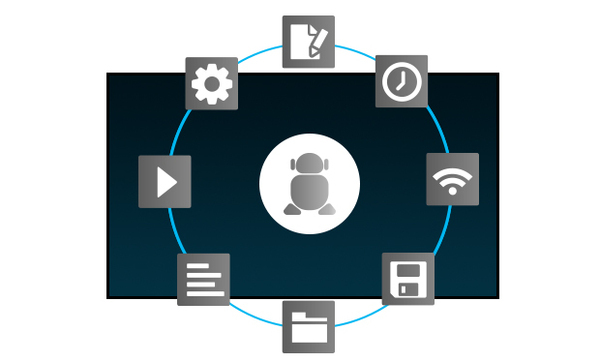

Android OS

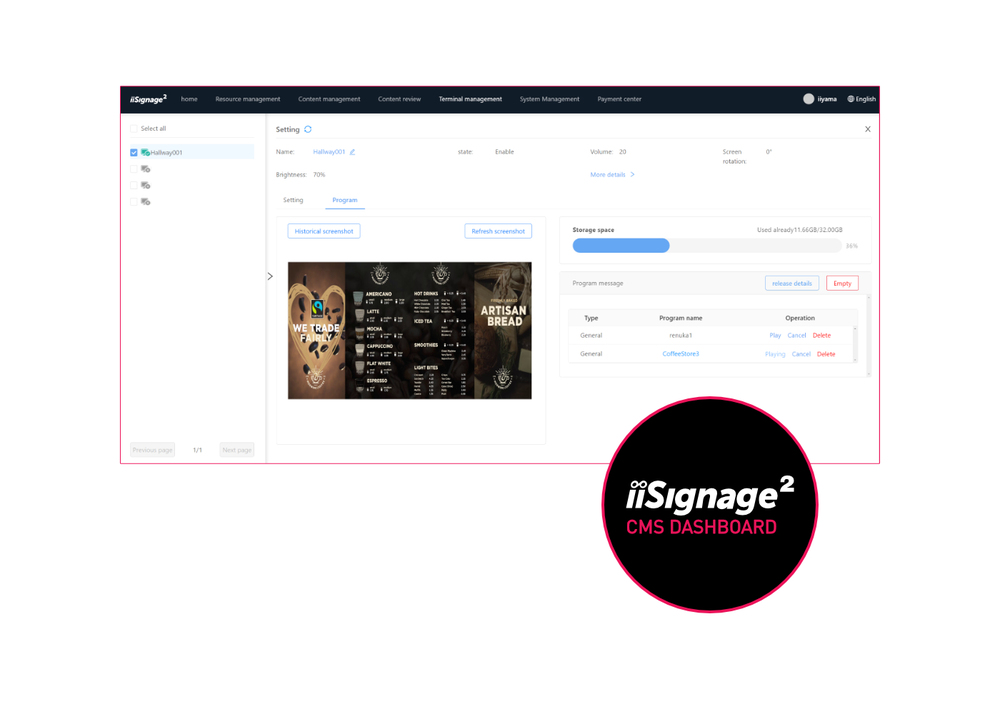

iiSignage²
Signal FailOver
Ultra Slim

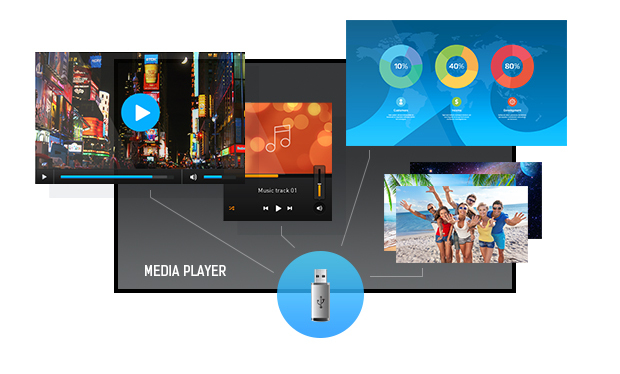

With 50 percent depth saving over similar els, the jaw-dropping and best in class 40mm total depth display can be installed discretely and elegantly in all areas.Media player
Specifications
Display
Panel type
VA
Display diagonal*
80 cm (31.5")
Display technology*
LED
Display resolution*
1920 x 1080 pixels
Display brightness*
500 cd/m²
HD type*
Full HD
Touchscreen*
No
Native aspect ratio
16:9
Response time
8 ms
Contrast ratio (typical)
4000:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
16.7 million colours
Pixel pitch
0.364 x 0.364 mm
Active display area (W x H)
698.4 x 392.85 mm
Display diagonal (metric)
80 cm
Horizontal scan range
28 - 160 kHz
Native refresh rate
60 Hz
Haze rate
25%
Surface hardness
3H
Ports & interfaces
HDMI ports quantity*
3
HDMI version
2.0
DVI port*
No
USB port*
Yes
USB ports quantity
2
USB version
2.0
Ethernet LAN (RJ-45) ports
1
Audio (L/R) in
1
Audio (L/R) out
1
RS-232C
Yes
Remote (IR) input
1
Audio
Built-in speaker(s)*
Yes
Number of built-in speakers
2
RMS rated power
20 W
Design
Product design*
Digital A-board
Placement supported*
Indoor
Orientation
Horizontal/Vertical
Product colour*
Black
VESA mounting*
Yes
Panel mounting interface
150 x 200 mm
Bezel width (bottom)
9 mm
Bezel width (side)
9 mm
Bezel width (top)
9 mm
Bezel colour
Black
Anti-glare screen
Yes
Performance
Purpose*
Universal
On Screen Display (OSD)
Yes
On Screen Display (OSD) languages
Traditional Chinese, Czech, Danish, German, English, Spanish, Finnish, French, Italian, Japanese, Norwegian, Dutch, Polish, Russian, Swedish
Operating hours (hours/days)
24/7
HDCP
Yes
HDCP version
1.4/2.2
Mean time between failures (MTBF)
50000 h
Power
Power consumption (typical)*
40 W
Power consumption (standby)*
0.5 W
Power consumption (off)
0.3 W
Energy efficiency class (SDR)
G
Energy efficiency class (HDR)
Not available
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Computer system
Computer system*
No
Built-in processor*
Yes
Processor manufacturer
ARM
Processor family
ARM Cortex
Processor el
A53
Processor architecture
ARM Cortex-A53
Processor cores
4
Internal memory
2 GB
On-board graphics card el
ARM Mali-G52
Internal storage capacity
16 GB
Operating system installed
Android 11
Weight & dimensions
Display width
724.6 mm
Display depth
40 mm
Display height
419.8 mm
Display weight
5.4 kg
Width
724.6 mm
Depth
40 mm
Height
419.8 mm
Weight
5.4 kg
Packaging data
Package width
795 mm
Package depth
115 mm
Package height
520 mm
Package weight
7.3 kg
Packaging content
Remote control included
Yes
Batteries included
Yes

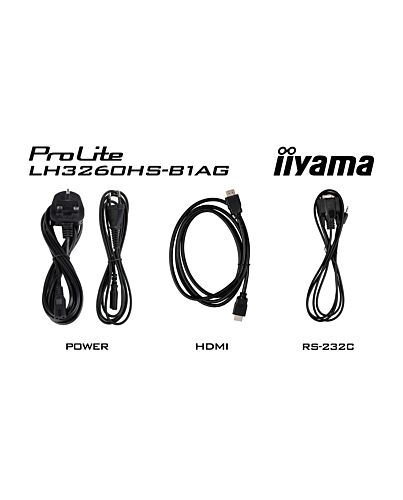

Cables included
AC, HDMI, RS-232
Mounting kit
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Certificates
Certification
CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Network
Ethernet LAN*
Yes
Wi-Fi*
Yes
Wi-Fi standards
Wi-Fi 5 (802.11ac)
Technical details
Playback media
✓
User controls
picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, colour temperature, colour control, over scan, picture reset), screen (zoom e, custom zoom, screen reset), Audio (balance, treble, bass, volume, audio out, maximum volume, minimum volume, mute, audio out sync, speaker setting, audio reset), configuration 1 (switch on state, panel saving, RS232-routing, boot on source, WOL, configuration 1 reset, factory reset), Configuration 2 (OSD timeout, OSD H-Position, OSD V-position, system rotation, information OSD, logo and animation logo setting, animation setting, monitor ID, monitor information, HDMI version, configuration 2 reset), advanced option (IR control, off timer, schedule, HDMI with one wire, HDMI with one wire power off, FailOver, language, OSD transparency, power saving, advanced option reset), Android settings (network & internet, apps & notifications, display, signage display, security, language & input, date & time, about device)
Sustainability certificates
ErP
Compliance certificates
CB, CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Other features
Quick start guide
Yes
Power supply type
Internal
Additional Information
| EAN/UPC | 4948570122288 |
|---|---|
| MPN | LH3260HS-B1AG |
| BRAND | Iiyama |
