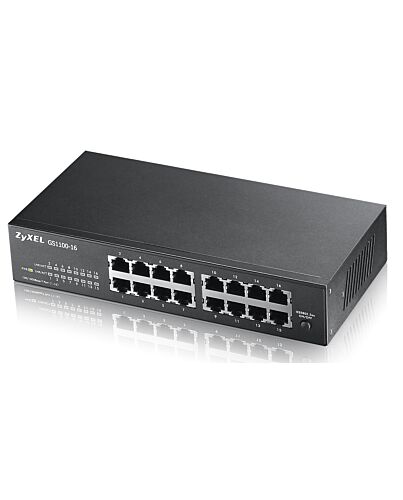

Zyxel GS1100-16 Unmanaged Gigabit Ethernet (10/100/1000)
£53.90
Zyxel GS1100-16, Unmanaged, Gigabit Ethernet (10/100/1000), Rack mounting, Wall mountable
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Plug and play connectivity
Simply unbox the GS1100 unmanaged switch, you can enjoy instant plug-n-play Gigabit connectivity without any additional settings required with auto-negotiation and auto MDI/MDI-X. Supporting 802.1p prioritization and jumbo frame, the switch ensures smooth voice and video traffic for your office network.
Whisper quiet operation
The GS1100 Series has fanless design that ensures silent operation in small or quiet office environments. The GS1100-10HP PoE el is specifically designed with an external power adapter that eliminates the need for an additional fan to cool down the device, making it perfect for quiet PoE deployments.
Energy saving
The GS1100 features Energy Efficient Ethernet(IEEE 802.3az) which automatically detects network traffic and adjusts power consumption dynamically. Zyxel’s green features also adjust power consumption by detecting the link status and cable length reducing business operating expenses.
Simply unbox the GS1100 unmanaged switch, you can enjoy instant plug-n-play Gigabit connectivity without any additional settings required with auto-negotiation and auto MDI/MDI-X. Supporting 802.1p prioritization and jumbo frame, the switch ensures smooth voice and video traffic for your office network.
Whisper quiet operation
The GS1100 Series has fanless design that ensures silent operation in small or quiet office environments. The GS1100-10HP PoE el is specifically designed with an external power adapter that eliminates the need for an additional fan to cool down the device, making it perfect for quiet PoE deployments.
Energy saving
The GS1100 features Energy Efficient Ethernet(IEEE 802.3az) which automatically detects network traffic and adjusts power consumption dynamically. Zyxel’s green features also adjust power consumption by detecting the link status and cable length reducing business operating expenses.
Key Features
- IEEE 802.3 10BASE-T Ethernet
- IEEE 802.3u 100BASE-TX Ethernet
- IEEE 802.3ab 1000BASE-T Ethernet
- IEEE 802.3az EEE support
- IEEE 802.3x flow control
- IEEE 802.3z 1000BASE-X
- IEEE 802.1p CoS
Specifications
Management features
Switch type*
Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity*
16
Basic switching RJ-45 Ethernet ports type*
Gigabit Ethernet (10/100/1000)
Network
Networking standards*
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support*
No
Cable types supported
Cat3, Cat4, Cat5, Cat5e, Cat6
Flow control support
Yes
Auto MDI/MDI-X
Yes
Active link detection
Yes
Data transmission
Switching capacity*
32 Gbit/s
Forwarding rate
23.8 Mpps
MAC address table*
8000 entries
Jumbo frames support
Yes
Jumbo frames
9216
Packet buffer memory
0.5 MB
Design
Rack mounting*
Yes
LED indicators
Activity, Link, Power
Wall mountable
Yes
Electagnetic compatibility
CE, FCC, RCM, ICES-003, BSMI
Performance
Fanless
Yes
Mean time between failures (MTBF)
1156942 h
Power
Power supply included*
Yes
Power
Number of power supply units
1
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (max)
10 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)*
No
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
10 - 95%
Heat dissipation
32.86 BTU/h
Weight & dimensions
Width
215 mm
Depth
133 mm
Height
42 mm
Weight
19.8 kg
Packaging content
Cables included
AC
Rack mount kit
Yes
Packaging data
Package type
Box
Certificates
Certification
LVD, BSMI
RoHS, REACH
Logistics data
Harmonized System (HS) code
85176990
Additional Information
| EAN/UPC | 4718937614073 |
|---|---|
| MPN | GS1100-16-GB0103F |
| BRAND | Zyxel |
