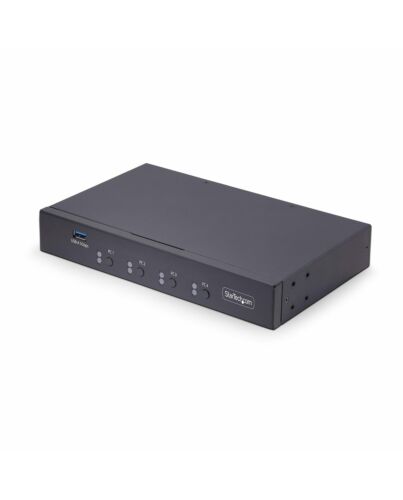

StarTech.com 4-Port KM Switch with Mouse Switching, USB Switch for Keyboard/Mouse, 3.5mm/USB Audio, Peripheral Sharing for 4 Computers, TAA Compliant
£257.05
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Control up to four computers with a single keyboard and mouse
This Keyboard and Mouse (KM) Switch enables switching a single keyboard and mouse between multiple computers using mouse roaming, allowing users to seamlessly move the cursor across multiple screens (i.e., one monitor per computer).
Mouse Switching
Switch between computers by moving the mouse between monitors, enabling uninterrupted workflow and increased efficiency. Hotkey and push-button switching are universally compatible. Mouse Switching is supported by most major desktop operating systems, including Windows, macOS, and Linux.
Preset Monitor Layouts
To accommodate various physical monitor setups, there are four preset display configurations available. This allows for smooth mouse movement across host monitors.
Thoughtful Design
Hotkeys enable listening to audio from one computer while controlling another. USB audio and 3.5mm pass-through are available, and LEDs provide visual port selection status, while an audible buzzer confirms hotkey selection.
Note: On computers with multiple monitors connected with Mouse Switching/Roaming enabled, mouse/keyboard operation is limited to the primary display
The StarTech.com Advantage
This Keyboard and Mouse (KM) Switch enables switching a single keyboard and mouse between multiple computers using mouse roaming, allowing users to seamlessly move the cursor across multiple screens (i.e., one monitor per computer).
Mouse Switching
Switch between computers by moving the mouse between monitors, enabling uninterrupted workflow and increased efficiency. Hotkey and push-button switching are universally compatible. Mouse Switching is supported by most major desktop operating systems, including Windows, macOS, and Linux.
Preset Monitor Layouts
To accommodate various physical monitor setups, there are four preset display configurations available. This allows for smooth mouse movement across host monitors.
Thoughtful Design
Hotkeys enable listening to audio from one computer while controlling another. USB audio and 3.5mm pass-through are available, and LEDs provide visual port selection status, while an audible buzzer confirms hotkey selection.
Note: On computers with multiple monitors connected with Mouse Switching/Roaming enabled, mouse/keyboard operation is limited to the primary display
The StarTech.com Advantage
Key Features
- SEAMLESS MOUSE SWITCHING: Instantly and automatically switch computers by moving the mouse between monitors, enabling uninterrupted workflow and increased efficiency; Hotkey and push-button switching options are also available
- SCREEN LAYOUT PRESETS: Monitor layouts controlled via hotkeys are designed to accommodate a variety of physical monitor setups, allowing for seamless mouse movement across host monitors; 4 different preset display configurations available
- USB CONNECTIVITY: Supports up to three USB Human Interface Device (HID) peripherals and two USB 3.2 Gen 1 (5Gbps) devices; Ideal for environments such as control rooms, security facilities, server rooms, and financial operations
- THOUGHTFUL DESIGN: Independent audio switching allows users to listen to audio from one computer while controlling another; USB audio and 3.5mm pass-through available; LEDs provide visual port selection status; Audible buzzer for hotkey confirmation
- UNIVERSAL COMPATIBILITY: Mouse Roaming is supported by most major desktop operating systems including Windows, macOS, and Linux; Hotkey and push-button switching are OS independent; Works with all hardware platforms including Intel and AMD
Specifications
Ports & interfaces
Number of computers controlled*
4
Keyboard port type*
USB
Mouse port type*
USB
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
4
Console ports*
3.5mm headphone, 3.5mm mic, USB A
USB 2.0 Type-A hub ports quantity
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
2
Audio connections
Yes
Headphone outputs
6
Number of microphone inputs
1
DC-in jack
Yes
Performance
HD type*
Not supported
Data transfer rate (max)
5 Gbit/s
Chipset
GL3523
Design
Product colour*
Black
LED indicators
Yes
Push button
Yes
Hot keys
Yes
Mean time between failures (MTBF)
156000 h
Display
Built-in display*
No
On Screen Display (OSD)
No
Power
Input voltage
100 - 240 V
Input current
0.6 A
Output voltage
12 V
Output current
5 A
External power adapter
Yes
Power
Power plug type
Type M
Compatible power plug types
AU, EU, UK, US
Sustainability
Sustainability compliance
Yes
Compliance certificates
RoHS, Trade Agreements Act (TAA)
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-10 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Weight & dimensions
Width
130 mm
Depth
220 mm
Height
34 mm
Weight
800 g
Packaging data
Package width
295 mm
Package depth
245 mm
Package height
63 mm
Package weight
180 g
Packaging content
Quick installation guide
Yes
Other features
IP control
No
Logistics data
Master (outer) case width
613 mm
Master (outer) case length
510 mm
Master (outer) case height
302 mm
Products per master (outer) case
6 pc(s)
Additional Information
| EAN/UPC | 0065030902250 |
|---|---|
| MPN | P4A20132-KM-SWITCH |
