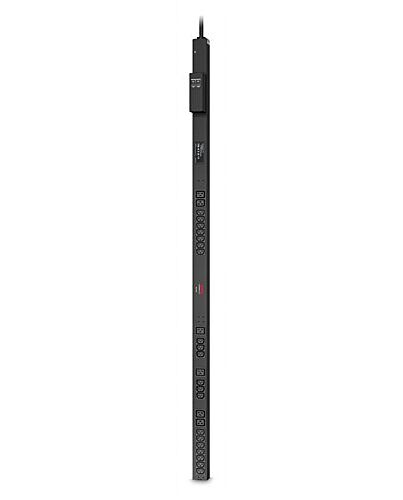

APC AP6009A power distribution unit (PDU) 26 AC outlet(s) Black
£597.50
APC AP6009A, Basic, Vertical, Black, 26 AC outlet(s), C13 coupler, C19 coupler, IEC309
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.
Specifications
Design
PDU types*
Basic
Mounting
Vertical
Product colour
Black
Ports & interfaces
AC outlets quantity*
26 AC outlet(s)
Power plug
IEC309
AC outlet types*
C13 coupler, C19 coupler
Features
Cable length
3.05 m
Power
Nominal input voltage*
230 V
AC input frequency
50 - 60 Hz
Maximum current*
32 A
Nominal output voltage
230 V
Power protection features
Overload
Certificates
Compliance certificates
RoHS
Certification
CE, EAC, IRAM, VDE, REACH
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-15 - 65 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Weight & dimensions
Width
56 mm
Depth
43 mm
Height
1626 mm
Weight
6.18 kg
Packaging data
Package weight
8 kg
Package width
226 mm
Package depth
135 mm
Package height
1875 mm
Additional Information
| EAN/UPC | 731304327783 |
|---|---|
| MPN | AP6009A |
