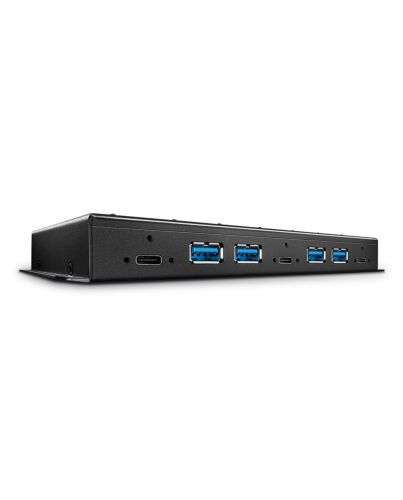

Lindy 7 Port USB 3.2 Gen 2 Metal Hub
£169.57
Lindy 7 Port USB 3.2 Gen 2 Metal Hub, USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, 10000 Mbit/s, Black, Metal, CE, FCC, RoHS, REACH, California Proposition 65
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The Lindy 7 Port USB 3.2 Gen 2 Metal Hub has been designed to provide reliable performance in demanding operating environments at USB 3.2 Gen 2 speeds up to 10 Gbps. This industrial-grade hub features a rugged, all-metal chassis providing excellent EMC protection. With robust metal housing and integrated mounting brackets this hub is the ideal solution for industrial environments. All Type C sockets of the hub allow the connection of single or dual screw USB 3.2 cables which are compliant with USB-IF Type C locking specification.
Each port features individual short circuit protection - and all 7 USB ports support the Battery Charging specification 1.2 with a total charging power of 40 Watts for all 7 ports. The hub can be powered by the included power supply or the terminal block, ensuring flexible, secure and uninterrupted electricity supplies.
Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
Each port features individual short circuit protection - and all 7 USB ports support the Battery Charging specification 1.2 with a total charging power of 40 Watts for all 7 ports. The hub can be powered by the included power supply or the terminal block, ensuring flexible, secure and uninterrupted electricity supplies.
Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
Key Features
- Connects 4 Type A and 3 Type C USB 3.2 Gen 2 devices to a Type C port with SuperSpeed+ data rates up to 10Gbpsandnbsp;
- Hard-wearing USB Hub - Perfect for industrial applications
- Robust metal housing with high EMC protection and integrated brackets for mountingandnbsp;
- Powered by external power supply or terminal block
- 2 year warranty
Specifications
Ports & interfaces
Host interface*
USB 3.2 Gen 2 (3.1 Gen 2) Type-A
Hub interfaces*
USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
3
Ports quantity*
7
DC-in jack
Yes
Features
Data transfer rate*
10000 Mbit/s
Product colour
Black
Housing material
Metal
Certification
CE, FCC, RoHS, REACH, California Proposition 65
Power
Input voltage
16 V
Input current
3 A
Weight & dimensions
Width
184.5 mm
Depth
64.3 mm
Height
20 mm
Weight
700 g
Packaging data
Quantity per pack
1 pc(s)
Package width
260 mm
Package depth
180 mm
Package height
70 mm
Package type
Carton
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Additional Information
| EAN/UPC | 4002888432757 |
|---|---|
| MPN | 43275 |
| BRAND | Lindy |
