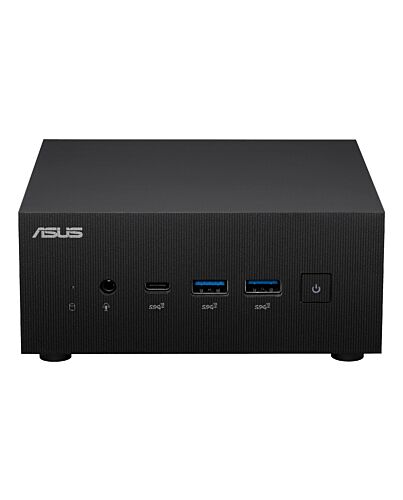

ASUS PN64-BB5000X1TD-NL Black i5-12500H

£529.73
ASUS PN64-BB5000X1TD-NL, Mini PC barebone, GDDR5, Serial ATA III, Ethernet LAN
Out of stock
  • Immediately available
  • Discreet Packaging
  • Free Shipping

Product Details

Description

New Processor Architecture Design
ASUS ExpertCenter PN64 is powered by the new 12th Gen Intel® Core™ CPU featuring a new hybrid processor design. It includes performance-cores (P-cores) dedicated to processing heavy loads and prioritized tasks, as well as efficient-cores (E-cores) catering to background tasks such as web browsing and PowerPoint presentations. This new core design enables PN64 to process multiple tasks simultaneously in the most efficient way possible.

Superior Computing Performance
ASUS ExpertCenter PN64 delivers superior performance, allowing users to get more done effortlessly, with greater efficiency. Compared to the previous generation PN63-S1 el, PN64 offers a 28% boost on overall system performance, making it perfect for multitasking**.

Faster and better DDR5 RAM
ASUS ExpertCenter PN64 is powered by the new 12th Gen Intel® Core™ CPU supporting the next gen memory - DDR5. With DDR5 4800MHz memory that is 1.5X faster and 8% more energy efficient than DDR4 3200MHz memory, PN64 provides excellent performance for daily computing tasks.

Ultrafast PCIe® 4.0 SSD
ASUS ExpertCenter PN64 supports one PCIe® Gen 4 X4 SSD to deliver low-latency data transfers at speeds of up to 8 GB/s, that’s twice the data transfer speeds of PCIe 3.0.

Superfast 2.5 Gbps Ethernet
ASUS ExpertCenter PN64 features next-generation 2.5GBASE-T technology for superfast 2.5 Gbps networking speeds, enabling it to make light work of the most data-intensive tasks.

ern, Space-saving Design
Compact and stylish, ASUS ExpertCenter PN64 has a contempoy look that suits any home or office

Ultra-istic 8K Visuals
ASUS ExpertCenter PN64 delivers breathtaking 8K visuals at 30 frames per second via the configurable standard DisplayPort or DisplayPort over USB-C. Experience a level of detail that’s 4X greater than 4K, or 16X that of traditional FHD output.

USB Power Delivery Input
ASUS ExpertCenter PN64 can draw power f any USB Power Delivery-enabled display or device, eliminating the need for a separate power adapter to create a neater, uncluttered workspace.

4K Resolution & Quad Display Support
ASUS ExpertCenter PN64 can support up to four 4K displays via two HDMI® ports, two DisplayPort™ over USB-C® or other user-configurable ports, without any limitation on the combination used.

Configurable Port
ASUS ExpertCenter PN64 is well-equipped for a wide range of functions and can be used for digital signage, POS systems or intelligent vending machines. The configurable port can be specified with either HDMI, VGA, DisplayPort, or COM ports, as well as 2.5 Gb LAN, for monitors or legacy devices such as barcode scanners and receipt printers.

Padlock Ring for Security
The chassis of ASUS ExpertCenter PN64 can be secured with a standard padlock to prevent access to internal components.

VESA Mount-lockable Design
ASUS ExpertCenter PN64 can even be locked onto a VESA mount for additional security.

Enhanced Software - MyASUS

AI Noise Cancelation
Two-Way AI Noise Cancelation
Filters unwanted noise f the microphone and incoming audio for crystal-clear voice communication.

System Diagnosis
Hardware diagnostic
Scenario check-up
Provides brief descriptions to enable users to identify different situations encountered and select the ideal diagnostic checkup required.

Smart Fan Control
Performance & Quiet es
Gives users the flexibility to use maximum fan speed during heavy loads or switch to a lower speed for silent operation.

Other Functions
WiFi SmartConnect
Optimizes the wireless connection
TaskFirst
Allocate networking bandwidth to specific tasks.
Link to MyASUS
Allows users to connect the computer to a mobile device.

Specifications

Processor

Processor manufacturer
Intel
Processor family
Intel® Core™ i5
Processor generation
12th gen Intel® Core™ i5
Processor el
i5-12500H
Processor cores
12
Processor threads
16
Processor boost frequency
4.5 GHz
Performance cores
4
Efficient cores
8
Built-in processor*
Yes
Performance-core boost frequency
4.5 GHz
Efficient-core boost frequency
3.3 GHz
Processor cache
18 MB
CPU configuration (max)
1

Memory

Memory slots type*
SO-DIMM
Number of memory slots*
2
Supported memory clock speeds
4800 MHz
Supported memory types
GDDR5

Storage

Supported storage drive types*
HDD & SSD
Storage drive sizes supported*
2.5,M.2
SSD form factor
M.2
Storage drive interface
Serial ATA III
Number of storage drives supported
2

Graphics

On-board graphics card*
Yes
Graphics card family
Intel
On-board graphics card el
Intel Iris Xe Graphics
Discrete graphics card el
Not available

Audio

Built-in speaker(s)*
No

Network

Ethernet LAN*
Yes
Wi-Fi*
Yes
LAN controller
Intel WGI225V
Bluetooth
Yes

Ports & interfaces

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2
HDMI ports quantity*
2
HDMI version
2.0
DisplayPorts quantity
1
DisplayPort version
1.4
Combo headphone/mic port
Yes
Ethernet LAN (RJ-45) ports*
1
DC-in jack
Yes

Design

Product colour*
Black
Cable lock slot
Yes
Cable lock slot type
Kensington
VESA mounting
Yes
Product type*
Mini PC barebone

Performance

Trusted Platform ule (TPM)
Yes
Audio chip
tek ALC897

Processor special features

Embedded options available
No
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel Flex Memory Access
Yes
Intel Trusted Execution Technology
Yes
Execute Disable Bit
Yes
Intel Virtualization Technology (VT-x)
Yes

Certificates

Certification
BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI

Software

Operating system installed
No

Weight & dimensions

Width
120 mm
Depth
130 mm
Height
58 mm
Weight
750 g

Additional Information

More Information
EAN/UPC 4711387176955
MPN PN64-B-S5121MD
BRAND ASUS
