Components

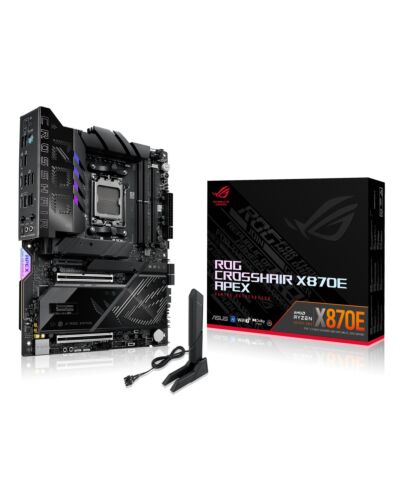

ASUS ROG CROSSHAIR X870E APEX AMD X870E Socket AM5 ATX
£675.80
ASUS ROG CROSSHAIR X870E APEX, AMD, Socket AM5, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, Socket AM5, DDR5-SDRAM, 128 GB
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
ROG Crosshair X870E APEX
The AI PC-ready ROG Crosshair X870E Apex is built for world-record overclocking, courtesy of extensive BIOS features and the exotic cooling of the ROG-exclusive Memory Fan Kit. Beyond its overclocking prowess, it delivers comprehensive support for cutting-edge graphics cards and storage, making it the ultimate platform for AM5 AMD Ryzen™ performance enthusiasts.
The AI PC-ready ROG Crosshair X870E Apex is built for world-record overclocking, courtesy of extensive BIOS features and the exotic cooling of the ROG-exclusive Memory Fan Kit. Beyond its overclocking prowess, it delivers comprehensive support for cutting-edge graphics cards and storage, making it the ultimate platform for AM5 AMD Ryzen™ performance enthusiasts.
Specifications
Processor
Processor manufacturer*
AMD
Processor socket*
Socket AM5
Compatible processor series*
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets
Socket AM5
Memory
Supported memory types*
DDR5-SDRAM
Number of memory slots*
2
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
ECC & Non-ECC
Maximum internal memory*
128 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces*
M.2, SATA III
Number of HDDs supported
4
Number of storage drives supported
9
RAID support
Yes
RAID levels
0, 1, 5, 10
Graphics
Parallel processing technology support*
Not supported
On-board graphics card
No
Internal I/O
USB 2.0 connectors*
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors*
2
USB 3.2 Gen 2x2 connectors
2
Number of SATA III connectors*
4
Front panel audio connector
Yes
Front panel connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of chassis fan connectors
2
EPS power connector (8-pin)
Yes
12V power connector
Yes
RGB LED pin header
Yes
Number of RGB LED pin headers
3
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity*
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity*
5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity*
1
USB4 Gen 3x2 ports quantity
2
Ethernet LAN (RJ-45) ports*
1
PS/2 ports quantity
1
S/PDIF out port
Yes
WiFi-AP antenna jack
1
Network
Ethernet LAN
Yes
Network
Ethernet interface type
5 Gigabit Ethernet
Wi-Fi*
Yes
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Wi-Fi standards
Wi-Fi 7 (802.11be)
Bluetooth
Yes
Bluetooth version
5.4
Features
Motherboard chipset*
AMD X870E
Audio output channels*
7.1 channels
Product colour
Black
Component for*
PC
Motherboard form factor*
ATX
Motherboard chipset family*
AMD
Windows operating systems supported
Windows 11
Expansion slots
PCI Express x1 (Gen 3.x) slots
1
PCI Express x4 (Gen 4.x) slots
1
PCI Express x16 (Gen 4.x) slots
2
PCI Express x16 (Gen 5.x) slots
2
Number of M.2 (M) slots
5
1st M.2 largest key size
2280
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
2280
2nd M.2 highest PCI Express generation
5.0
3rd M.2 largest key size
2280
3rd M.2 highest PCI Express generation
5.0
4th M.2 largest key size
22110
4th M.2 highest PCI Express generation
4.0
5th M.2 largest key size
22110
5th M.2 highest PCI Express generation
4.0
BIOS
BIOS type*
UEFI AMI
BIOS memory size
512 Mbit
Packaging data
Package width
370 mm
Package depth
312 mm
Package height
108 mm
Package weight
4.16 kg
Weight & dimensions
Width
305 mm
Depth
244 mm
Packaging content
Cables included
SATA
Antenna included
Yes
Screws included
Yes
Drivers included
Yes
Additional Information
| EAN/UPC | 4711387890240 |
|---|---|
| MPN | 90MB1KR0-M0EAY0 |
