Networking

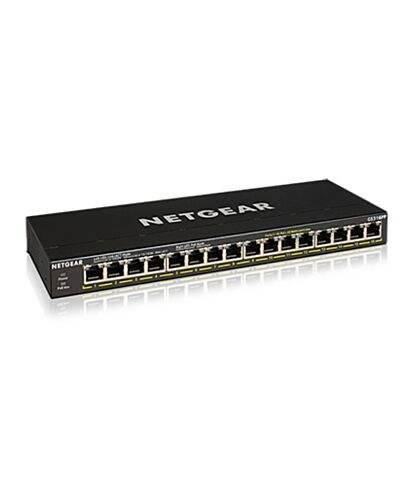

NETGEAR GS316PP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
£194.35
NETGEAR GS316PP, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Wall mountable
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches with PoE provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly.
The unmanaged switches provides power and data f a single Ethernet (CAT-5e) cable to devices such as IP cameras, VoIP/ Internet-based phones, wireless access points, etc. The majority of these els also support PoE power auto-balance and allocation feature.
NETGEAR’s unique PoE technology automatically balances the PoE power based on the device needs independent of PoE class detected. These switches deliver the power the device needs, at the most granular level.
The unmanaged switches provides power and data f a single Ethernet (CAT-5e) cable to devices such as IP cameras, VoIP/ Internet-based phones, wireless access points, etc. The majority of these els also support PoE power auto-balance and allocation feature.
NETGEAR’s unique PoE technology automatically balances the PoE power based on the device needs independent of PoE class detected. These switches deliver the power the device needs, at the most granular level.
Key Features
- ETHERNET PORT CONFIGURATION: 16 Gigabit ports
- POWER-OVER-ETHERNET: 16 PoE+ ports with 183W total power budget for high-power PoE devices
- POE POWER AUTO-BALANCE AND ALLOCATION - NETGEAR’s unique PoE technology automatically balances the PoE power at the most granular level on each port, depending on the device needs
- PLUG-AND-PLAY: Simple set up with no software to install or configuration needed
- VERSATILE MOUNTING OPTIONS: Supports desktop, wall or rackmount placement, and includes all the necessary mounting hardware in the box
- Energy-efficient technology for power savings
- Auto-MDI/MDIX eliminates the need for crossover cables
- Non-blocking switching architecture for maximum throughput at wire speed
- Auto-negotiation for automatic connection at the highest common speed between switch and an end device
Specifications
Management features
Switch type*
Unmanaged
Quality of Service (QoS) support
Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity*
16
Basic switching RJ-45 Ethernet ports type*
Gigabit Ethernet (10/100/1000)
Power connector
DC-in jack
Network
Networking standards*
IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support*
No
Full duplex
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
Auto-sensing
Yes
Auto-negotiation
Yes
Data transmission
Switching capacity*
32 Gbit/s
MAC address table*
4000 entries
Latency (1 Gbps)
3.7 µs
Jumbo frames support
Yes
Jumbo frames
9216
Packet forwarding rate (1 Gbps)
1448000 pps
Packet buffer memory
1 MB
Security
Queue scheduling algorithms
Weighted Round Robin (WRR)
Design
Rack mounting*
No
Product colour
Black
Housing material
Metal
LED indicators
Activity, Link, PoE, Power, Speed
Design
Wall mountable
Yes
Performance
Mean time between failures (MTBF)
2362192 h
Power
DC input voltage
54 V
Input current
3.7 A
Power consumption (max)
195.9 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)*
Yes
Power over Ethernet plus (PoE+) ports quantity
16
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
183 W
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 90%
Operating altitude
0 - 3000 m
Heat dissipation
669.9 BTU/h
Weight & dimensions
Width
286 mm
Depth
102 mm
Height
27 mm
Weight
880 g
Certificates
Certification
CE, FCC Part A, IC A, RCM, VCCI, BSMI, KC, CB, CE LVD
Logistics data
Harmonized System (HS) code
85176990
Additional Information
| EAN/UPC | 606449146912 |
|---|---|
| MPN | GS316PP-100EUS |
| BRAND | Netgear |
