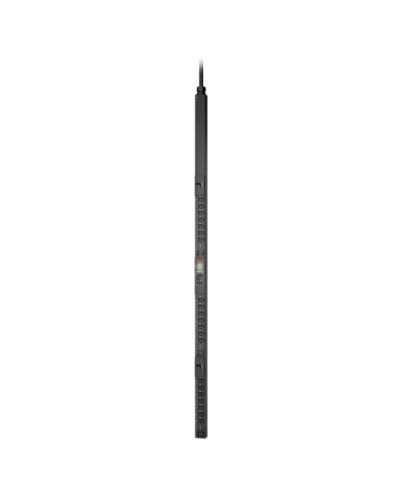

APC Rack PDU, 9000 switched, 0U, 30A, 200V and 208V, 21 C13 and C15, 3 C19 and C21 sockets
£1,286.38
APC Rack PDU, 9000 switched, 0U, 30A, 200V and 208V, 21 C13 and C15, 3 C19 and C21 sockets, Switched, 0U, Single-phase, Vertical, Black, 24 AC outlet(s)
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The APC Switched Rack PDU distributes reliable power within a rack through a single input and multiple output receptacles The APDU9941 offers advanced load management combined with remote on/off switching control of individual outlets for power cycling, delayed power sequencing, and outlet use management The 0U PDU includes a NEMA L6-30P input plug with 3 05m (10 ft) cord, (21) IEC 60320 C13/C15 and (3) IEC 60320 C19/C21 hybrid outlet receptacles The hybrid outlets allow 60°C operating temperature at full load, are compatible with standard C14 and C20 power cords, and are future-proofed for new C16 and C21 power cords required for higher temperature rated devices The Network Management Card provides enhanced cybersecurity with secured interfaces and modified password policy The rack PDU integrates with EcoStruxure IT through Network Management Card and can be accessed, configured, and managed remotely via Web, SNMP and Command Line Interface Color user-interactive LCD interface details current, real power, voltage, and energy measurements for local user access The outlet level control allows power on/off functionality for power recycling/reboot of remote equipment and restricts unauthorized use of individual outlets The Switched Rack PDU includes a temperature/humidity sensor port, locking IEC outlets when used with locking power cords, low-profile circuit breakers and USB port for local Firmware updates The rack PDU supports daisy-chain of up to 32 PDUs on a single IP address, thereby reducing networking cost The rack PDU comes with a standard three-year warranty
Specifications
Design
PDU types*
Switched
Type
Single-phase
Rack capacity*
0U
Mounting
Vertical
Product colour
Black
Ports & interfaces
AC outlets quantity*
24 AC outlet(s)
Power plug
NEMA L6-30P
AC outlet types*
C13 coupler, C15 coupler, C19 coupler, C21 coupler
Ethernet LAN (RJ-45) ports
1
Power
Nominal input voltage*
90 - 264 V
Maximum current*
30 A
Nominal output voltage
200 - 208 V
Load capacity
4992 VA
Certificates
Compliance certificates
RoHS
Certification
CUL , FCC 15 A, ICES-003, PSE
Sustainability
Sustainability compliance
Yes
Operational conditions
Operating temperature (T-T)
-5 - 60 °C
Storage temperature (T-T)
-25 - 65 °C
Operating relative humidity (H-H)
5 - 95%
Operating altitude
0 - 3048 m
Non-operating altitude
0 - 15240 m
Weight & dimensions
Width
55 mm
Depth
46 mm
Height
1829 mm
Weight
8.5 kg
Packaging content
Manual
Yes
Packaging data
Package weight
10 kg
Package width
165 mm
Package depth
124 mm
Package height
2040 mm
Additional Information
EAN/UPC | 731304356264 |
---|---|
MPN | APDU9941 |
