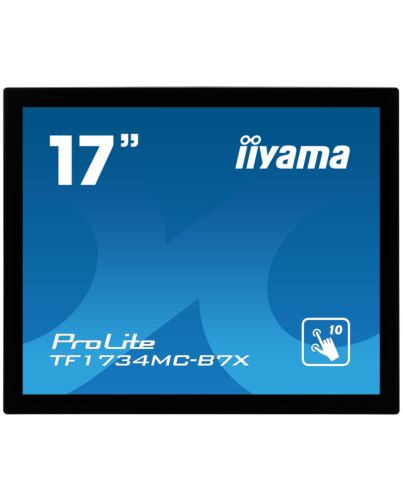

iiyama TF1734MC-B7X computer monitor 43.2 cm (17") 1280 x 1024 pixels SXGA LED Touchscreen Black
£429.96
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The ProLite TF1734MC-B7X uses 10 pt Projective Capacitive touch technology built into an eye catching bezel with edge-to-edge glass, which guarantees high durability, scratch-resistance and perfect picture performance. The screen is IP65 rated which means it is dust and water resistant f the front. Together with the Touch-Through-Glass technology which delivers a seamless and accurate touch response, this makes the monitor an ideal solution for kiosk integrators, Instore Retail and behind-glass-retail. For ease of integration, the monitor can be equipped with optional external mounting brackets ( OMK1-1 ).
Reasons To Buy

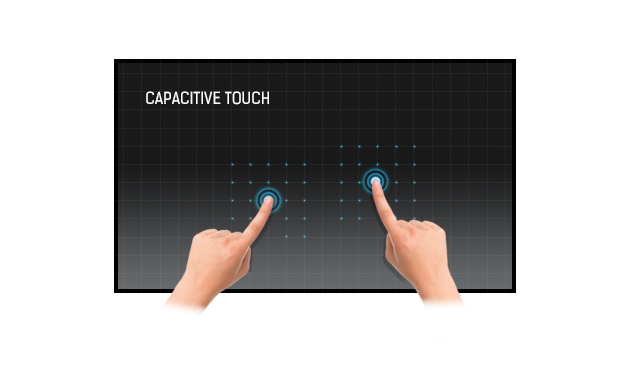

Touch technology - Capacitive
Touch Through-Glass

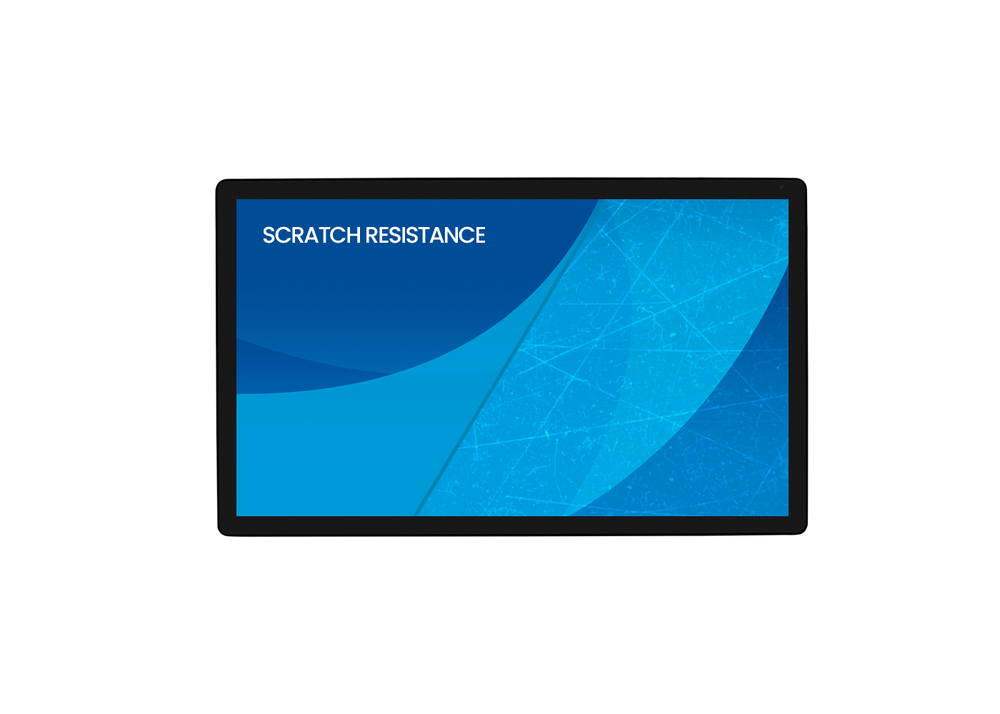

Scratch resistance
IP65
The IP code classifies and rates the degree of protection against water intrusion. IP65 means that the monitor is protected to water splashes against the enclosure f any direction.Open frame brackets
This open frame monitor can be equipped with optional external mounting brackets. It guarantees easy installation and makes it an ideal solution for kiosk integrators and In-store Retail.Specifications
Display
Display diagonal*
43.2 cm (17")
Display resolution*
1280 x 1024 pixels
HD type*
SXGA
Native aspect ratio*
5:4
Display technology*
LED
Panel type*
TN
Touchscreen*
Yes
Touchscreen technology
Projected capacitive system
Touch technology
Multi-touch
Number of simultaneous touchpoints
10
Display brightness (typical)
350 cd/m²
Display brightness
315 cd/m²
Response time*
5 ms
Screen shape*
Flat
Supported graphics resolutions
1280 x 1024 (SXGA)
Supported video es
1024p
Aspect ratio
5:4
Contrast ratio (typical)*
1000:1
Viewing angle, horizontal
170°
Viewing angle, vertical
160°
Display number of colours*
16.7 million colours
Pixel pitch
0.264 x 0.264 mm
Horizontal scan range
31.4 - 80 kHz
Viewable size, horizontal
33.8 cm
Viewable size, vertical
27.1 cm
Viewable size diagonal
43 cm
Display diagonal (metric)
43 cm
Colour depth
8 bit
Performance
NVIDIA G-SYNC*
No
AMD FreeSync*
No
Palm rejection
Yes
Multimedia
Built-in microphone
No
Built-in camera*
No
Design
Product colour*
Black
Front bezel colour
Black
Glass thickness
3 mm
Ports & interfaces
USB required
Yes
USB Touch port
Yes
USB Touch ports quantity
1
VGA (D-Sub) ports quantity
1
HDMI*
Yes
HDMI ports quantity
1
DisplayPorts quantity
1
HDCP
Yes
Ergonomics
VESA mounting*
Yes
Panel mounting interface
100 x 100 mm
On Screen Display (OSD)
Yes
On Screen Display (OSD) languages
Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Ergonomics
Number of OSD languages
7
Plug and Play
Yes
Power
Energy efficiency class (SDR)*
E
Energy efficiency class (HDR)*
Not available
Energy consumption (SDR) per 1000 hours*
11 kWh
Power consumption (typical)*
13 W
Power consumption (standby)*
0.6 W
Power consumption (off)
0.3 W
AC adapter output voltage
12 V
Power supply type
External
Energy efficiency scale
A to G
Weight & dimensions
Width (with stand)
369 mm
Depth (with stand)
47.5 mm
Height (with stand)
307 mm
Weight (with stand)
3.6 kg
Width (without stand)
369 mm
Depth (without stand)
47.5 mm
Height (without stand)
307 mm
Weight (without stand)
3.6 kg
Packaging data
Package width
455 mm
Package depth
145 mm
Package height
387 mm
Package weight
4.9 kg
Packaging content

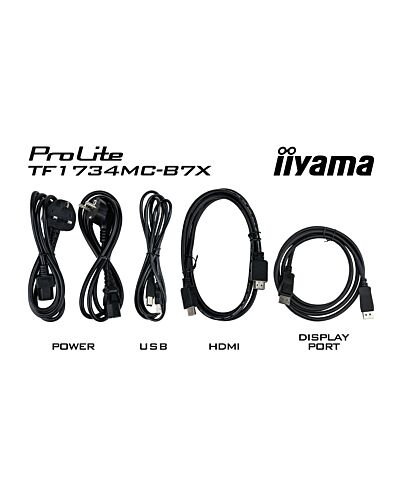

Cables included
AC, USB, HDMI, DisplayPort
Quick start guide
Yes
Sustainability
Sustainability certificates
ErP
Other features
International Protection (IP) code
IP65
Compatible operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch els, please refer to the driver instruction file available in the downloads section.
AC adapter included
Yes
Display viewable area (HxV)
338 x 270 mm
Connection to PC
Yes
Placement supported
Horizontal/Vertical
Brightness
315 cd/m²
Packaging content
AC adapter
Active display area (W x H)
338 x 270.5 mm
Weight
3.6 kg
User controls
picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display e, factory)
Touch method
stylus, finger, glove
Height
307 mm
Width
369 mm
Depth
47.5 mm
Control panel
Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power
Compliance certificates
CE, cULus, EAC, REACH, RoHS, WEEE
Certification
CE, EAC, RoHS support, ErP, WEEE, cULus, REACH
Logistics data
Harmonized System (HS) code
85285210
Additional Information
| EAN/UPC | 4948570118397 |
|---|---|
| MPN | TF1734MC-B7X |
| BRAND | Iiyama |
