Components

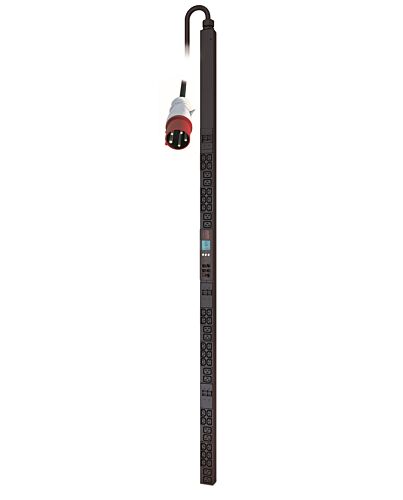

APC NetShelter Metered Rack PDU, 0U, 3PH, 22kW 230V 32A or 17.3kW 230V 24A, x30 C13 and x12 C19 outl
£2,061.19
APC NetShelter Metered Rack PDU, 0U, 3PH, 22kW 230V 32A or 17.3kW 230V 24A, x30 C13 and x12 C19 outlets, IEC 309 3P+N+PE cord, Metered, 0U, Vertical, Black, 42 AC outlet(s), C13 coupler, C19 coupler
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. The output and input connections are (30) C13 & (12) C19, and the cable length is 1.83m. User-defined alarm thresholds mitigate risk with -time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
Specifications
Design
PDU types*
Metered
Rack capacity*
0U
Mounting
Vertical
Product colour
Black
Ports & interfaces
AC outlets quantity*
42 AC outlet(s)
Power plug
IEC309
AC outlet types*
C13 coupler, C19 coupler
Output connections
30 x IEC 320 C13
12 x IEC 320 C19
Features
LED indicators
Yes
Cable length
1.83 m
Management features
Monitoring
Current, Power, Voltage
Power
Nominal input voltage*
400 V
AC input frequency
50 - 60 Hz
Maximum current*
32 A
Nominal output voltage
230 V
Load capacity
22080 VA
Maximum input current per phase
32 A
Power protection features
Overload
Maximum power
22000 W
Certificates
Compliance certificates
RoHS
Certification
EN 55022 A,EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, VCCI A, VDE
REACH: No SVHCs
Operational conditions
Operating temperature (T-T)
0 - 55 °C
Storage temperature (T-T)
-25 - 65 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Weight & dimensions
Width
56 mm
Depth
51 mm
Height
1829 mm
Weight
8.72 kg
Packaging data
Package weight
11.6 kg
Package width
170 mm
Package depth
112 mm
Package height
2050 mm
Logistics data
Total carbon footprint (kg of CO2e)
57837.86
Additional Information
| EAN/UPC | 731304289937 |
|---|---|
| MPN | AP8886 |
| BRAND | APC |
