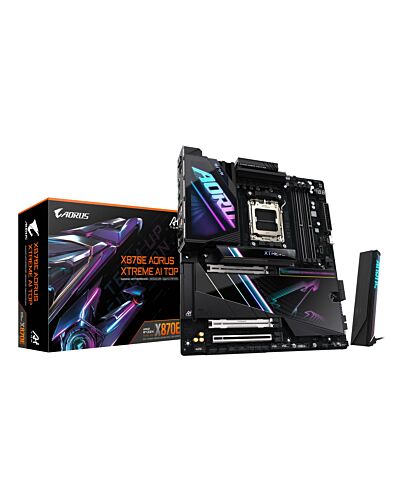

GIGABYTE X870E AORUS XTREME AI TOP Motherboard - Supports AMD Ryzen 9000 Series CPUs, 18+2+2 phases
£696.97
GIGABYTE X870E AORUS XTREME AI TOP Motherboard - Supports AMD Ryzen 9000 Series CPUs, 18+2+2 phases VRM, up to 8800MHz DDR5 (OC), 1xPCIe 5.0 M.2 + 3xPCIe 4.0 M.2, WI-FI 7, 10GbE LAN, USB 4, AMD, Socket AM5, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, Socket AM5, DDR5-SDRAM, 256 GB
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompising quality and cutting-edge
Key Features
- Training your own AI on your desk
- DDR5 OC up to 8800MT/s
- AMD Socket AM5 : Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
- Digital twin 18+2+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with AMD EXPO Memory ule Support
- DDR Wind Blade : Enhanced Active Cooling for Memory ules
- M.2 EZ-Match : Magnetic alignment for easy installation of large heatsinks
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
- Ultra-Fast Storage : 4*M.2 slots, including PCIe 5.0 / 4.0
- Efficient Thermal : VRM Thermal Armor Advanced with I/O ZONE AORUS LIGHTING & M.2 Thermal Guard XL
Specifications
Processor
Processor manufacturer*
AMD
Processor socket*
Socket AM5
Compatible processor series*
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor sockets
Socket AM5
Memory
Supported memory types*
DDR5-SDRAM
Number of memory slots*
4
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
ECC & Non-ECC
Supported memory clock speeds
8800,8600,8400,8266,8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz
Supported memory clock speed (max)
8800 MHz
Maximum internal memory*
256 GB
Unbuffered memory
Yes
Maximum internal memory per slot
64 GB
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces*
M.2, SATA III
Number of HDDs supported
4
Number of storage drives supported
8
RAID support
Yes
RAID levels
0, 1, 10
Graphics
Parallel processing technology support*
Not supported
Maximum resolution
4096 x 2160 pixels
HDCP
Yes
DirectX version
12.0
Internal I/O
USB 2.0 connectors*
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors*
2
USB 3.2 Gen 2x2 connectors
1
Number of SATA III connectors*
4
Front panel audio connector
Yes
Front panel connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of CPU fan connectors
1
Number of chassis fan connectors
8
EPS power connector (8-pin)
Yes
Number of EPS power connectors (8-pin)
2
TPM connector
Yes
Number of water pump connectors
5
RGB LED pin header
Yes
Number of RGB LED pin headers
4
Rear panel I/O ports
USB 2.0 ports quantity*
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity*
6
USB4 Gen 2x2 ports quantity
2
Ethernet LAN (RJ-45) ports*
2
HDMI ports quantity*
1
HDMI version
2.1
DisplayPort version
1.4
Line-in
Yes
Microphone in
Yes
S/PDIF out port
Yes
WiFi-AP antenna jack
2
Network
Ethernet LAN
Yes
Ethernet interface type
10 Gigabit Ethernet
LAN controller
Marvell AQtion AQC113C
Wi-Fi*
Yes
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Network
WLAN controller el
Qualcomm QCNCM865
Bluetooth
Yes
Bluetooth version
5.3
Features
Motherboard chipset*
AMD X870E
Audio chip
tek ALC1220
Audio output channels*
7.1 channels
Product colour
Black
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Component for*
PC
Motherboard form factor*
Extended ATX
Motherboard chipset family*
AMD
Power source type
ATX
Windows operating systems supported
Windows 11 x64
Expansion slots
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
2
Number of M.2 (M) slots
4
1st M.2 largest key size
25110
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
22110
2nd M.2 highest PCI Express generation
4.0
3rd M.2 largest key size
22110
3rd M.2 highest PCI Express generation
4.0
4th M.2 largest key size
22110
4th M.2 highest PCI Express generation
4.0
BIOS
BIOS type*
UEFI AMI
BIOS memory size
256 Mbit
ACPI version
5.0
Clear CMOS jumper
Yes
Clear CMOS button
Yes
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
Logistics data
Country of origin
Taiwan
Products per shipping (inner) case
1 pc(s)
Battery
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Packaging data
Package width
381 mm
Package depth
311 mm
Package height
107 mm
Package weight
4.5 kg
Weight & dimensions
Width
305 mm
Depth
269 mm
Height
35 mm
Packaging content
Batteries included
Yes
Antenna included
Yes
Screws included
Yes
Bundled software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Other features
Weight
3.76 kg
Technical details
Warranty period
3 year(s)
Additional Information
| EAN/UPC | 4719331866150 |
|---|---|
| MPN | X870E AORUS XTREME AI TOP |
| BRAND | Gigabyte |
