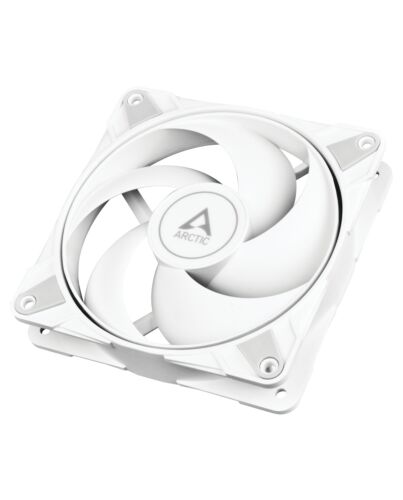

ARCTIC P12 Max Computer case Fan 12 cm White 1 pc(s)

Name: ARCTIC P12 Max Computer case Fan 12 cm White 1 pc(s)
Brand: ARCTIC
SKU: MAZ-0000029456
Price: 6.50 GBP
Availability: OutOfStock

Be the first to review this product

£6.50

ARCTIC P12 Max, Fan, 12 cm, 300 RPM, 3300 RPM, 0.6 sone, 137.69 m³/h

Out of stock

Immediately available
Discreet Packaging
Free Shipping

Product Details

Description

As experts in cooling, ARCTIC has the coolest solutions for every PC problem. We offer a comprehensive range of CPU coolers, case fans, thermal interfaces, and accessories, all with an excellent price-performance ratio. Year after year, ARCTIC products set new standards in noise minimization and performance.

Reasons To Buy

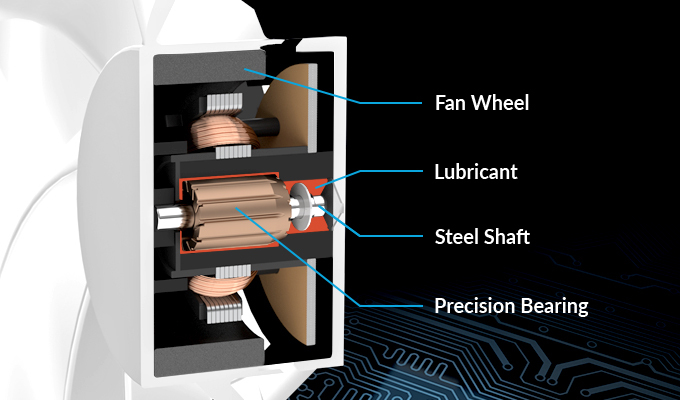

Virtually Silent due Fluid Dynamic Bearing

As a special feature, the white version of the P12 Max is equipped with ARCTIC's proven Hydrodynamic Bearing. This enables the virtually silent operation at low speeds that customers have been asking for. At maximum speed, brute performance is still guaranteed. Although theese bearings tend to wear out, ARCTIC does not compise on durability and still offers the 6-year warranty.

Extremely Wide Speed Range

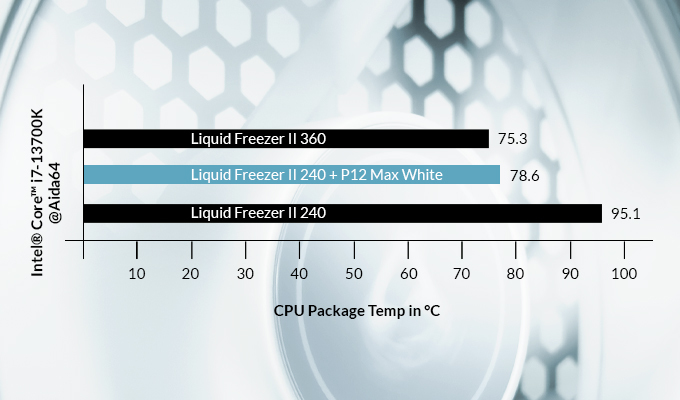

The P12 Max features the controllable speed of an impressively wide range f 200 rpm up to 3300 rpm. This enables a quiet operation when low airflow is needed and also an unprecedented level of performance on heatsinks and radiators. The P12 Max provides a significant performance boost to existing air and water cooling solutions.

Maximum Performance - Without Compises

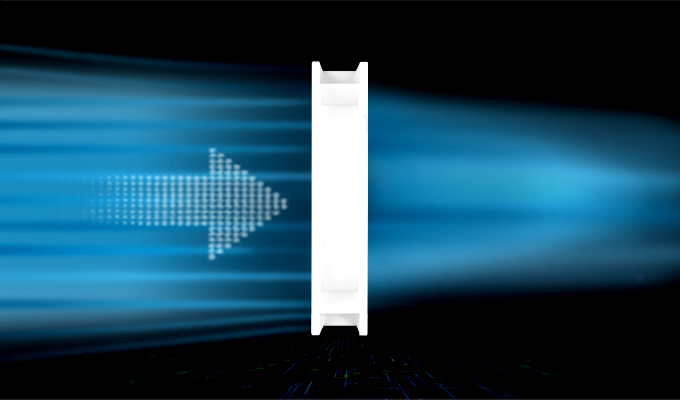

The P12 Max delivers focused airflow and high static pressure, making it suitable for all scenarios. The fan is optimised for use on radiators, heat sinks, pinholes and mesh. Therefore, the P12 Max is the ideal fan for enthusiasts and professionals who are looking for maximum performance with a long service life.

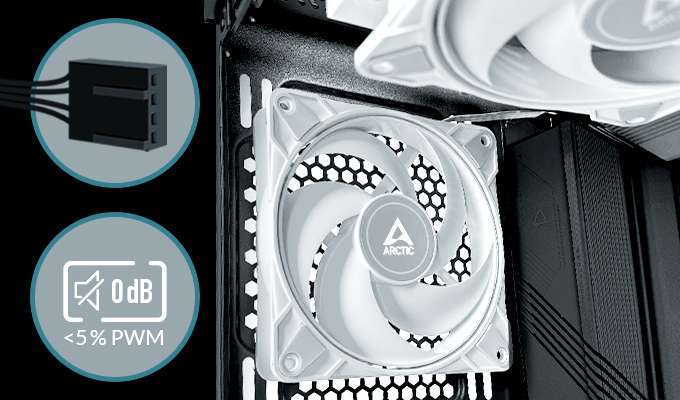

0dB e - Zero RPM

The fan speed can be throttled down to standstill via PWM. This allows silent operation in IDLE and at the same time guarantees maximum performance when required. Thus, the P12 Max allows an incomparably dynamic adjustment of the speed, so that the airflow can be perfectly regulated for every case.

Improved Stability

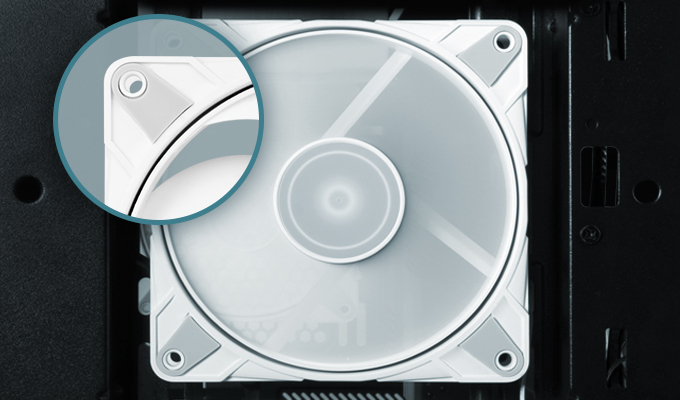

The P12 Max features a closed fan wheel design. The advantage of this fan wheel combination is a pressure stability without compise. In scenarios with high pressure resistances and higher speeds, the force effect is distributed uniformly over the entire fan wheel and enables low-vibration rotation while maintaining high static pressure.

Maximum Smoothness, Minimum Vibration

Due to a sinus-magnetizing, the new motor only creates about 5 % of the vibration f commutation of a regular DC-motor without filter. The rubber pads mounted at the corners additionally dampen the residual vibrations caused by the higher revolutions.

Specifications

Performance

Suitable location*

Computer case

Type*

Fan

Fan diameter

12 cm

Supported processor sockets

Not supported

Compatible processor series

Not supported

Rotational speed (min)

300 RPM

Rotational speed (max)

3300 RPM

Noise level

0.6 sone

Maximum airflow

81.04 cfm

Airflow

137.69 m³/h

Maximum air pressure

4.35 mmH2O

Pulse-width ulation (PWM) support

Yes

Bearing type

Fluid Dynamic Bearing (FDB)

Quantity per pack

1 pc(s)

Fan speed (min)

200 RPM

Fan speed (max)

3300 RPM

Fan static pressure

4.35 mmH2O

Fan's mean time to failure (MTTF)

500000 h

Operating temperature (T-T)

0 - 40 °C

Design

Product colour*

White

Number of fans

1 fan(s)

Number of fan blades

Fan connector

4-pin

Power

Voltage

12 V

Starting voltage

3.9 V

Maximum current

0.29 A

Fan voltage

12 V

Fan current

0.29 A

Weight & dimensions

Width

120 mm

Depth

120 mm

Height

25 mm

Weight

184 g

Fan dimensions (W x D x H)

120 x 120 x 25 mm

Fan weight

184 g

Cable length

0.4 m

Package width

127 mm

Package depth

125 mm

Package height

30 mm

Package weight

214 g

Packaging content

Package type

Box

Screws included

Yes

Number of screws

Additional Information

More Information
EAN/UPC	4895213704267
MPN	ACFAN00293A
BRAND	ARCTIC
