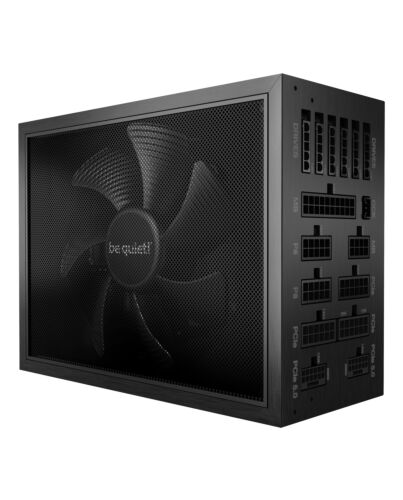

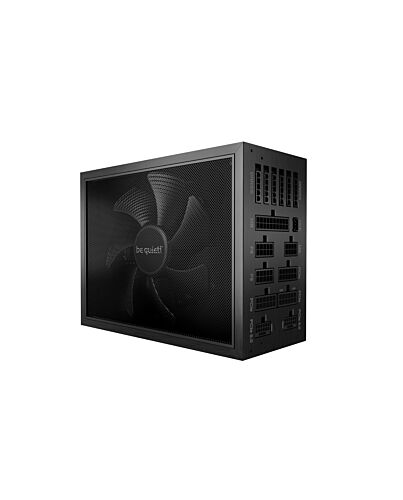

be quiet! Dark Power Pro 13 | 1300W power supply unit 20+4 pin ATX ATX Black
£313.09
be quiet! Dark Power Pro 13 | 1300W, 1300 W, 115 - 240 V, 1400 W, 50 - 60 Hz, 15 - 9 A, 150 W
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
CUTTING EDGE TECHNOLOGIES AND PERFORMANCE
The be quiet! Dark Power Pro 13 1300W offers 80 PLUS® Titanium efficiency and world-class performance due to fully digital control and a frameless fan concept. With the latest PCIe 5.0 compatibility it is predetermined as the ATX 3.0 power supply for your next-gen graphics card.
The be quiet! Dark Power Pro 13 1300W offers 80 PLUS® Titanium efficiency and world-class performance due to fully digital control and a frameless fan concept. With the latest PCIe 5.0 compatibility it is predetermined as the ATX 3.0 power supply for your next-gen graphics card.
Key Features
- 80 PLUS Titanium efficiency (up to 94.4%)
- ATX 3.0 PSU with full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connectors
- Handles massive power excursions
- Fully digital control and Active Rectifier + full bridge LLC technology for unmatched signal stability
- Improved and patented frameless Silent Wings fan for virtually inaudible operation at ordinary loads
- Full mesh PSU front with funnel-shaped air inlet
- Overclocking key switches between six 12V rails and one massive 12V rail
- Japanese 105°C capacitors ensure highest stability and reliability
- 2 PCIe 5.0 12VHPWR 600W and 6 PCIe 6+2 connectors for overclocked high-end GPUs
- Aluminum case and ular individually sleeved cables for magnificent appearance
Specifications
Power
Total power*
1300 W
Peak power
1400 W
AC input voltage*
115 - 240 V
AC input frequency
50 - 60 Hz
Input current
15 - 9 A
Power factor
0.99
Combined power (+3.3V)
150 W
Combined power (+12V)
1300 W
Combined power (+5V)
150 W
Combined power (-12V)
6 W
Combined power (+5Vsb)
17.5 W
Max output current (+3.3V)
25 A
Max output current (+12V1)
35 A
Max output current (+12V2)
35 A
Max output current (+12V3)
40 A
Max output current (+12V4)
40 A
Max output current (+5V)
25 A
Max output current (-12V)
0.5 A
Max output current (+5Vsb)
3.5 A
Hold time
18 ms
Efficiency
94.5%
Power protection features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector*
20+4 pin ATX
Motherboard power cable length
60 cm
Number of SATA power connectors
16
Number of PATA power connectors
5
SATA power cable length
500,600,750,800,900,950,1050 mm
Peripheral (Molex) power cable length
600,750,900,1050 mm
EPS power connector (8-pin)
Yes
EPS power connector (4+4 pin)
Yes
PCI Express power connectors (6+2 pin)
6
PCI Express power cable length
60 cm
CPU power cable length
70 cm
ATX power connector (20+4 pin)
Yes
PCI Express connector
Yes
Cabling type
Fully-ular
Performance
80 PLUS certification*
80 PLUS Titanium
Purpose*
PC
Power supply unit (PSU) form factor*
ATX
ATX version
3.0
EPS version
2.92
Noise level
23.2 dB
Bearing technology
FDB
Mean time between failures (MTBF)
100000 h
Design
Product colour
Black
Cooling type
Active
Fan diameter
13.5 cm
Number of fans
1 fan(s)
Packaging content
Cables included
CPU, PCIe, Peripheral (Molex), SATA
Cable tie(s) included
Yes
Certificates
Compliance certificates
CCC, CE, Federal Communications Commission (FCC), UKCA
Weight & dimensions
Width
150 mm
Depth
200 mm
Height
86 mm
Weight
2.41 kg
Packaging data
Package width
253 mm
Package depth
417 mm
Package height
152 mm
Package weight
6.8 kg
Technical details
Sustainability compliance
Yes
Logistics data
Shipping (inner) case length
44 cm
Shipping (inner) case width
32.5 cm
Shipping (inner) case height
28.3 cm
Shipping (inner) case net weight
14.4 kg
Products per shipping (inner) case
2 pc(s)
Warranty period
10 year(s)
Additional Information
| EAN/UPC | 4260052189368 |
|---|---|
| MPN | BN331 |
| BRAND | BEQUIET |
