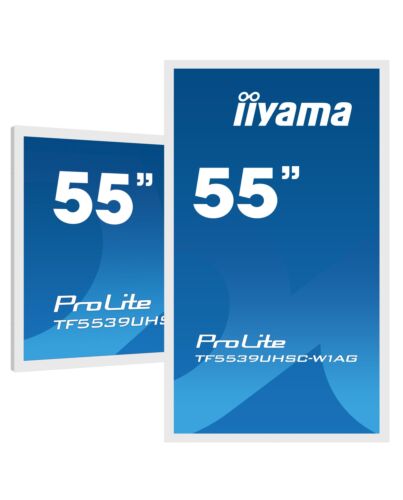

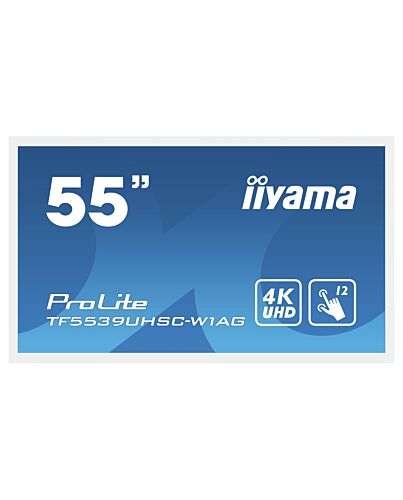

iiyama TF5539UHSC-W1AG Signage Display 139.7 cm (55") LED 500 cd/m² 4K Ultra HD White Touchscreen 24
£1,056.00
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The 4K UHD (3840x2160) Open Frame TF5539UHSC-W1AG with Touch-Through-Glass function guarantees a seamless and accurate touch response for true kiosk integration or interactive behind-glass-retail applications. The IPS panel technology offers exceptional colour performance and wide viewing angles, making it a perfect solution for interactive shop windows, education, kiosks and in-store communications. Featuring a metal housing with 60950-1 ball-drop proof, scratch-resistant and edge-to-edge glass, this display can be installed in the most demanding environments for an 24/7 usage and in different set-ups as a result of its Open Frame side mounting holes. For ease of integration, the TF5539UHSC-W1AG can be equipped with optional external mounting brackets ( OMK4-2 ) making it an ideal solution for kiosk integrators and interactive multimedia.
Reasons To Buy
IPS Technology
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.Touch Through-Glass
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, estate office, in-store for POS or restaurants.Touch technology - Capacitive
AG Coating
The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.24/7
24/7 displays are designed for a continuous operation.Specifications
Display
Panel type
IPS
Display diagonal*
139.7 cm (55")
Display technology*
LED
Display resolution*
3840 x 2160 pixels
Display brightness*
500 cd/m²
HD type*
4K Ultra HD
Touchscreen*
Yes
Touchscreen technology
Projected capacitive system
Number of simultaneous touchpoints
15
Native aspect ratio
16:9
Response time
8 ms
Contrast ratio (typical)
1100:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
16.7 million colours
Pixel pitch
0.315 x 0.315 mm
Active display area (W x H)
1212 x 683 mm
Display diagonal (metric)
139 cm
Horizontal scan range
30 - 83 kHz
Colour depth
8 bit
Native refresh rate
60 Hz
Surface hardness
7H
Glass thickness
4 mm
Ports & interfaces
HDMI ports quantity*
2
HDMI version
1.4/2.0
DisplayPorts quantity*
1
DisplayPort version
1.2
Ethernet LAN (RJ-45) ports
1
RS-232C
Yes
Audio
Built-in speaker(s)*
Yes
Number of built-in speakers
2
RMS rated power
16 W
Design
Placement supported*
Horizontal/Vertical
Product colour*
White
Screen shape
Flat
VESA mounting*
Yes
Panel mounting interface
600 x 400 mm
Bezel width (bottom)
3.32 cm
Bezel width (side)
2.97 cm
Bezel width (top)
3.32 cm
Bezel colour
White
Anti-glare screen
Yes
Performance
On Screen Display (OSD)
Yes
On Screen Display (OSD) languages
German, English, Spanish, French, Italian, Dutch, Polish, Russian
Operating hours (hours/days)
24/7
HDCP
Yes
International Protection (IP) code
IP54
Mean time between failures (MTBF)
50000 h
Power
Power consumption (typical)*
155 W
Power consumption (standby)*
0.5 W
Power consumption (off)
0.3 W
Energy efficiency class (SDR)
G
Energy efficiency class (HDR)
Not available
Power
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Weight & dimensions
Display width
1271.5 mm
Display depth
68 mm
Display height
749.4 mm
Display weight
41 kg
Width
1271.5 mm
Depth
68 mm
Height
749.4 mm
Weight
41 kg
Width (with stand)
1271.5 mm
Depth (with stand)
68 mm
Height (with stand)
749.4 mm
Weight (with stand)
41 kg
Packaging data
Package width
1400 mm
Package depth
245 mm
Package height
930 mm
Package weight
46.5 kg
Packaging content
Cables included
AC, USB, HDMI, DisplayPort
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Logistics data
Products per pallet
10 pc(s)
Harmonized System (HS) code
85285210
Network
Ethernet LAN*
Yes
Features
Wall mountable
Yes
Technical details
Audio in (mini jack)
Yes
User controls
picture (backlight, contrast, brightness, sharpness, H/V-position, phase, Cha, adjust screen, colour temp., picture e), sound (treble, bass, balance, volume, mute, speaker, audio source), screen (aspect, Touch feature, reset), settings (OSD time, OSD H/V position, language, schedule, power save, control setting, network setting, advanced, information, all reset)
Sustainability certificates
ErP
Pallet net height
124.5 cm
Pallet net length
198.6 cm
Pallet net width
142 cm
Compliance certificates
CE, cULus, EAC, REACH, RoHS, UKCA, WEEE
Other features
Maximum refresh rate
60 Hz
Quick start guide
Yes
Audio input
✓
Audio output
1
Built-in microphone
No
Digital horizontal frequency
30 - 83 kHz
Viewable size, horizontal
121.2 cm
Viewable size, vertical
68.3 cm
Height (without stand)
749.4 mm
Weight (without stand)
41 kg
Depth (without stand)
68 mm
Compatible operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch els, please refer to the driver instruction file available in the downloads section.
Power supply type
Internal
Housing material
Metal
Built-in camera
No
Additional Information
| EAN/UPC | 4948570118076 |
|---|---|
| MPN | TF5539UHSC-W1AG |
| BRAND | Iiyama |
