Components

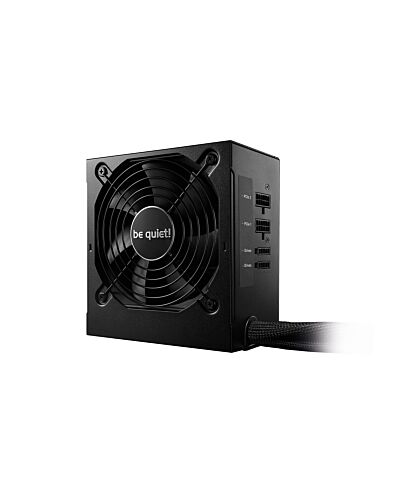

be quiet! System Power 9 | 500W CM
£48.56
be quiet! System Power 9 | 500W CM, 500 W, 200 - 240 V, 50 Hz, 4 A, Active, 110 W
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Proven Reliability and Good Efficiency
Specially designed by be quiet! with the price-conscious PC builder in mind: System Power 9 500W CM offers renowned be quiet! performance and quietness and makes it possible to build cost-effective and reliable systems.
Specially designed by be quiet! with the price-conscious PC builder in mind: System Power 9 500W CM offers renowned be quiet! performance and quietness and makes it possible to build cost-effective and reliable systems.
Key Features
- Rock-solid stability with two strong 12V-rails
- Equipped with DC-to-DC technology for tight voltage regulation
- Two PCIe connectors for multi-GPU system configurations
- Temperature-controlled 120mm fan reduces system noise
- Low stand-by drain of less than 0.15 watts
- 80 PLUS® Bronze efficiency of up to 89%
- Semi-ular, high-quality sleeved and flat cables
- All-in-one cable with S-ATA, HDD and FDD connectors
- Complete suite of top safety features
- Meets latest Intel® C6/C7, ErP and Energy Star 6.1 guidelines
- Supports latest Intel® and AMD™ processors
- Product conception, design and quality control in Germany
Reasons To Buy
VERY QUIET OPERATION
System Power 9 500W CM is equipped with a temperature-controlled 120mm fan. It provides you with the low noise operation that be quiet! is famous for, built into an entry-level system.80 PLUS BRONZE CERTIFICATION
The 80 PLUS Bronze certification is convincing evidence of this PSU’s efficient and power saving operation. It is a remarkable achievement for this class of PSU, izing an efficiency rating of up to 89%.HIGH PERFORMANCE FOR YOUR SYSTEM
System Power 9 500W CM provides stable and dependable power for CPU and GPU. It is equipped with two independent 12V-rails and supports several graphics cards with two PCI express connectors for multi-GPU systems.INNOVATIVE DC-TO-DC CONVERSION
The PSU is equipped with DC-to-DC conversion for tight voltage regulation, even under heavy cross-loading conditions. This ensures reliable operation and makes it ready for the next generation of processors and graphics cards.SEMI-ULAR CABLE MANAGEMENT
System Power 9 500W CM comes with full high-quality black sleeved cables that add a touch of class to any PC system. Thanks to the semi-ular cable management, cables that serve no purpose in the system are left out.COMPREHENSIVE PROTECTION
Top component protection with a full suite of safety functions, including OCP, OVP, OPP, OTP UVP and SCP, which provide the ultimate in secure operation.Specifications
Power
Total power*
500 W
AC input voltage*
200 - 240 V
AC input frequency
50 Hz
Input current
4 A
Power factor
0.95
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
110 W
Combined power (+12V)
456 W
Combined power (+5V)
110 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
24 A
Max output current (+12V1)
24 A
Max output current (+12V2)
20 A
Max output current (+5V)
15 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
3 A
Hold time
17 ms
Efficiency
89%
Power protection features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector*
20+4 pin ATX
Motherboard power cable length
55 cm
Number of SATA power connectors
6
Number of PATA power connectors
2
SATA power cable length
550,670 mm
PCI Express power connectors (6+2 pin)
2
PCI Express power cable length
50 cm
CPU power connector (4+4 pin)
Yes
CPU power cable length
60 cm
Floppy drive power connector
1
Cabling type
Semi-ular
Performance
80 PLUS certification*
80 PLUS Bronze
Purpose*
PC
Power supply unit (PSU) form factor*
ATX
ATX version
2.51
Bearing technology
Sleeve
Performance
Compatible products
Intel C6/C7
Design
Product colour
Black
Cooling type
Active
Fan diameter
12 cm
Number of fans
1 fan(s)
Packaging content
Cables included
PCIe, SATA
Certificates
Compliance certificates
RoHS
Certification
CE, CB, TÜV, RCM, CU
Weight & dimensions
Width
150 mm
Depth
140 mm
Height
86 mm
Weight
1.56 kg
Packaging data
Manual
Yes
Package width
97 mm
Package depth
268 mm
Package height
195 mm
Package weight
2.22 kg
Package type
Box
Technical details
Sustainability certificates
ENERGY STAR
Logistics data
Master (outer) case width
311 mm
Master (outer) case length
215 mm
Master (outer) case height
556 mm
Master (outer) case gross weight
14 kg
Harmonized System (HS) code
84733020
Products per master (outer) case
6 pc(s)
Other features
Screws included
Yes
Noise level (silent e, <30%)
9.7 dB
Noise level (quiet e, 50%)
11.5 dB
Noise level (full-load e, 100%)
24.4 dB
Additional Information
| EAN/UPC | 4260052187227 |
|---|---|
| MPN | BN301 |
| BRAND | BEQUIET |
