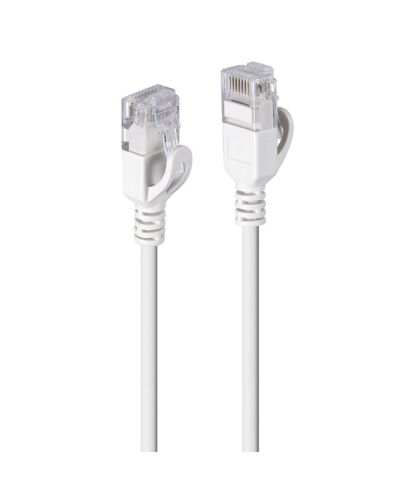

Lindy 5m Cat.6A U/UTP Ultra Slim Network Cable, Grey
£4.99
Lindy 5m Cat.6A U/UTP Ultra Slim Network Cable, Grey, 5 m, Cat6a, U/UTP (UTP), RJ-45, RJ-45, Grey
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Cat.6A U/UTP Ultra slim network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10GBase-T.
Cat 6A cable, for operating frequencies up to 500MHz, unshielded with single twisted pair (U/UTP). Designed as ultra slim cable for use in environments with restricted or limited installation space. These cables are manufactured and tested according to the /IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The very flexible and thin cable construction allows the cables to be installed in restricted or limited spaces such as server rooms or network hubs.
Available lengths: 0.3m, 1m, 1.5m, 2m, 3m, 5m.
Cat 6A cable, for operating frequencies up to 500MHz, unshielded with single twisted pair (U/UTP). Designed as ultra slim cable for use in environments with restricted or limited installation space. These cables are manufactured and tested according to the /IEC 11801 specification. The cables are packaged individually in a polybag.
The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.
The very flexible and thin cable construction allows the cables to be installed in restricted or limited spaces such as server rooms or network hubs.
Available lengths: 0.3m, 1m, 1.5m, 2m, 3m, 5m.
Key Features
- Twisted Pair Patch Cable with RJ45 connectors
- Cat.6A U/UTP, Ultra Slim
- Integrated snagless connector for latch protection
- Gold plated pins for better conductivity and elimination of signal loss
Specifications
Features
Product colour*
Grey
Cable length*
5 m
Cable standard*
Cat6a
Cable shielding*
U/UTP (UTP)
Connector 1*
RJ-45
Connector 2*
RJ-45
Connector 1 gender*
Male
Connector 2 gender*
Male
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Connector contacts plating
Nickel/Gold
Connector shielding
Yes
Connector shield material
Aluminium
Jacket material
Low smoke zero halogen (LSZH)
Conductor material
Copper
AWG wire size
28
Frequency
500 MHz
Bend radius (min)
6 cm
Operational conditions
Operating temperature (T-T)
-10 - 60 °C
Storage temperature (T-T)
-10 - 40 °C
Certificates
Compliance certificates
REACH, RoHS
Certification
RoHS, REACH, California Proposition 65
Weight & dimensions
Width
11 mm
Depth
28 mm
Height
6 mm
Outer diameter
3.6 mm
Connector 1 dimensions (WxDxH)
11 x 28 x 6 mm
Connector 2 dimensions (WxDxH)
11 x 28 x 6 mm
Packaging data
Package type
Polybag
Technical details
Sustainability compliance
Yes
Additional Information
| EAN/UPC | 4002888475860 |
|---|---|
| MPN | 47586 |
| BRAND | Lindy |
