Components

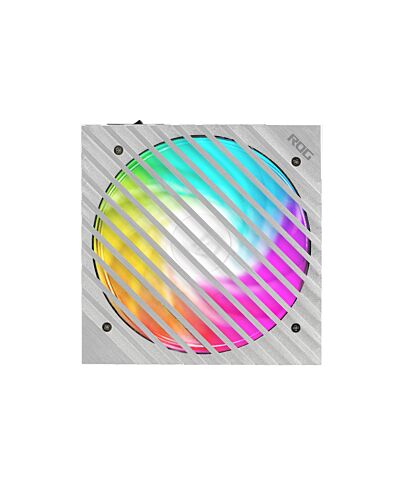

ASUS ROG Loki SFX-L 850W Platinum White power supply unit 24-pin ATX
£207.89
ASUS ROG Loki SFX-L 850W Platinum White, 850 W, 100 - 240 V, 110 W, 850 W, 110 W, 9.6 W
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The Quietest SFX-L PSU
Taking after the ROG Thor, the ROG Loki SFX-L 850W Platinum White Edition brandishes the same enthusiast-grade components and features, all packed into an SFX-L form factor. Boasting quiet operation and high performance, the Loki is primed to power your next SFF build.
COOLING
ROG Heatsinks
Cool under pressure
ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.
Axial-tech Fan Design
Better, faster, stronger
Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For ROG Loki PSUs, we've scaled that design to 120mm so it keeps things cool at low RPMs while producing less noise.
Dual Ball Fan Bearings
2x longer lifespan
The fan impeller spins on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.
0dB Technology
Quiet intelligence
To reduce noise output, the PWM-controlled fan shuts off entirely when the PSU load is 40% or below.
Lambda A Certification
Quietly deviant
On average, ROG Loki emits less than 25 dB of noise – earning a coveted Cybenetics Lambda A certification.
ENGINEERING
80 PLUS Platinum Certified
Effortless output
Low-ESR Japanese capacitors further improve efficiency and reduce heat, readying ROG Loki to reliably fuel your build for years to come.
ATX 3.0 Compatible
Step into the future
The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ROG Loki steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities to SFF rigs.
EXPERIENCE
ARGB-illuminated Fan & Aura Sync
Magical glow
The Loki's 120 mm fan features eight addressable LEDs ready to be customized with Aura Sync to create coordinated lighting patterns across your build.
* If the connector cable is not used, the default color effect is rainbow.
* To enjoy Aura Sync, you’ll need an Aura Sync-compatible ASUS or ROG motherboard. Similarly, the Smart Mode lighting effect, which reflects GPU temperature, requires use of a compatible ASUS or ROG graphics card.
10-Year Warranty
A decade of power
We're so confident about the reliability of the ROG Loki SFX-L 850W Platinum White Edition that we back it with a 10-year worldwide warranty.
*Core product operation is guaranteed for 10 years. The RGB LEDs are subject to a 3-year warranty.
Taking after the ROG Thor, the ROG Loki SFX-L 850W Platinum White Edition brandishes the same enthusiast-grade components and features, all packed into an SFX-L form factor. Boasting quiet operation and high performance, the Loki is primed to power your next SFF build.
COOLING
ROG Heatsinks
Cool under pressure
ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.
Axial-tech Fan Design
Better, faster, stronger
Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For ROG Loki PSUs, we've scaled that design to 120mm so it keeps things cool at low RPMs while producing less noise.
Dual Ball Fan Bearings
2x longer lifespan
The fan impeller spins on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.
0dB Technology
Quiet intelligence
To reduce noise output, the PWM-controlled fan shuts off entirely when the PSU load is 40% or below.
Lambda A Certification
Quietly deviant
On average, ROG Loki emits less than 25 dB of noise – earning a coveted Cybenetics Lambda A certification.
ENGINEERING
80 PLUS Platinum Certified
Effortless output
Low-ESR Japanese capacitors further improve efficiency and reduce heat, readying ROG Loki to reliably fuel your build for years to come.
ATX 3.0 Compatible
Step into the future
The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ROG Loki steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities to SFF rigs.
EXPERIENCE
ARGB-illuminated Fan & Aura Sync
Magical glow
The Loki's 120 mm fan features eight addressable LEDs ready to be customized with Aura Sync to create coordinated lighting patterns across your build.
* If the connector cable is not used, the default color effect is rainbow.
* To enjoy Aura Sync, you’ll need an Aura Sync-compatible ASUS or ROG motherboard. Similarly, the Smart Mode lighting effect, which reflects GPU temperature, requires use of a compatible ASUS or ROG graphics card.
10-Year Warranty
A decade of power
We're so confident about the reliability of the ROG Loki SFX-L 850W Platinum White Edition that we back it with a 10-year worldwide warranty.
*Core product operation is guaranteed for 10 years. The RGB LEDs are subject to a 3-year warranty.
Specifications
Power
Total power*
850 W
AC input voltage*
100 - 240 V
Combined power (+3.3V)
110 W
Combined power (+12V)
850 W
Combined power (+5V)
110 W
Combined power (-12V)
9.6 W
Combined power (+5Vsb)
12.5 W
Max output current (+3.3V)
20 A
Max output current (+12V)
70.8 A
Max output current (+5V)
20 A
Max output current (-12V)
0.8 A
Max output current (+5Vsb)
2.5 A
Power protection features
Over power, Over voltage, Overcharge, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector*
24-pin ATX
Motherboard power cable length
45 cm
Number of SATA power connectors
6
SATA power cable length
600 mm
Peripheral (Molex) power connectors (4-pin)*
4
Peripheral (Molex) power cable length
600 mm
PCI Express power connectors (8-pin)
3
PCI Express power connectors (16-pin)
1
PCI Express power cable length
45 cm
CPU power connector (4+4 pin)
Yes
CPU power cable length
55 cm
Cabling type
Fully-Modular
Performance
80 PLUS certification*
80 PLUS Platinum
Performance
Supported motherboard form factors
ATX
Purpose*
PC
Power supply unit (PSU) form factor*
SFX-L
Bearing technology
Ball bearing
Design
Product colour
White
Cooling type
Active
Fan diameter
12 cm
Number of fans
1 fan(s)
Illumination
Yes
On/off switch
Yes
Certificates
Compliance certificates
RoHS
Weight & dimensions
Width
125 mm
Depth
125 mm
Height
63.5 mm
Weight
1.81 kg
Packaging data
Package width
285 mm
Package depth
190 mm
Package height
100 mm
Package weight
2.5 kg
Package type
Box
Technical details
Sustainability compliance
Yes
Additional Information
EAN/UPC | 4711081722229 |
---|---|
MPN | 90YE00N2-B0NA00 |
