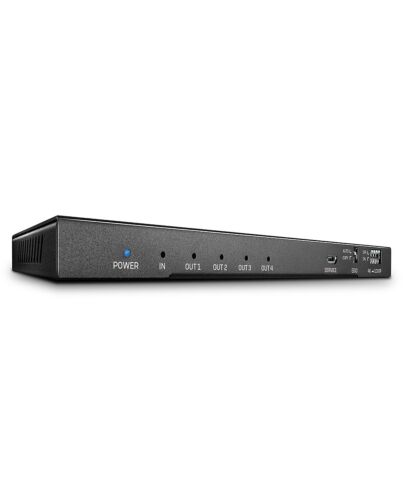

Lindy 4 Port HDMI 18G Splitter with Audio and Downscaling
£97.19
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The Lindy 4 Port HDMI 2.0 18G Splitter with Audio is a multi-function solution for distributing high quality HDMI signals across 4 displays simultaneously from one source device, while extracting digital or analogue audio separately.
With support for resolutions up to 4K 60Hz 4:4:4 8bit, this splitter is great for creating eye-catching quad display digital signage in retail scenarios, displaying sports across multiple screens in sports bars or distributing engaging multiscreen educational presentations at tradeshows. The splitter also has separate optical and 3.5mm audio ports to easily extract audio from HDMI to connect non-HDMI amplifiers or soundbars, ideal for supporting video with immersive multichannel audio.
The splitters also feature an integrated switch to downscale the input signal to Full HD, making installations with older displays hassle free while always ensuring the viewer receives the optimum picture from their display.
With support for resolutions up to 4K 60Hz 4:4:4 8bit, this splitter is great for creating eye-catching quad display digital signage in retail scenarios, displaying sports across multiple screens in sports bars or distributing engaging multiscreen educational presentations at tradeshows. The splitter also has separate optical and 3.5mm audio ports to easily extract audio from HDMI to connect non-HDMI amplifiers or soundbars, ideal for supporting video with immersive multichannel audio.
The splitters also feature an integrated switch to downscale the input signal to Full HD, making installations with older displays hassle free while always ensuring the viewer receives the optimum picture from their display.
Key Features
- Displays HDMI signals across 4 displays simultaneously from one source device
- Supports resolutions up to 4K 60Hz 4:4:4, with additional support for HDR
- Extract digital and analogue audio from HDMI for non-HDMI amplifiers
- Features a neat switch for downscaling from 4K to 1080p
- 2 year warranty
Specifications
Ports & interfaces
Video port type*
HDMI
Video out*
4x HDMI
HDMI version
2.0
Video ports quantity*
5
Audio ports quantity
2
DC-in jack
Yes
Features
Product colour
Black
Housing material
Metal
Maximum resolution*
4096 x 2160 pixels
HD type
4K Ultra HD
Maximum refresh rate
60 Hz
HDCP
Yes
LED indicators
Power
Power
Output voltage
5 V
Output current
1 A
Weight & dimensions
Width
180 mm
Weight & dimensions
Depth
14.4 mm
Height
63 mm
Packaging data
Package width
212 mm
Package depth
55 mm
Package height
148 mm
Package weight
228 g
Package type
Box
Packaging content
Manual
Yes
AC adapter included
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 90%
Logistics data
Harmonized System (HS) code
85176990
Additional Information
| EAN/UPC | 4002888382311 |
|---|---|
| MPN | 38231 |
| BRAND | Lindy |
