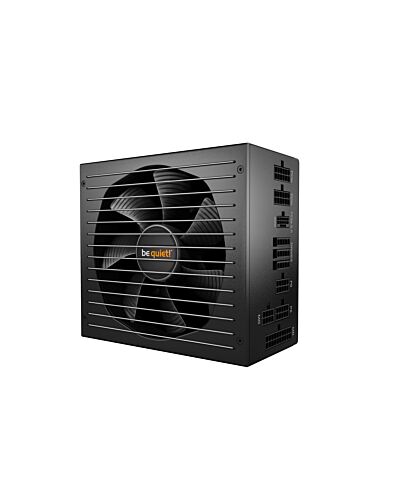

be quiet! BN337 power supply unit 850 W 20+4 pin ATX ATX Black

£144.50
be quiet! BN337, 850 W, 100 - 240 V, 920 W, 50/60 Hz, 10/5 A, 150 W
In stock
  • Immediately available
  • Discreet Packaging
  • Free Shipping

Product Details

Description

World Class Quiet and Efficiency

Straight Power 12 is a future-proof ATX 3.1 power supply with 80 PLUS® Platinum certification and virtually inaudible operation.

80 PLUS® PLATINUM
Highly efficient operation
Straight Power 12 1500W is with 80 PLUS Platinum and an energy efficiency rating of up to 93.9%. This provides lots of benefits for your high-end system, including less power consumption and an overall cooler and quieter operation.

FUTURE-PROOF YOUR SYSTEM
Fulfills all ATX 3.1 specifications
Straight Power 12 1500W is an ATX 3.1 PSU and comes with both native integration of 12V-2x6 connectors for next-generation PCIe 5.1 graphics cards, and 4 PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful systems of today and the ones to come.

THE NEW STANDARD OF POWER
For massive transient loads
Straight Power 12 offers 1500W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Straight Power 12 1500W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.

SILENT WINGS FAN
Provides virtually inaudible operation
The high-end Silent Wings fan delivers best-of-class airflow yet produces very little noise. This is thanks to its unique, optimized fan blade design along with an advanced fluid-dynamic bearing and 6-pole fan motor that largely eliminates operational noise, has a super-long life and minimal
power consumption.

FLAWLESS COOLING CONCEPT
For a longer lifespan
The funnel-shaped fan inlet of the Straight Power 12 1500W increases airflow while reducing unwanted turbulence for a higher cooling performance. The wire-free design inside allows the cool air to reach all components which ultimately leads to a longer lifespan.

STATE-OF-THE-ART TECHNOLOGIES
Rock-steady signal stability and efficiency
With full bridge LLC Straight Power 12 1500W offers advanced technologies, resulting in higher efficiency, better regulation and lower ripple noise for an incomparably stable operation.

JAPANESE 105°C CAPACITORS
A testament to high quality
Only premium components are used in Straight Power 12 1500W. That is why this PSU features exclusively high-quality Japanese capacitors. They are rated at 105°C for stability, reliability, and a long operating life.

CONVENIENCE AND CONNECTIVITY
Maximum utility
ular, sleeved cables of up to 100cm in length simplify component installation and reduce annoying clutter. This results in increased airflow and improved cooling - even in the largest PC cases.

Key Features

  • 80 PLUS Platinum efficiency (up to 94%)
  • ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors
  • Handles massive power excursions
  • Virtually inaudible Silent Wings 135mm fan
  • Funnel-shaped fan opening on PSU case for high airflow intake
  • Full bridge LLC technology for unmatched signal stability
  • One massive high-performance 12V-rail
  • Japanese 105°C capacitors ensure highest stability and reliability
  • Wire-free DC side inside the PSU for enhanced cooling and longevity
  • ular cable management for maximum convenience
  • One PCIe 5.1 12V-2x6 600W and 4 PCIe 6+2 connectors for overclocked high-end GPUs

Specifications

Power

Total power*
850 W
Peak power
920 W
AC input voltage*
100 - 240 V
AC input frequency
50/60 Hz
Input current
10/5 A
Power factor
0.99
Combined power (+3.3V)
150 W
Combined power (+12V)
849.6 W
Combined power (+5V)
150 W
Max output current (+3.3V)
25 A
Max output current (+12V1)
70.8 A
Max output current (+5V)
25 A
Max output current (-12V)
0.5 A
Max output current (+5Vsb)
3 A
Hold time
19.2 ms
Efficiency
92.3%
Power protection features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector*
20+4 pin ATX
Motherboard power cable length
60 cm
Number of SATA power connectors
9
Number of PATA power connectors
2
SATA power cable length
550,700,850,1000 mm
Peripheral (Molex) power cable length
1000,850 mm
EPS power connector (8-pin)
Yes
EPS power connector (4+4 pin)
Yes
PCI Express power connectors (6+2 pin)
4
PCI Express power connectors (16-pin)
1
PCI Express power cable length
60 cm
CPU power cable length
70 cm
Cabling type
Fully-ular

Performance

80 PLUS certification*
80 PLUS Platinum
Supported motherboard form factors
ATX, micro ATX, Mini-ATX
Purpose*
PC
Power supply unit (PSU) form factor*
ATX
ATX version
3.1
EPS version
2.92
Noise level
22.1 dB

Performance

Bearing technology
FDB
Mean time between failures (MTBF)
100000 h

Design

Product colour
Black
Cooling type
Active
Fan diameter
13.5 cm
Number of fans
1 fan(s)
Fan speed
0 - 2100 RPM
On/off switch
Yes

Operational conditions

Operating temperature (T-T)
0 - 40 °C

Packaging content

Cables included
CPU, SATA
Cable tie(s) included
Yes

Certificates

Compliance certificates
RoHS, Federal Communications Commission (FCC), UKCA, WEEE, CE

Weight & dimensions

Width
150 mm
Depth
160 mm
Height
86 mm
Weight
1.81 kg

Packaging data

Package width
248 mm
Package depth
328 mm
Package height
102 mm
Package weight
3.52 kg
Package type
Box

Technical details

Sustainability compliance
Yes
Sustainability certificates
Triman, ENERGY STAR, ErP

Logistics data

Shipping (inner) case length
65.1 cm
Shipping (inner) case width
28.2 cm
Shipping (inner) case height
34.6 cm
Shipping (inner) case net weight
22.7 kg
Products per shipping (inner) case
6 pc(s)
Warranty period
10 year(s)

Additional Information

More Information
EAN/UPC 4260052189429
MPN BN337
BRAND BEQUIET
