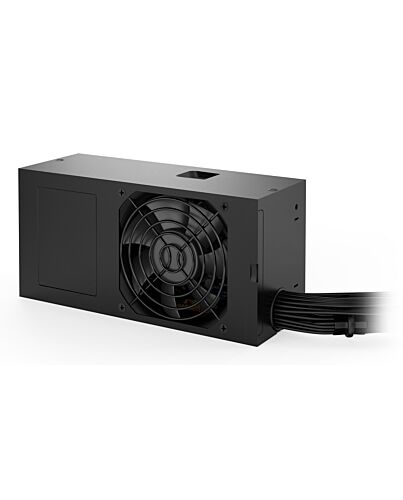

be quiet! TFX POWER 3 300W Bronze power supply unit 20+4 pin ATX Black
£42.53
be quiet! TFX POWER 3 300W Bronze, 300 W, 100 - 240 V, 350 W, 50 - 60 Hz, 4/1.5 A, 4 A
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
TFX Power 3 300W Bronze, the advanced be quiet! compact PSU gives you more for your mini or media PC. It supports the latest standards while providing solid voltages and enough power to support a PCIe graphics card. The combination of quiet operation and reliability make the TFX Power 3 300W Bronze the perfect choice for PCs with TFX form factor.
80 PLUS® BRONZE CERTIFICATION
Efficient operation
The 80 PLUS Bronze certification of TFX Power 3 300W Bronze with an efficiency rating of up to 88.3% is convincing evidence of this PSU’s power saving operation.
STRONG SINGLE 12V RAIL
For maximum power
The 12V rail design supports high stability as the CPU receives its power through an independent rail. For demanding peripherals like a graphics card, a PCIe connector is included. This makes the TFX Power 3 300W Bronze the ideal PSU for all who strive for enough power to support small systems at low noise.
QUIET AND SAFE
Optimized for low-noise operation
The temperature-controlled fan ensures a quiet operation and produces little wasted heat. Since TFX Power 3 300W Bronze meets the latest safety requirements, it defends the PC system against overcurrents, over- and undervoltage, short circuit, overloads and comparable failures.
80 PLUS® BRONZE CERTIFICATION
Efficient operation
The 80 PLUS Bronze certification of TFX Power 3 300W Bronze with an efficiency rating of up to 88.3% is convincing evidence of this PSU’s power saving operation.
STRONG SINGLE 12V RAIL
For maximum power
The 12V rail design supports high stability as the CPU receives its power through an independent rail. For demanding peripherals like a graphics card, a PCIe connector is included. This makes the TFX Power 3 300W Bronze the ideal PSU for all who strive for enough power to support small systems at low noise.
QUIET AND SAFE
Optimized for low-noise operation
The temperature-controlled fan ensures a quiet operation and produces little wasted heat. Since TFX Power 3 300W Bronze meets the latest safety requirements, it defends the PC system against overcurrents, over- and undervoltage, short circuit, overloads and comparable failures.
Key Features
- 80 PLUS® Bronze efficiency (up to 88.3%) for power saving operation
- Strong 12V-rail and PCIe graphics support
- 300W of continuous power
- High-quality temperature-controlled 80mm fan for low-noise operation of max. 29.1dB(A)
- Sleeved or flat black cables up to 60cm long
- Meets the latest safety and efficiency requirements
- ern safety protections reliably defend against numerous failures
- Standby draw less than 0.14 watts
- Product conception, design and quality control in Germany
Specifications
Power
Total power*
300 W
Peak power
350 W
AC input voltage*
100 - 240 V
AC input frequency
50 - 60 Hz
Input current
4/1.5 A
Maximum input current (@110V)
4 A
Maximum input current (@220V)
1.5 A
Power factor
0.96
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
85 W
Combined power (+12V)
300 W
Combined power (+5V)
85 W
Max output current (+3.3V)
16 A
Max output current (+12V1)
25 A
Max output current (+5V)
16 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
2.5 A
Hold time
22 ms
Efficiency
86.4%
Power protection features
Over current, Over power, Over voltage, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector*
20+4 pin ATX
Motherboard power cable length
35 cm
Number of SATA power connectors
3
SATA power cable length
300,450,600 mm
Peripheral (Molex) power connectors (4-pin)*
2
Peripheral (Molex) power cable length
300,450 mm
PCI Express power connectors (6+2 pin)
1
PCI Express power cable length
40 cm
CPU P4 connector (4-pin)
1
CPU power cable length
35 cm
Floppy drive power connector
1
Floppy disk drive cable length
60 cm
Cabling type
Non-ular
Performance
80 PLUS certification*
80 PLUS Bronze
Purpose*
PC
Performance
Power supply unit (PSU) form factor*
TFX
ATX version
2.52
EPS version
2.92
Noise level
29.1 dB
Bearing technology
Rifle
Mean time between failures (MTBF)
100000 h
Design
Product colour
Black
Cooling type
Active
Fan diameter
8 cm
Number of fans
1 fan(s)
Certificates
Compliance certificates
RoHS, WEEE
Safety regulation & standards
Safety
CE, CB, TÜV, CU
Weight & dimensions
Width
85 mm
Depth
175 mm
Height
65 mm
Weight
900 g
Packaging data
Package width
159 mm
Package depth
80 mm
Package height
215 mm
Package weight
1.24 kg
Package type
Box
Technical details
Sustainability compliance
Yes
Sustainability certificates
ENERGY STAR, ErP
Logistics data
Shipping (inner) case length
47.4 cm
Shipping (inner) case width
27.5 cm
Shipping (inner) case height
19.5 cm
Products per shipping (inner) case
6 pc(s)
Shipping (inner) case gross weight
8.25 kg
Harmonized System (HS) code
84733020
Additional Information
| EAN/UPC | 4260052188286 |
|---|---|
| MPN | BN322 |
| BRAND | BEQUIET |
