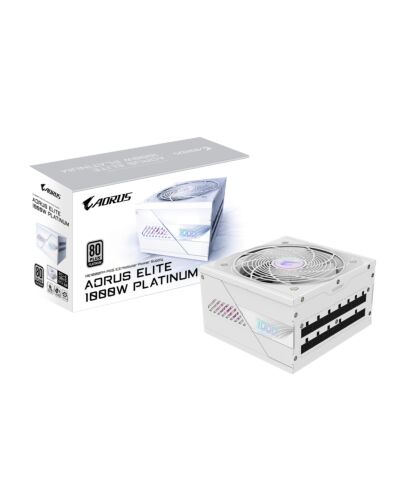

GIGABYTE AORUS ELITE P1000W ICE Power Supply Unit - PCIe 5.0, 80 PLUS Platinum, Fully modular design, 120mm Fan, ATX 3.0 compatible, UK Plug
£138.94
GIGABYTE AORUS ELITE P1000W ICE Power Supply Unit - PCIe 5.0, 80 PLUS Platinum, Fully modular design, 120mm Fan, ATX 3.0 compatible, UK Plug, 1000 W, 100 - 240 V, 50/60 Hz, 15 - 6.5 A, Active, 125 W
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.
Key Features
- ATX 3.0 and PCIe Gen 5.0 ready (compatible with ATX 3.1)
- 80 PLUS Platinum certified
- 100% Japanese capacitors
- 120mm smart Fluid Dynamic Bearing (FDB) fan
- Compact design
- Fully modular design
- Powerful single +12V rail
- OVP/OPP/SCP/UVP/OCP/OTP protection
Specifications
Power
Total power*
1000 W
AC input voltage*
100 - 240 V
AC input frequency
50/60 Hz
Input current
15 - 6.5 A
Power factor
0.9
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
125 W
Combined power (+12V)
999.6 W
Combined power (+5V)
125 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
25 A
Max output current (+12V)
83.3 A
Max output current (+5V)
25 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
3 A
Hold time
16 ms
Efficiency
92%
Power Good signal delay range
100 - 150 ms
Power protection features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector*
20+4 pin ATX
Motherboard power cable length
65 cm
Number of SATA power connectors
6
Peripheral (Molex) power connectors (4-pin)*
4
PCI Express power connectors (6+2 pin)
6
CPU power connector (4+4 pin)
Yes
ATX power connector (20+4 pin)
Yes
Floppy drive power connector
2
Floppy disk drive connector
Yes
Ports & interfaces
PCI Express connector
Yes
Cabling type
Fully-Modular
Performance
80 PLUS certification*
80 PLUS Platinum
Purpose*
PC
Power supply unit (PSU) form factor*
ATX
ATX version
3.1
Bearing technology
Ball bearing
Mean time between failures (MTBF)
100000 h
Design
Product colour
White
Cooling type
Active
Fan diameter
12 cm
Number of fans
1 fan(s)
Fan location
Top
On/off switch
Yes
Weight & dimensions
Width
150 mm
Depth
140 mm
Height
86 mm
Weight
3.1 kg
Packaging data
Package width
340 mm
Package depth
206 mm
Package height
120 mm
Package weight
3.73 kg
Package type
Box
Logistics data
Warranty period
10 year(s)
Additional Information
| EAN/UPC | 4719331554699 |
|---|---|
| MPN | GP-AE1000PM PG5 ICE |
| BRAND | Gigabyte |
