Components

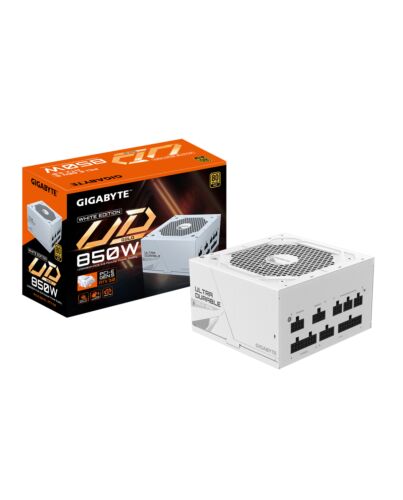

GIGABYTE UD850GM PG5W Power Supply - PCIe 5.0, 80 PLUS Gold, Fully ular Design, 120mm Fan, ATX 3.0 c
£96.43
GIGABYTE UD850GM PG5W Power Supply - PCIe 5.0, 80 PLUS Gold, Fully ular Design, 120mm Fan, ATX 3.0 compatible, UK Plug, 850 W, 100 - 240 V, 50/60 Hz, 12 A, Active, 105 W
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.
Key Features
- Ultra Durable: Main Japanese capacitors, enhanced thermal solution, 120mm smart hydraulic bearing (HYB) fan, OVP/OPP/SCP/UVP/OCP/OTP protection
- Support PCIe Gen 5.0 graphics cards
- Support Intel ATX 3.0 standard
- 80 PLUS Gold
- Fully ular design
- Compact design
Specifications
Power
Total power*
850 W
AC input voltage*
100 - 240 V
AC input frequency
50/60 Hz
Input current
12 A
Power factor
0.9
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
105 W
Combined power (+12V)
80 W
Combined power (+5V)
105 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
20 A
Max output current (+12V)
0.3 A
Max output current (+5V)
20 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
3 A
Hold time
16 ms
Efficiency
90%
Power Good signal delay range
100 - 150 ms
Power protection features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector*
20+4 pin ATX
Motherboard power cable length
61 cm
Number of SATA power connectors
8
SATA power cable length
150,600 mm
Peripheral (Molex) power connectors (4-pin)*
2
EPS power connector (4+4 pin)
Yes
PCI Express power connectors (6+2 pin)
4
PCI Express power connectors (16-pin)
1
PCI Express power cable length
60 cm
CPU power connector (4+4 pin)
Yes
CPU power cable length
60 cm
ATX power connector (20+4 pin)
Yes
Ports & interfaces
Floppy drive power connector
1
Floppy disk drive connector
Yes
Cabling type
Fully-ular
Performance
80 PLUS certification*
80 PLUS Gold
Purpose*
PC
Power supply unit (PSU) form factor*
ATX
ATX version
3.0
Bearing technology
HYB
Mean time between failures (MTBF)
100000 h
Design
Product colour
White
Cooling type
Active
Fan diameter
12 cm
Number of fans
1 fan(s)
Fan location
Top
On/off switch
Yes
Packaging content
Cables included
CPU, PCIe, Peripheral (Molex), SATA
Weight & dimensions
Width
150 mm
Depth
140 mm
Height
86 mm
Weight
4.17 kg
Packaging data
Package width
254 mm
Package depth
206 mm
Package height
117 mm
Package weight
4.5 kg
Package type
Box
Logistics data
Warranty period
5 year(s)
Additional Information
| EAN/UPC | 4719331553517 |
|---|---|
| MPN | GP-UD850GM PG5W |
| BRAND | Gigabyte |
