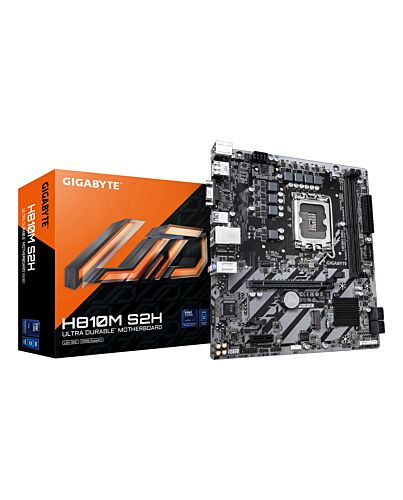

GIGABYTE H810M S2H Motherboard - Intel Core Ultra (Series 2) CPUs, 4+1+2 Phases VRM, up to 6400MHz D
£88.03
GIGABYTE H810M S2H Motherboard - Intel Core Ultra (Series 2) CPUs, 4+1+2 Phases VRM, up to 6400MHz DDR5, 1xPCIe 4.0 M.2, 1GbE LAN, USB 3.2 Gen 1, Intel, LGA 1851 (Socket V1), Intel Core Ultra (Series 2), LGA 1851, DDR5-SDRAM, 128 GB
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompising quality and cutting-edge
Key Features
- Supports Intel Core Ultra processors (Series 2)
- Hybrid 4+1+2 phases VRM solution
- EZ-Latch: PCIe x16 Slot with Quick Release Design
- Friendly UI: Multi-Theme and Q-Flash Auto Scan in BIOS and SW
- Next Generation Storage: PCIe 4.0 x4 M.2 Connectors
- Fast Networking: GbE LAN
- Extended Connectivity: DisplayPort, HDMI
Specifications
Processor
Processor manufacturer*
Intel
Processor socket*
LGA 1851 (Socket V1)
Compatible processor series*
Intel Core Ultra (Series 2)
Supported processor sockets
LGA 1851
Memory
Supported memory types*
DDR5-SDRAM
Number of memory slots*
2
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
ECC & Non-ECC
Supported memory clock speeds
5600,6400 MHz
Supported memory clock speed (max)
6400 MHz
Maximum internal memory*
128 GB
Unbuffered memory
Yes
Maximum internal memory per slot
64 GB
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces*
M.2, PCI Express 4.0, SATA III
Number of HDDs supported
4
Number of storage drives supported
5
RAID support
Yes
RAID levels
0, 1, 5, 10
Graphics
Parallel processing technology support*
Not supported
Maximum resolution
4096 x 2160 pixels
HDCP
Yes
DirectX version
12.0
Internal I/O
USB 2.0 connectors*
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors*
2
Number of SATA III connectors*
4
S/PDIF out connector
Yes
Front panel audio connector
Yes
Front panel connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of CPU fan connectors
1
Number of chassis fan connectors
2
EPS power connector (8-pin)
Yes
Number of EPS power connectors (8-pin)
1
TPM connector
Yes
Serial port headers
1
RGB LED pin header
Yes
Number of RGB LED pin headers
2
Rear panel I/O ports
USB 2.0 ports quantity*
5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity*
1
Ethernet LAN (RJ-45) ports*
1
PS/2 ports quantity
1
VGA (D-Sub) ports quantity*
1
HDMI ports quantity*
1
HDMI version
2.1
DisplayPorts quantity
1
DisplayPort version
2.1
Headphone outputs
1
Line-in
Yes
Microphone in
Yes
Network
Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
LAN controller
tek RTL8111H
Wi-Fi*
No
Features
Motherboard chipset*
Intel H810
Audio chip
tek ALC897
Audio output channels*
7.1 channels
Product colour
Dark brown
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Component for*
PC
Motherboard form factor*
micro ATX
Motherboard chipset family*
Intel
Cooling type
Passive
Power source type
ATX
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Expansion slots
PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
Number of M.2 (M) slots
1
1st M.2 largest key size
2280
1st M.2 highest PCI Express generation
4.0
BIOS
BIOS type*
UEFI AMI
BIOS memory size
256 Mbit
ACPI version
5.0
Clear CMOS jumper
Yes
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
Logistics data
Products per shipping (inner) case
1 pc(s)
Battery
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Packaging data
Package width
265 mm
Package depth
265 mm
Package height
54 mm
Package weight
872 g
Weight & dimensions
Width
244 mm
Depth
215 mm
Height
35 mm
Packaging content
Batteries included
Yes
Screws included
Yes
Bundled software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Other features
Weight
790 g
Technical details
Warranty period
3 year(s)
Additional Information
| EAN/UPC | 4719331869168 |
|---|---|
| MPN | H810M S2H |
| BRAND | Gigabyte |
