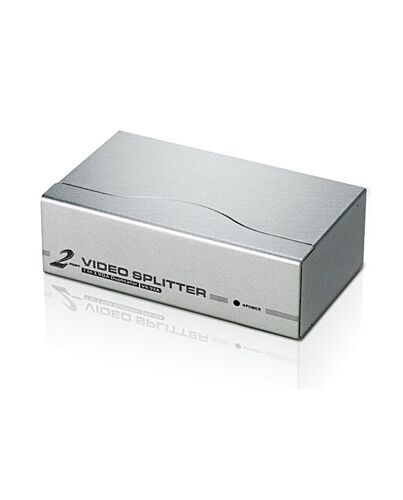

ATEN 2-Port VGA Video Splitter (350 MHz)
£27.80
ATEN 2-Port VGA Video Splitter (350 MHz), VGA, 2x VGA, 1920 x 1440 pixels, Silver, Metal, 30 m
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The VS92A is a video splitter that not only duplicates the video signal f any VGA, XGA, SVGA, UXGA, or multisync monitor to two outputs, but also boosts the video signal over a distance of up to 30 meters. Cascadable to support up to 8 displays, and offering bandwidth up to 350 MHz, the VS92A is ideal for broadcasting and enhancing video information to the public, monitoring your work environments f safe locations, or offering superior video for company or classroom training.
Key Features
- One video input to 2 video outputs
- Cascadable to 3 levels - provides up to 8 video signals
- Supports 350 MHz bandwidth
- Long-distance transmission - up to 30 m
- Superior video quality - 1920 x 1440@60Hz
- DDC, DDC2, DDC2B Compatible (Port 1 only)
- Supports VGA, XGA, SVGA, UXGA,WUXGA and multisync monitors
- All metal casing
Specifications
Ports & interfaces
Video port type*
VGA
Video out*
2x VGA
Video ports quantity*
3
DC-in jack
Yes
Features
Product colour
Silver
Housing material
Metal
Maximum resolution*
1920 x 1440 pixels
Maximum operating distance
30 m
Maximum refresh rate
60 Hz
Bandwidth
350 MHz
LED indicators
Power
Power
AC input voltage
9 V
Power consumption (typical)
1.15 W
Weight & dimensions
Width
75.1 mm
Depth
130 mm
Height
44 mm
Weight
481 g
Packaging data
Quantity per pack
1 pc(s)
Package width
59 mm
Package depth
239 mm
Package height
160 mm
Package weight
631 g
Packaging content
Manual
Yes
AC adapter included
Yes
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%
Logistics data
Master (outer) case net weight
9.62 kg
Harmonized System (HS) code
85176990
Master (outer) case width
315 mm
Master (outer) case length
490 mm
Master (outer) case height
338 mm
Master (outer) case gross weight
13.2 kg
Products per master (outer) case
20 pc(s)
Additional Information
| EAN/UPC | 4710423770928 |
|---|---|
| MPN | VS92A-AT-E |
| BRAND | ATEN |
