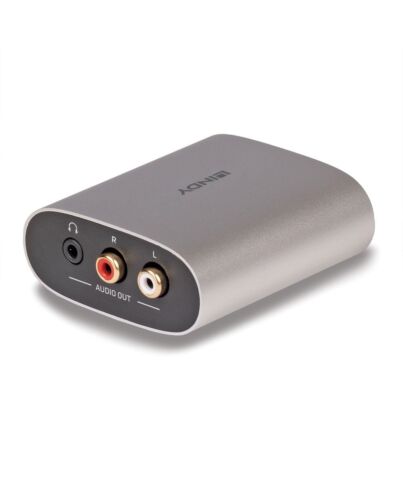

Lindy HDMI ARC Audio Extractor
£39.72
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The Lindy HDMI ARC Audio Extractor is an effective solution for extracting audio from a HDMI display to analogue audio devices.
The extractor supports high quality 4096x2160@30Hz resolutions with additional pass-through support for CEC, to allow source devices to be controlled from a TV control, and HDCP 1.4, this is ideal for use with source devices such as set top boxes, games consoles and Blu-Ray Players.
This audio extractor allows output to HDMI and analogue via L/R connections, ensuring seamless compatibility with an amplifier, sound bar or 2-channel speaker setup. With support for multi-channel audio including DTS: HD and Dolby Digital 5.1, this device will ensure an impressive three-dimensional surround sound performance to compliment films, games and music when connected to an audio device. The 3.5mm analogue connection ensures 2-channel speaker set ups can also be connected to the extractor, perfect for use with PC monitors which may require separate speakers.
The extractor supports high quality 4096x2160@30Hz resolutions with additional pass-through support for CEC, to allow source devices to be controlled from a TV control, and HDCP 1.4, this is ideal for use with source devices such as set top boxes, games consoles and Blu-Ray Players.
This audio extractor allows output to HDMI and analogue via L/R connections, ensuring seamless compatibility with an amplifier, sound bar or 2-channel speaker setup. With support for multi-channel audio including DTS: HD and Dolby Digital 5.1, this device will ensure an impressive three-dimensional surround sound performance to compliment films, games and music when connected to an audio device. The 3.5mm analogue connection ensures 2-channel speaker set ups can also be connected to the extractor, perfect for use with PC monitors which may require separate speakers.
Key Features
- ARC Enabled: Extract audio signal from ARC (Audio Return Channel) enabled HDTV to analogue stereo output, for audio receiver/amplifier/headphones
- Support PCM 2.0, Dolby 5.1, DTS 5.1 audio downmix to 2 channel stereo audio output
- CEC Pass Through
- 2 Year Warranty
Specifications
Inputs
USB connector type
Micro-USB
HDMI in
1
Outputs
Audio (L/R) out*
1
Headphone out
Yes
Technical details
Frequency range
20 - 20000 Hz
Chipset
SPHE8107S
HDMI version
1.4
CEC pass-through
Yes
Output impedance
100 Ω
Supported sample rates
192 kHz
Product colour
Silver
Housing material
Plastic
Sustainability compliance
Yes
Warranty period
2 year(s)
Signal-to-Noise Ratio (SNR)
101 dB
Compliance certificates
CE, Federal Communications Commission (FCC), REACH, RoHS
Certification
California Proposition 65
Power
Power consumption
500 mA
Power
Input voltage
5 V
Weight & dimensions
Width
70 mm
Depth
65 mm
Height
27 mm
Weight
81 g
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
20 - 90%
Packaging data
Quantity
1
Cables included
USB Type-A to Micro-USB Type-B
Manual
Yes
Package width
146 mm
Package depth
105 mm
Package height
65 mm
Package weight
174 g
Package type
Box
Additional Information
| EAN/UPC | 4002888383639 |
|---|---|
| MPN | 38363 |
