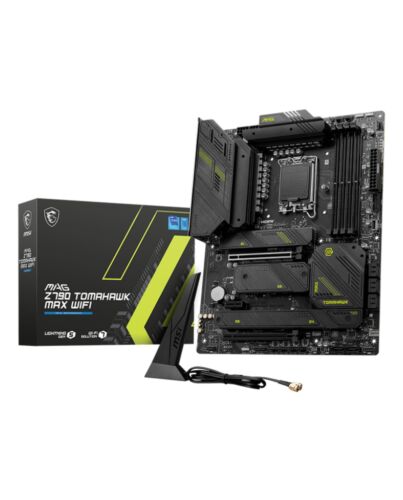

MSI Z790 TOMAHAWK MAX WIFI Intel Z790 LGA 1700 ATX
£237.36
MSI Z790 TOMAHAWK MAX WIFI, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, LGA 1700, DDR5-SDRAM, 128 GB
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
MAG Z790 TOMAHAWK MAX WIFI is designed for gamers, providing a stable, solid, and durable foundation for their PC builds. Coming up with Wi-Fi 7 solution, 2.5G LAN, DDR5, PCIe 5.0 solutions, and exclusive M.2 Shield Frozr, it's ready for Intel® 14th Gen and 13th Gen Core processors.
TOOL-FREE M.2 INSTALLATION
Industrial first Magnetic with patented Screwless M.2 Shield Frozr & EZ M.2 Clip provide the easiest way for M.2 Installation.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.
M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad &Additional Choke Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
FAST AND FUTURE-READY STORAGE
MSI MAG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
THE ISOLATED ANALOGY STRUCTURE FOR AUDIO CONNECTORS
To provide clear voice, MSI develops a unique structure – Isolated Analogy Structure. The external metal framework of the audio connectors is separated from the internal layout, which ensures the sound quality crisp.
TOOL-FREE M.2 INSTALLATION
Industrial first Magnetic with patented Screwless M.2 Shield Frozr & EZ M.2 Clip provide the easiest way for M.2 Installation.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.
M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad &Additional Choke Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
FAST AND FUTURE-READY STORAGE
MSI MAG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
THE ISOLATED ANALOGY STRUCTURE FOR AUDIO CONNECTORS
To provide clear voice, MSI develops a unique structure – Isolated Analogy Structure. The external metal framework of the audio connectors is separated from the internal layout, which ensures the sound quality crisp.
Key Features
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR5 Memory, up to 7800+(OC) MHz
- Enhanced Power Design: 16+1+1 Mirrored Power Arrangement, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2, USB 3.2 Gen 2x2
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
Specifications
Processor
Processor manufacturer*
Intel
Processor socket*
LGA 1700
Compatible processor series*
Intel® Celeron®, Intel® Pentium® Gold
Supported processor sockets
LGA 1700
Memory
Supported memory types*
DDR5-SDRAM
Number of memory slots*
4
Memory channels
Dual-channel
ECC сompatibility
Non-ECC
Supported memory clock speeds
4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz
Supported memory clock speed (max)
5333 MHz
Maximum internal memory*
128 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces*
M.2, PCI Express
Internal storage capacity
10 GB
RAID support
Yes
RAID levels
0, 5, 10
Graphics
Parallel processing technology support*
Not supported
Internal I/O
USB 2.0 connectors*
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors*
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors*
1
Number of SATA III connectors*
8
Front panel audio connector
Yes
Front panel connector
Yes
CPU fan connector
Yes
Chassis intrusion connector
Yes
TPM connector
Yes
RGB LED pin header
Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity*
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity*
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity*
1
Rear panel I/O ports
USB 3.2 Gen 2x2 Type-C ports quantity
1
Ethernet LAN (RJ-45) ports*
1
HDMI ports quantity*
1
HDMI version
2.1
DisplayPorts quantity
1
DisplayPort version
1.4
S/PDIF out port
Yes
Network
Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Wi-Fi*
Yes
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth
Yes
Bluetooth version
5.3
Features
Motherboard chipset*
Intel Z790
Audio output channels*
7.1 channels
Product colour
Black
Component for*
PC
Motherboard form factor*
ATX
Motherboard chipset family*
Intel
Cooling type
Passive
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Expansion slots
Number of M.2 (M) slots
4
BIOS
BIOS type*
EFI AMI
BIOS memory size
256 Mbit
Weight & dimensions
Width
243.8 mm
Depth
304.8 mm
Packaging content
Cables included
SATA
Additional Information
| EAN/UPC | 4711377132855 |
|---|---|
| MPN | MAG Z790 TOMAHAWK MAX WIFI |
