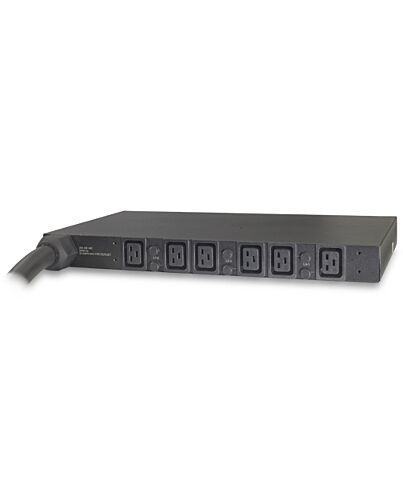

APC Basic Rack 14.4kW power distribution unit (PDU) Black
£728.98
APC Basic Rack 14.4kW, Black, Hubbell CS8365C, (6) IEC 320 C19, 2.44 m, 208 V, 50 - 60 Hz
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
-High Power Density.
-Horizontal mounting capability.
-Rack-Mountable: Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
-Single input power source: Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
-Wide range of input and output connections: Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
-Horizontal mounting capability.
-Rack-Mountable: Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
-Single input power source: Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
-Wide range of input and output connections: Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Specifications
Design
Product colour
Black
Ports & interfaces
Input connection type
Hubbell CS8365C
Output connections
(6) IEC 320 C19
Features
Cable length
2.44 m
Power
Nominal input voltage*
208 V
AC input frequency
50 - 60 Hz
Maximum input current per phase
50 A
Maximum total current draw per phase
40 A
Operational conditions
Operating temperature (T-T)
-5 - 45 °C
Storage temperature (T-T)
-25 - 65 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%
Weight & dimensions
Width
437 mm
Depth
254 mm
Height
44 mm
Weight
7.98 kg
Additional Information
| EAN/UPC | 731304232674 |
|---|---|
| MPN | AP7516 |
