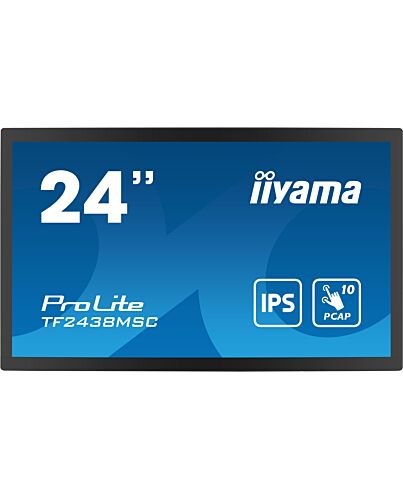

iiyama TF2438MSC-B1 computer monitor 60.5 cm (23.8") 1920 x 1080 pixels Full HD LED Touchscreen Blac
£483.07
Out of stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
The Full HD (1920x1080) Open Frame monitor ProLite TF2438MSC-B1 with IPS panel technology offers exceptional colors and wide viewing angles. The Optical Bonded Projective Capacitive (PCAP) 10-point touch technology ensures a seamless and accurate touch response and a lower light reflection, in addition, the display is protected against humidity and potential moisture development. A robust metal housing and a scratch-resistant 7H edge-to-edge glass with anti-fingerprint coating make the monitor particularly suitable for integration in demanding environments. The monitor meets also a IPX1 protection rating, making it waterproof for a period of time against dripping water. The ProLite TF2438MSC-B1 can be used in landscape, portrait and face-up orientation. A perfect solution for kiosk systems, retail and interactive digital signage installations.
Key Features
- OPTICAL BONDED PCAP
- OPEN FRAME LFD
- IPS TECHNOLOGY

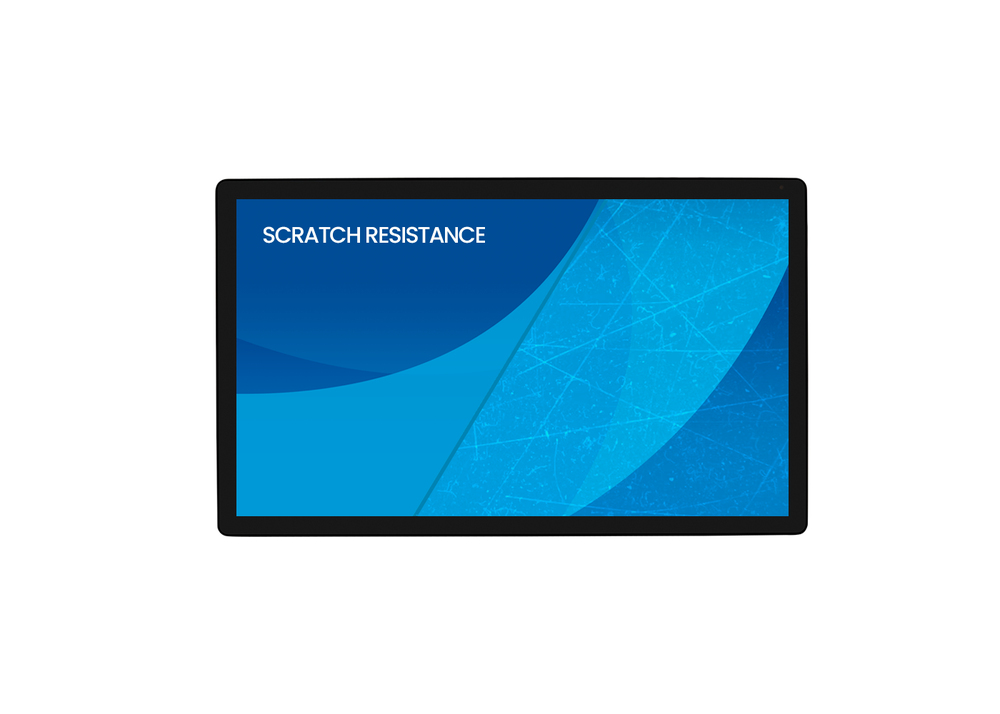

- SCRATCH RESISTANCE
- SPEAKERS
Reasons To Buy
Optical bonded PCAP
The optical bonded projective capacitive (PCAP) touch technology reduces the air gap between the touch layer and the display making the touch response more accurate. It improves also the visual quality by reducing reflections and glare. In addition the display is protected against dust and potential moisture development.IPS Technology

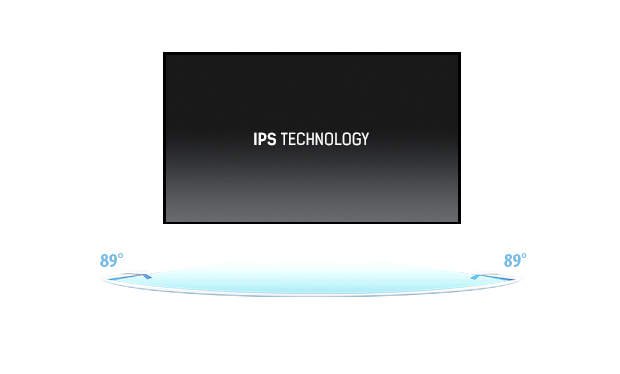

IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.Open frame LFD

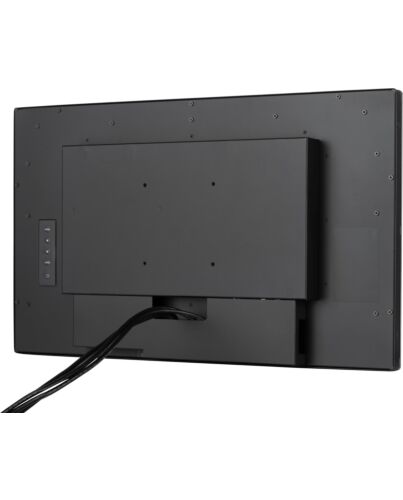

Open frame monitors feature special mounting screw holes on all sides of the monitor that can be used for installing the monitor. Open Frame monitors are an ideal solution for kiosk integrators and Instore Retail.Scratch resistance
Speakers
This LED monitor is equipped with two high quality stereo speakers.Specifications
Display
Display diagonal*
60.5 cm (23.8")
Display resolution*
1920 x 1080 pixels
HD type*
Full HD
Native aspect ratio*
16:9
Display technology*
LED
Panel type*
IPS
Touchscreen*
Yes
Touchscreen technology
Projected capacitive system
Number of simultaneous touchpoints
10
Display brightness (typical)
600 cd/m²
Display brightness
525 cd/m²
Response time*
5 ms
Response time measurement type
GTG (Gray to Gray)
Contrast ratio (typical)*
1000:1
Maximum refresh rate*
60 Hz
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours*
16.7 million colours
Pixel pitch
0.275 x 0.275 mm
Horizontal scan range
30 - 83 kHz
Viewable size, horizontal
52.7 cm
Viewable size, vertical
29.6 cm
Display diagonal (metric)
60.5 cm
Surface hardness
7H
Performance
Flicker-free technology
Yes
Low Blue Light technology
Yes
Multimedia
Number of speakers
2
RMS rated power
4 W
Built-in speaker(s)*
Yes
Design
Product colour*
Black
Front bezel colour
Black
Glass thickness
3.6 mm
Ports & interfaces
USB version
3.2 Gen 1 (3.1 Gen 1)
Built-in USB hub*
Yes
USB hub version
3.2 Gen 1 (3.1 Gen 1)
Number of downstream ports
2
USB Touch port
Yes
DVI port
No
HDMI ports quantity
1
DisplayPorts quantity
1
HDCP
Yes
Network
Wi-Fi
No
Ethernet LAN
No
Ergonomics
VESA mounting*
Yes
Panel mounting interface
100 x 100 mm
Cable management
Yes
Ergonomics
On Screen Display (OSD)
Yes
On Screen Display (OSD) languages
Traditional Chinese, German, English, French, Japanese, Dutch, Polish, Russian
Power
Energy efficiency class (SDR)*
E
Energy efficiency class (HDR)*
Not available
Power consumption (typical)*
22 W
Power consumption (standby)*
0.8 W
Power consumption (off)
0.3 W
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power supply type
Internal
Weight & dimensions
Width (with stand)
561.5 mm
Depth (with stand)
47.5 mm
Height (with stand)
337 mm
Weight (with stand)
6.5 kg
Bezel width (side)
1.73 cm
Bezel width (top)
2.03 cm
Bezel width (bottom)
2.03 cm
Packaging data
Package width
635 mm
Package depth
115 mm
Package height
409 mm
Package weight
8.1 kg
USB cable length
1.5 m
Packaging content
Cables included
AC, USB, HDMI
Quick start guide
Yes
HDMI cable length
1.5 m
Power cable length
1.8 m
Sustainability
Sustainability certificates
ErP
Other features
International Protection (IP) code
IP1X
Compatible operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch els, please refer to the driver instruction file available in the downloads section.
Placement supported
Indoor
Brightness
525 cd/m²
Built-in processor
No
Active display area (W x H)
527 x 296.5 mm
USB ports quantity
2
Weight
6.5 kg
Height
337 mm
User controls
Picture adjust (brightness, contrast, i-Style color, adv. contrast, ECO e, OD, X-Res), color settings (gamma, RGB range, color. temp.), image settings (video e adjust, blue light reducer, sharp & soft), OSD (H. pos., V. pos., time, background, rotate, language, display information), extra (reset, DDC/CI, signal select, volume, mute, led, opening logo, touch switch)
Touch method
stylus, finger, glove (latex)
Width
561.5 mm
Depth
47.5 mm
Control panel
Menu, Scroll up/ Eco, Scroll down/ Volume, Enter/ Input select, Power
Compliance certificates
CE, cTUVus, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Mean time between failures (MTBF)
50000 h
Certification
CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Additional Information
| EAN/UPC | 4948570121113 |
|---|---|
| MPN | TF2438MSC-B1 |
| BRAND | Iiyama |
