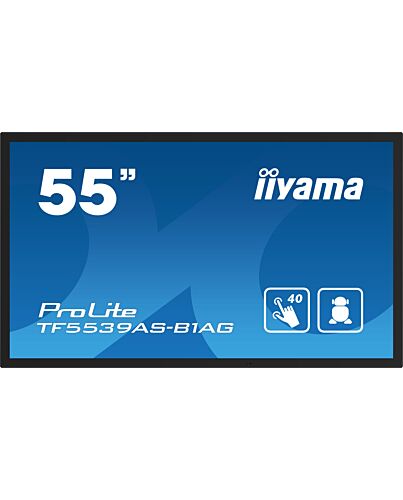

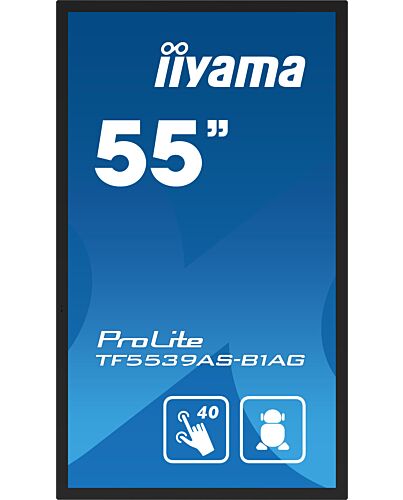

iiyama TF5539AS-B1AG Signage Display Kiosk design 138.7 cm (54.6") LED 435 cd/m² 4K Ultra HD Black T
£2,096.16
In stock
- Immediately available
- Discreet Packaging
- Free Shipping
Product Details
Description
Enjoy an all-in-one interactive display that combines the best in PCAP Touchscreen technology, offering the versatility and freedom of Android OS, easily customized to your needs by installing applications directly to it. Offering a powerful, yet flexible user experience, fostering creative communication with the benefits of a secure and controllable Touchscreen. The refined edge-to-edge glass design of the TF5539AS-B1AG lends itself for integration into a large variety of environments where polished design and functionality are needed, like Huddle spaces in the ern office space, Retail shops and Kiosks. The on-board iiSignage² CMS (Content Management System) gives you total control of your messaging and advertising, remotely and safely. The EShare App enables you to bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wireless easier than ever before. For ease of integration, the TF5539AS-B1AG can be equipped with optional external mounting brackets ( OMK4-2 ).
Reasons To Buy
Android OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.iiSignage²
iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.Signal FailOver
FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.Touch Through-Glass
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, estate office, in-store for POS or restaurants.Retail Instalations
The interactive 4K Touchscreens are the key for immersive interactive experiences for spatial retail design. Allow customers to explore your website right there and then or engage with a range of creative or experiential applications you want to host. The flexibility of either landscape or portrait es with 24/7 Operation, built-in Android and MediaPlayer make this SERIES displays one of the most adaptable Touchscreens solutions around.Huddle Spaces
Turn these small meeting rooms into neat Collaboration spaces by employing the embedded applications like Android OS, EShare and Whiteboard, a selection of intuitive and practical tools installed on our PCAP interactive Touchscreens. With Android OS you can easily customize the display by installing applications directly to it. With the EShare app you can share, stream and edit content f any device directly on screen and transform your team meetings into an easy, fast and seamless interactive session.Specifications
Display
Panel type
IPS
LED backlight
Yes
Display diagonal*
138.7 cm (54.6")
Display technology*
LED
Display resolution*
3840 x 2160 pixels
Display brightness*
435 cd/m²
HD type*
4K Ultra HD
Touchscreen*
Yes
Touchscreen technology
Projected capacitive system
Number of simultaneous touchpoints
40
Multi-touch
Yes
Native aspect ratio
16:9
Response time
8 ms
Contrast ratio (typical)
1200:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
Display number of colours
1.07 billion colours
Pixel pitch
0.315 x 0.315 mm
Active display area (W x H)
1209.6 x 680.4 mm
Display diagonal (metric)
139 cm
Horizontal scan range
28 - 160 kHz
Native refresh rate
60 Hz
Haze rate
25%
Surface hardness
7H
Glass thickness
4 mm
Ports & interfaces
HDMI ports quantity*
2
HDMI version
2.0
DVI port*
No
DisplayPorts quantity*
1
DisplayPort version
1.2
USB port*
Yes
USB ports quantity
2
USB connector type
USB Type-A, USB Type-B
USB 2.0 Type-B ports quantity
1
Ethernet LAN (RJ-45) ports
1
RS-232C
Yes
Audio
Built-in speaker(s)*
Yes
Number of built-in speakers
2
RMS rated power
20 W
Design
Product design*
Kiosk design
Placement supported*
Indoor
Orientation
Horizontal/Vertical
Product colour*
Black
Screen shape
Flat
VESA mounting*
Yes
Panel mounting interface
400 x 400 mm
Bezel width (bottom)
3 cm
Bezel width (side)
3 cm
Bezel width (top)
3 cm
Bezel colour
Black
Anti-glare screen
Yes
Performance
Purpose*
Universal
On Screen Display (OSD)
Yes
Number of OSD languages
13
On Screen Display (OSD) languages
Czech, Danish, German, English, Spanish, Finnish, French, Italian, Norwegian, Dutch, Polish, Russian, Swedish
Operating hours (hours/days)
24/7
HDCP
Yes
International Protection (IP) code
IP65
HDCP version
2.2
Mean time between failures (MTBF)
50000 h
Power
Power consumption (typical)*
139 W
Power consumption (standby)*
0.4 W
Power consumption (off)
0.3 W
Energy efficiency class (SDR)
F
Energy efficiency class (HDR)
Not available
Energy consumption (SDR) per 1000 hours
78 kWh
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Energy efficiency scale
A to G
Computer system
Computer system*
Yes
Built-in processor*
Yes
Processor manufacturer
ARM
Processor architecture
ARM Cortex-A73
Internal memory
4 GB
On-board graphics card el
ARM Mali-G52
Internal storage capacity
32 GB
Operating system installed
Android 11
Operating system version
11
Weight & dimensions
Display width
1274 mm
Display depth
65.2 mm
Display height
744.8 mm
Display weight
39.6 kg
Width
1274 mm
Depth
65.2 mm
Height
744.8 mm
Weight
39.6 kg
Width (with stand)
1274 mm
Depth (with stand)
65.2 mm
Height (with stand)
744.8 mm
Weight (with stand)
39.6 kg
Packaging data
Package width
1428 mm
Package depth
185 mm
Package height
894 mm
Package volume
47200 cm³
Package weight
47.2 kg
Packaging content
Remote control included
Yes
Batteries included
Yes
Cables included
AC, USB, HDMI
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Certificates
Certification
TCO , CB, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH
Network
Ethernet LAN*
Yes
Technical details
User controls
picture (brightness, contrast, sharpness, back level, tint, colour, noise reduction, gamma selection, low blue light, colour temp., colour control, overscan, picture reset), screen (zoom e, custom zoom, screen reset), audio (balance, treble, bass, volume, audio out (line out), max. volume, min. volume, mute, audio reset, audio out sync, speaker setting), configuration 1 (Android launcher, switch on state, Touch lock, Touch e, mouse e, panel saving, RS232 routing, boot on source, WOL, conf.1 reset, factory reset), configuration 2 (OSD timeout, OSD H position, OSD V position, system rotation, info OSD, logo and animation, logo setting, animation setting, monitor ID, monitor info, HDMI version, conf. 2 reset), advanced options (kiosk e, side bar, no signal image, motorized stand, IR control, power LED light, fan, off timer, schedule, HDMI with one wire, HDMI with one wire off, failover, language, OSD transparency, power saving, advanced options reset)
Sustainability certificates
ErP
Compliance certificates
CB, CE, cTUVus, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE
Other features
Maximum refresh rate
60 Hz
Quick start guide
Yes
Viewable size, horizontal
121 cm
Viewable size, vertical
68 cm
Brightness
435 cd/m²
Display surface
Matt
Compatible operating systems
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch els, please refer to the driver instruction file available in the downloads section.
Power supply type
Internal
Additional Information
| EAN/UPC | 4948570123896 |
|---|---|
| MPN | TF5539AS-B1AG |
| BRAND | Iiyama |
